Yamaha MT 10 User Manual

Periodic maintenance and adjustment
8-25
1
2
3
4
5
6
7
8
9
10
11
12
4. If the drive chain slack is incorrect,
adjust it as follows. NOTICE: Im-
proper drive chain slack will
overload the engine as well as
other vital parts of the motorcy-
cle and can lead to chain slip-
page or breakage. To prevent
this from occurring, keep the
drive chain slack within the
specified limits.
[ECA10572]
EAU74260
To adjust the drive chain slack
Consult a Yamaha dealer before ad-
justing the drive chain slack.
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
2. To tighten the drive chain, turn the
drive chain slack adjusting bolt on
each side of the swingarm in direc-
tion (a). To loosen the drive chain,
turn the adjusting bolt on each side
of the swingarm in direction (b),
and then push the rear wheel for-
ward.
TIP
Using the alignment marks on each
side of the swingarm, make sure that
both drive chain pullers are in the same
position for proper wheel alignment.
3. Tighten the axle nut, then the lock-
nuts to their specified torques.
4. Make sure that the drive chain pull-
ers are in the same position, the
drive chain slack is correct, and
the drive chain moves smoothly.

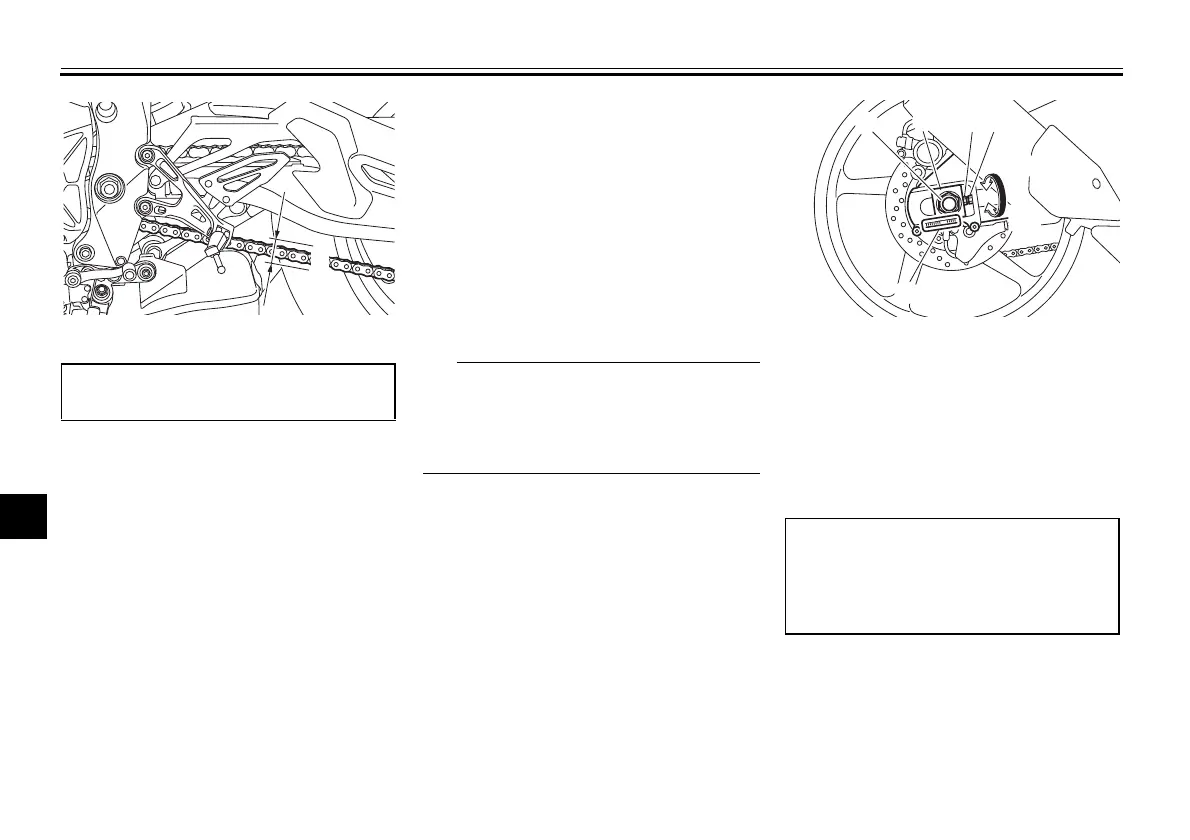

1. Drive chain slack
Drive chain slack:
20.0–30.0 mm (0.79–1.18 in)
1
1. Axle nut
2. Drive chain puller
3. Drive chain slack adjusting bolt
4. Locknut
5. Alignment marks
Tightening torques:
Axle nut:
190 N·m (19 kgf·m, 137 lb·ft)
Locknut:
16 N·m (1.6 kgf·m, 12 lb·ft)
1
2
3
4
5
(a)
(b)
BW8-9-20_1.book 25 ページ ２０１６年１２月１３日 火曜日 午前１１時１８分

Yamaha MT 10 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	998cc
Bore x Stroke	79.0 mm x 50.9 mm
Compression Ratio	12.0 : 1
Maximum Power	118.0 kW (160.4 PS) @ 11, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Tyre	120/70 ZR17 M/C (58W)
Rear Tyre	190/55 ZR17 M/C (75W)
Overall Length	2, 095 mm
Overall Width	800 mm
Overall Height	1, 110 mm
Seat Height	825 mm
Wheelbase	1, 405 mm
Minimum Ground Clearance	135 mm
Wet Weight	210 kg
Fuel Tank Capacity	17 litres
Maximum Torque	111 Nm (11.3 kg-m) @ 9, 000 rpm
Rear Suspension	Swingarm
Front Brake	Dual hydraulic disc
Rear Brake	Hydraulic disc
Frame	Aluminum Deltabox
