Yamaha MT09 2020 User Manual

Instrument and control functions
5-7
1
2
3
4
5
6
7
8
9
10
11
12
Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
NOTICE
ECA10032
Do not operate the engine in the ta-
chometer red zone.
Red zone: 11250 r/min and above
Clock
The clock uses a 12-hour time system.
When the key is not in the “ON” posi-
tion, the clock can be viewed by push-
ing the “SELECT” button.
To set the clock
1. Turn the key to “ON”.
2. Push the “SELECT” button and the
“RESET” button for two seconds.
3. When the hour digits start flashing,
use the “RESET” button to set the
hours.
4. Push the “SELECT” button, and
the minute digits will start flashing.
5. Use the “RESET” button to set the
minutes.
6. Push the “SELECT” button to con-
firm the settings and start the
clock.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear from
“F” (full) towards “E” (empty) as the fuel
level decreases. When the last seg-
ment starts flashing, refuel as soon as
possible.
TIP
If a problem is detected in the electrical
circuit, the fuel level segments and “ ”
will flash repeatedly. If this occurs, have

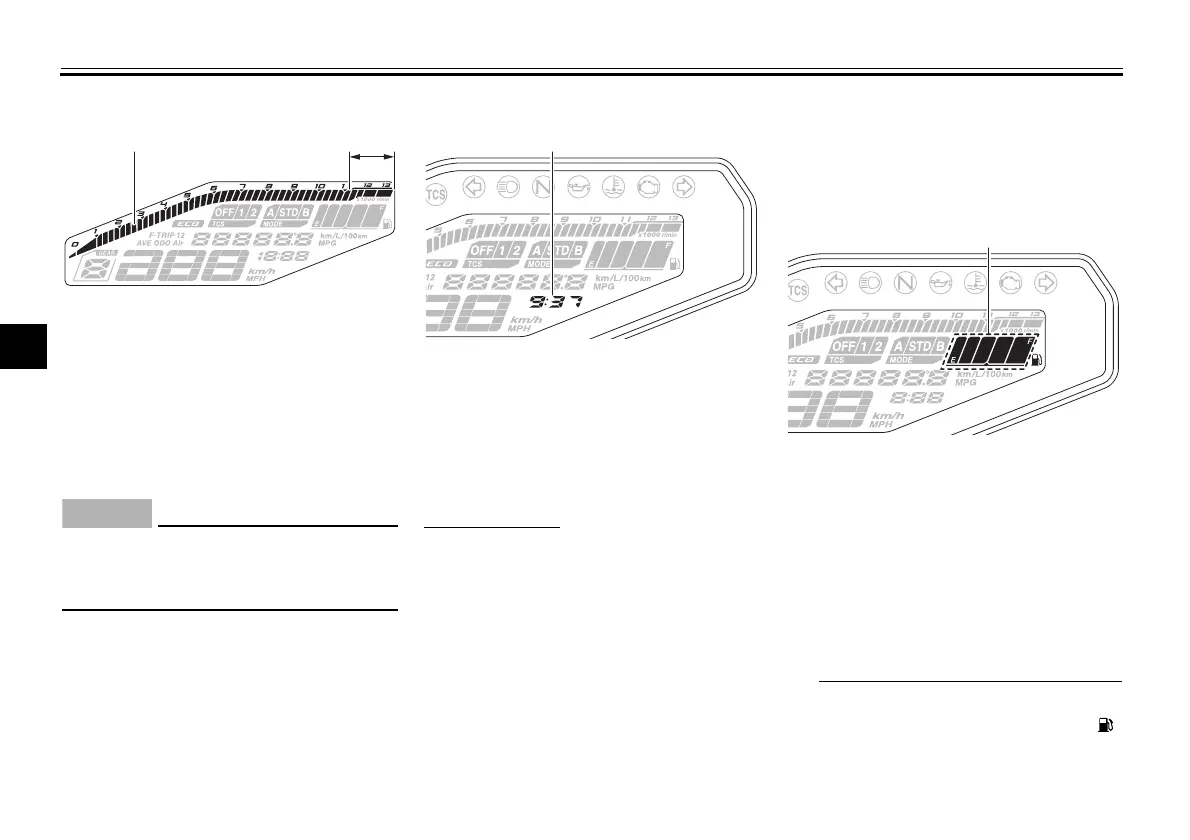

1. Tachometer
2. Tachometer red zone
21
1. Clock
1
1. Fuel meter
1
BS2-9-13.book 7 ページ ２０１９年７月２５日 木曜日 午前１１時１分

Yamaha MT09 2020 Specifications

General

Bore x Stroke	78.0 mm x 59.1 mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition System	TCI: Transistor Controlled Ignition
Final Drive	Chain
Front Suspension	Telescopic fork
Front Tire	120/70ZR17M/C (58W)
Rear Tire	180/55ZR17M/C (73W)
Overall Width	815 mm
Fuel Capacity	14 L
Wet Weight	193 kg
Starter System	Electric
Frame	Diamond
Ground Clearance	135 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, 3-cylinder
Transmission	6-speed
Rear Suspension	Swingarm
Front Brakes	Hydraulic dual disc
Rear Brakes	Hydraulic disc
Overall Length	2075 mm
Overall Height	1120 mm
Wheelbase	1440 mm
Maximum Power	115 PS (84.6 kW) @ 10, 000 rpm
Maximum Torque	87.5 Nm (8.9 kg-m) @ 8, 500 rpm
