Periodic maintenance and adjustment
8-9
1
2
3
4
5
6
7
8
9
10
11
12
EAU18752

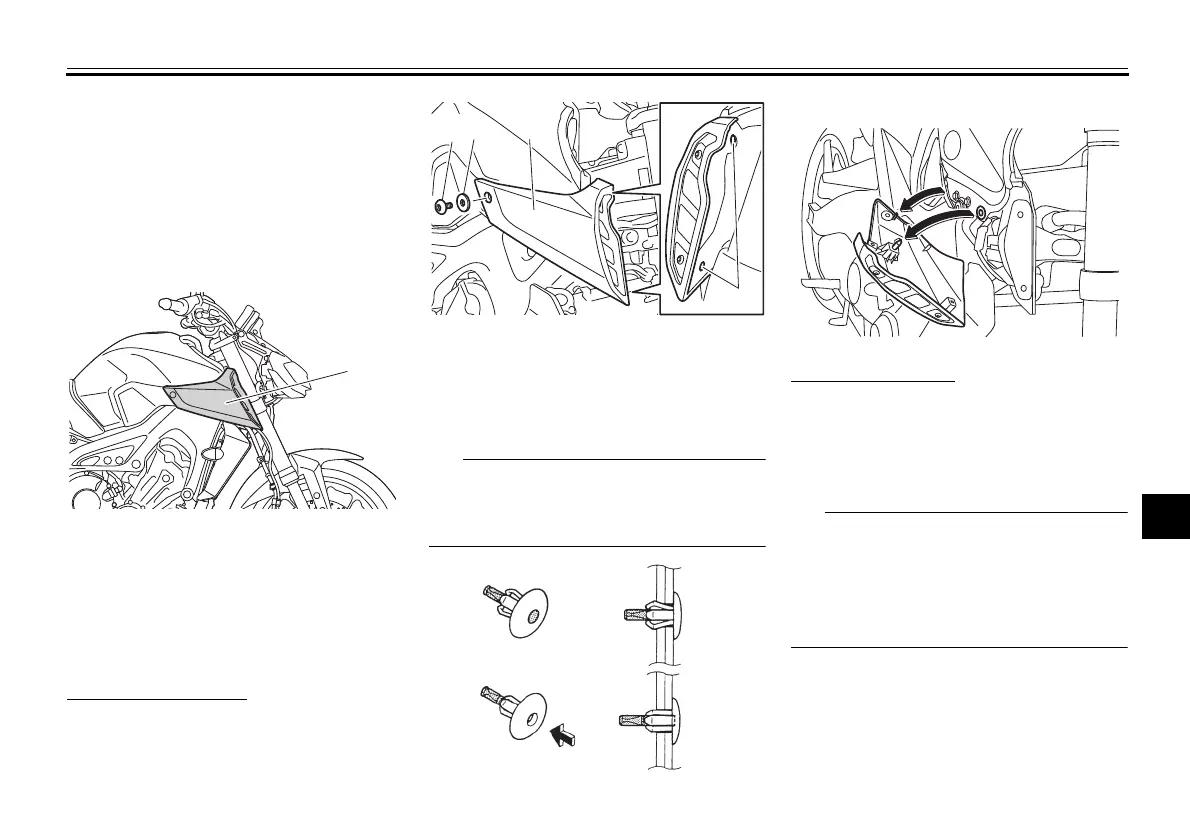

Removing and installing the
panel
The panel shown needs to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time the panel needs
to be removed and installed.
EAU83391
Panel A
To remove the panel
1. Remove the bolt, washer and
quick fasteners.
The quick fasteners are removed by
pushing in the center pin and then pull-
ing the fastener out.
2. Pull the panel off as shown.
To install the panel
1. Place the panel in the original posi-
tion.
2. Install the washer, bolt and quick
fasteners.
The quick fasteners are installed by
pushing out the center pin, inserting the
fastener into the panel, and then by
pushing the center pin flush with the
fastener head.
1. Panel A
1
1. Bolt
2. Washer
3. Panel A
4. Quick fastener
