Instrument and control functions
5-21
1
2
3
4
5
6
7
8
9
10
11
12

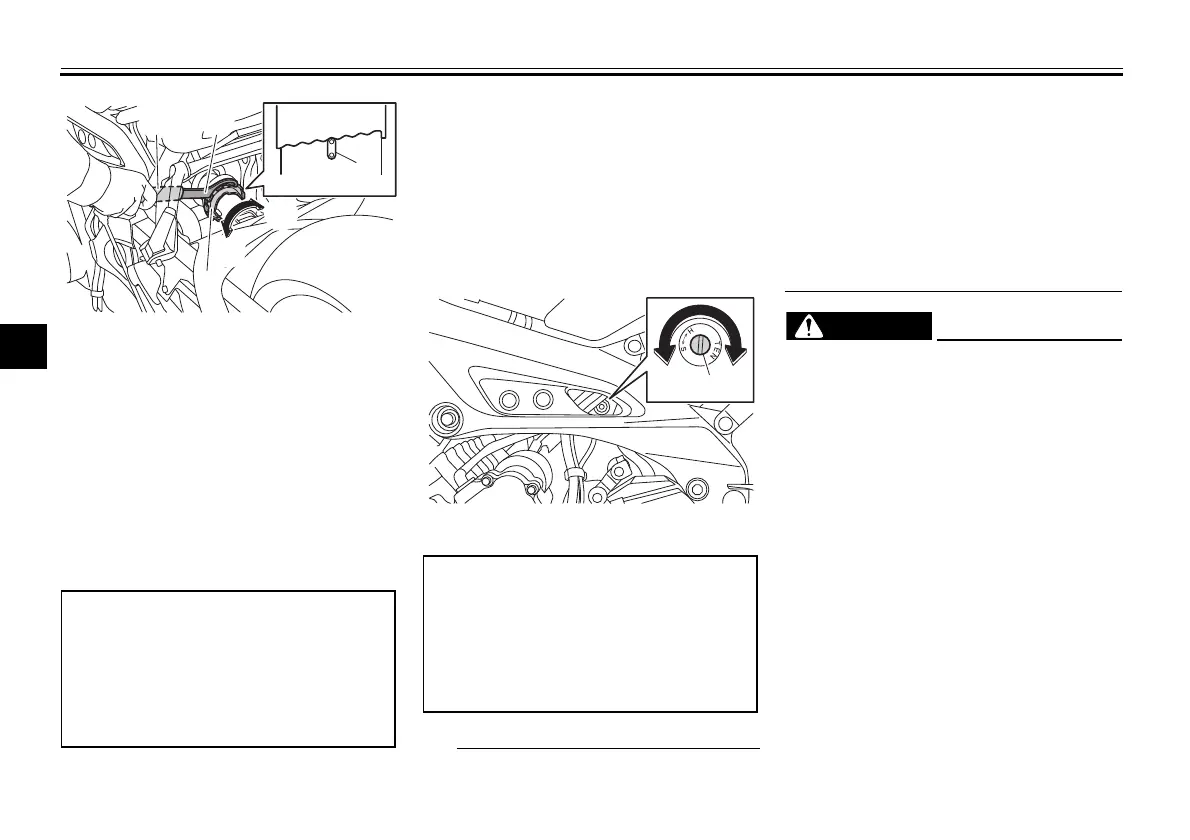

 Align the appropriate notch in the
adjusting ring with the position in-
dicator on the shock absorber.
 Use the special wrench and exten-
sion bar in the tool kit to make this
adjustment.
Rebound damping force
To increase the rebound damping force
and thereby harden the rebound damp-
ing, turn the adjusting screw in direction
(a). To decrease the rebound damping
force and thereby soften the rebound
damping, turn the adjusting screw in di-
rection (b).
TIP
 When adjusting the damping force
settings, turn the adjuster in direc-
tion (a) until it stops, and then
count the turns in direction (b).
 Although a damping force adjuster
may turn beyond the stated mini-
mum settings, such adjustments
are ineffective and may damage
the suspension.
WARNING
EWA10222
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
 Do not tamper with or attempt to
open the cylinder assembly.
 Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
 Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
 Do not dispose of a damaged or
1. Spring preload adjusting ring
2. Special wrench
3. Extension bar
4. Position indicator
Spring preload setting:
Minimum (soft):
1
Standard:
4
Maximum (hard):
7
7
6
5
4
3
2
1
1
(b)
(a)
4
23
1. Rebound damping force adjusting screw
Rebound damping setting:
Minimum (soft):
3 turn(s) in direction (b)
Standard:
1+1/2 turn(s) in direction (b)
Maximum (hard):
0 turn(s) in direction (b)
1
(a)(b)
