Periodic maintenance and adjustment
8-32
1
2
3
4
5
6
7
8
9
10
11
12

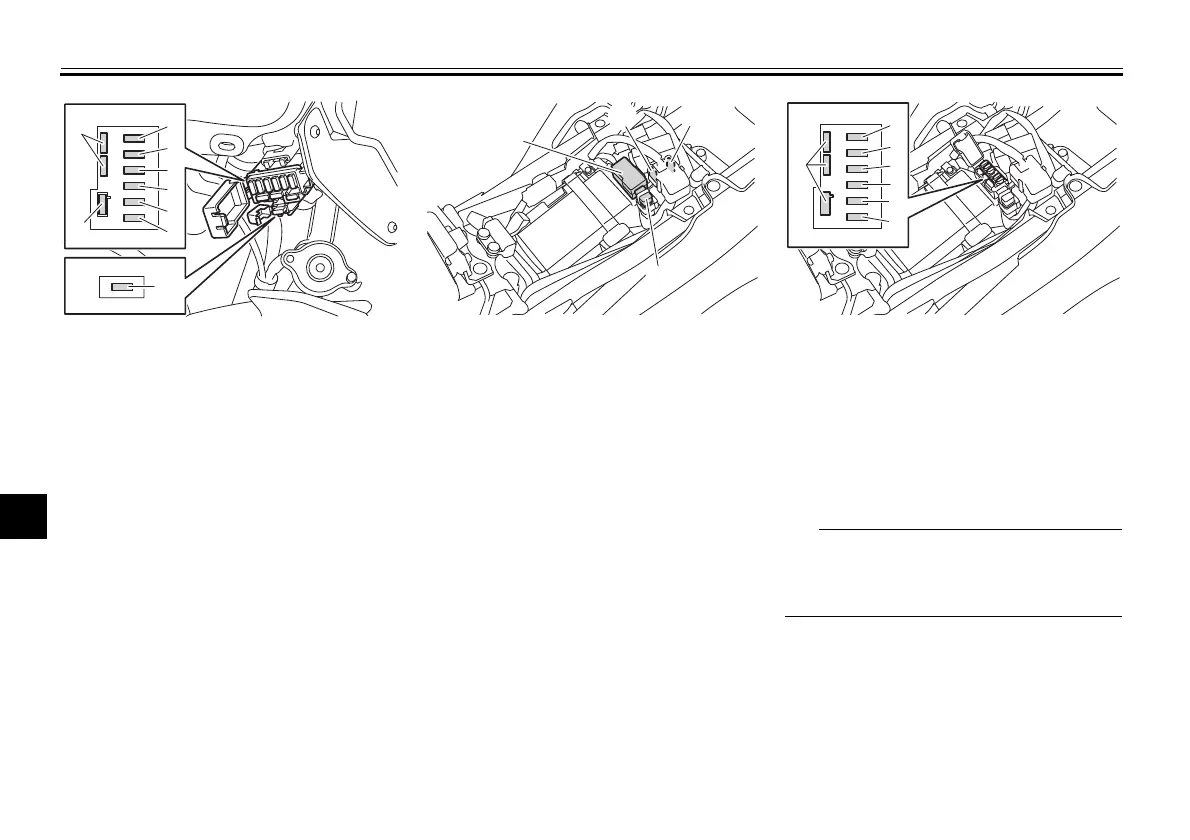

The main fuse, the fuel injection system
fuse, and fuse box 2 are located under
the seat. (See page 5-17.)
TIP
To access the fuel injection system
fuse, remove the starter relay cover by
pulling it upward.
1. Ignition fuse
2. ABS control unit fuse
3. Auxiliary fuse 1
4. Parking lighting fuse
5. Signaling system fuse
6. Headlight fuse
7. Grip warmer fuse
8. Spare fuse
1
2
3
8
4
5
6
8
7
1. Fuse box 2
2. Main fuse
3. Fuel injection system fuse
4. Fuel injection system spare fuse
2
3
4
1
1. Radiator fan motor fuse
2. Backup fuse
3. Electronic throttle valve fuse
4. Terminal fuse 1
5. ABS solenoid fuse
6. ABS motor fuse
7. Spare fuse
1
2
3
4
7
5
6
BS2-9-13.book 32 ページ ２０１９年７月２５日 木曜日 午前１１時１分

Yamaha MT09 2020 Specifications

General

Bore x Stroke	78.0 mm x 59.1 mm
Compression Ratio	11.5:1
Fuel System	Fuel Injection
Ignition System	TCI: Transistor Controlled Ignition
Final Drive	Chain
Front Suspension	Telescopic fork
Front Tire	120/70ZR17M/C (58W)
Rear Tire	180/55ZR17M/C (73W)
Overall Width	815 mm
Fuel Capacity	14 L
Wet Weight	193 kg
Starter System	Electric
Frame	Diamond
Ground Clearance	135 mm
Engine Type	Liquid-cooled, 4-stroke, DOHC, 3-cylinder
Transmission	6-speed
Rear Suspension	Swingarm
Front Brakes	Hydraulic dual disc
Rear Brakes	Hydraulic disc
Overall Length	2075 mm
Overall Height	1120 mm
Wheelbase	1440 mm
Maximum Power	115 PS (84.6 kW) @ 10, 000 rpm
Maximum Torque	87.5 Nm (8.9 kg-m) @ 8, 500 rpm
