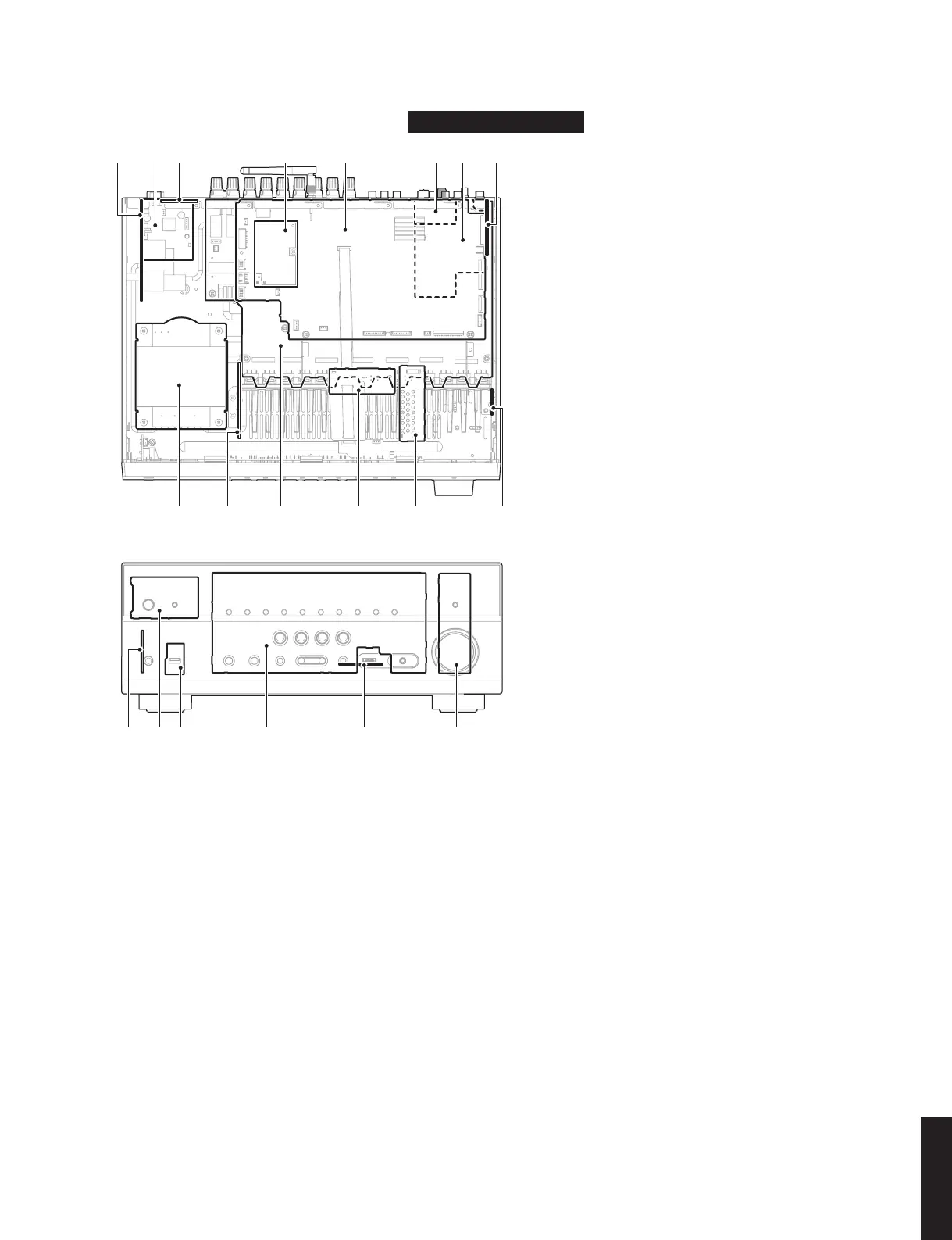

■ INTERNAL VIEW
Top view
Front view
32
9
o
m jkln
r s tp q
1 84 5 6 7
a
OPERATION (2) P.C.B.
b
OPERATION (13) P.C.B.
c
MAIN (2) P.C.B. (R, V, S models)
d
Network Module
e
DIGITAL (1) P.C.B.
f
TUNER Module
g
OPERATION (3) P.C.B.
h
OPERATION (15) P.C.B.
i
MAIN (5) P.C.B.
j
MAIN (4) P.C.B.
k
MAIN (3) P.C.B.
l
MAIN (1) P.C.B
m
MAIN (6) P.C.B.
n
POWER TRANSFORMER
o
OPERATION (7) P.C.B.
p
OPERATION (5) P.C.B.
q
OPERATION (14) P.C.B.
r
OPERATION (1) P.C.B.
s
DIGITAL (2) P.C.B.
t
OPERATION (3) P.C.B.
