Yamaha RX-V683 Service Manual

19
RX-V683/RX-A770
RX-V683/RX-A770
■ DISASSEMBLY PROCEDURES / 分解手順
(Remove parts in the order as numbered.)
Disconnect the power cable from the AC outlet.
1. Removal of Top Cover
a. Remove 4 screws (
1
) and 5 screws (
2
). (Fig. 1)
b. Lift the rear side of the top cover to remove it. (Fig. 1)
2. Removal of Front Panel Unit
a. Remove 6 screws (
3
), and remove W4501 and W4761. (Fig. 1)
b. Remove CB1, CB6, CB82, CB477, CB502, CB941 and CB951. (Fig.1)
c.
Release 2 hooks on both ends and remove the front panel unit. (Fig. 1)
CB502
DIGITAL (1) P. C.B.
OPERATION (3) P. C.B.
Hook
Front panel unit
CB477
W4501
W4761
OPERATION (7) P. C.B.
Hook
CB82
CB1
CB6
CB941
CB951
Top cover
1
1
3
3
3
2

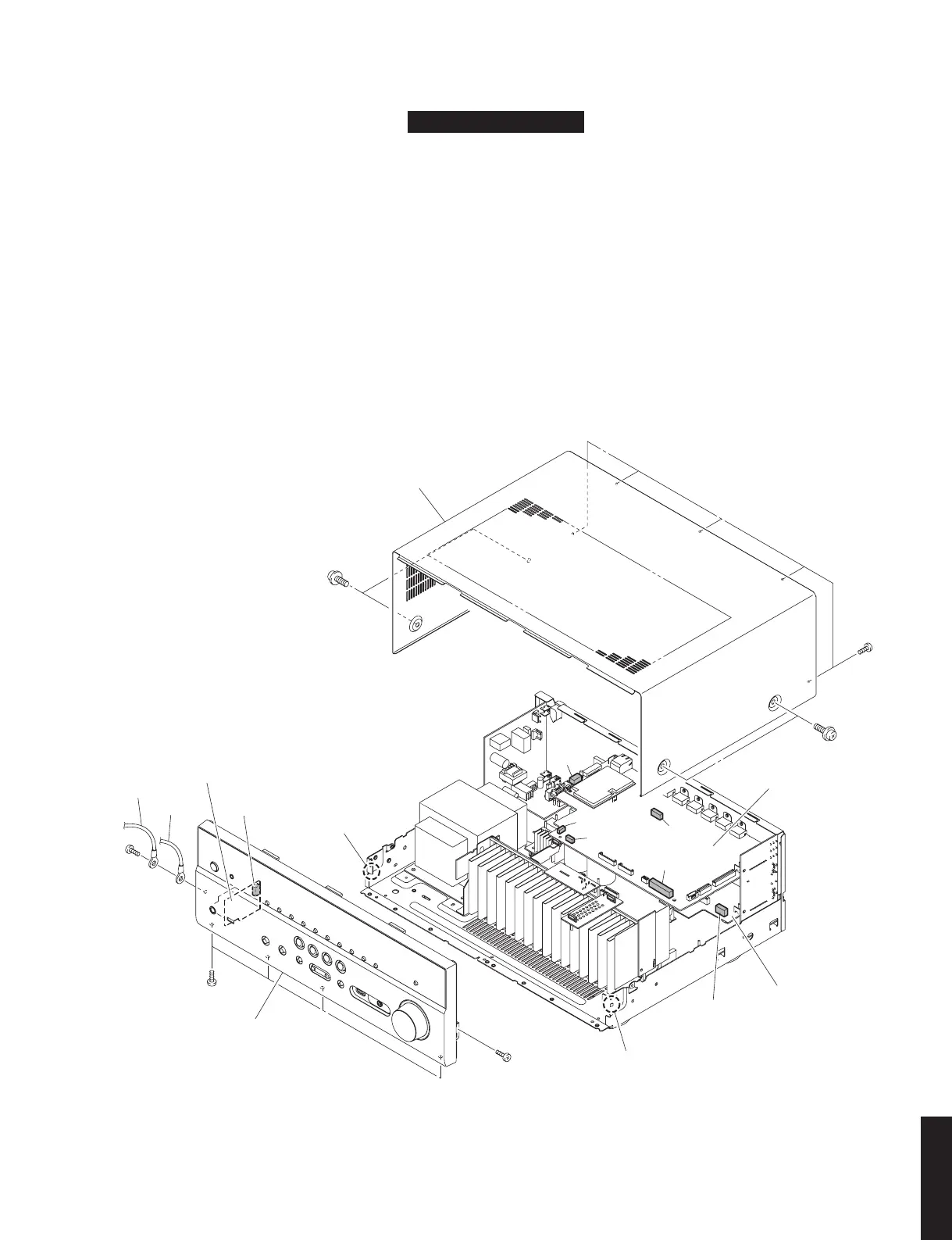

Fig. 1
RX-V683

Yamaha RX-V683 Specifications

General

Receiver type	Surround
Pre-out connectivity	Yes
Audio output channels	7.2 channels
Dynamic power per channel (4 Ohm)	190 W
Dynamic power per channel (8 Ohm)	125 W
Power output per channel (1KHz@8 Ohm)	105 W
Power output per channel (20-20KHz@8 Ohm)	- W
Display	-
Apple docking	No
Product color	Black
Audio decoders	DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby Surround, Dolby TrueHD
Volume control	Rotary
Bluetooth range	10 m
Number of HDMI outputs	1
HDMI in	6
Audio (L/R) in	5
Digital audio coaxial in	2
Power consumption (standby)	0.1 W
Supported video modes	2160p
Supported radio bands	AM, FM
Internet radio services supported	Spotify
Connectivity technology	Wired & Wireless
Audio formats supported	AIFF, DSD, FLAC, WAV

Weight and Dimensions

Depth	378 mm
Width	435 mm
Height	171 mm
Weight	10000 g
