Outboard Rigging Guide - 2001

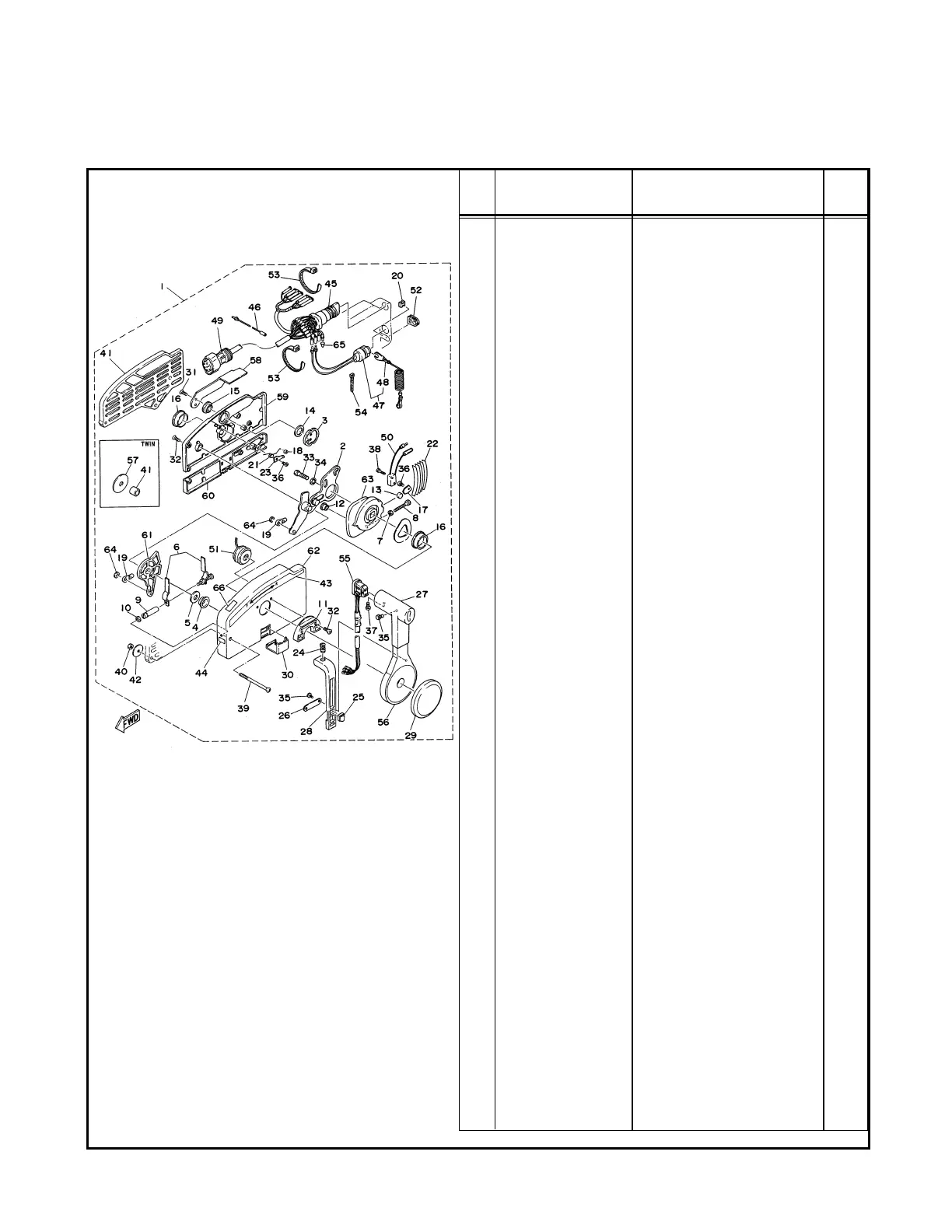

703 REMOTE CONTROL ASSEMBLIES
REF
NO PART NUMBER DESCRIPTION QTY.
1 Remote Control
Assembly (7P)
w/PT/T Sw 1
2 703-48261-01-00 • Arm, Throttle 1
3 703-48153-00-00 • Shaft, Free Accel. 1
4 703-48235-00-00 • Bushing 1
5 703-48268-00-00 • Spacer 1
6 703-48264-00-00 • Throttle, Friction 1
7 95380-05600-00 • Nut 1
8 97380-05025-00 • Bolt 1
9 703-48265-00-00 • Shaft, Friction 1
10 93430-06024-00 • Circlip 3
11 703-48245-00-00 • Plate, Lock 1
12 703-48252-00-00 • Roller, Cam 1
13 701-48248-00-00 • Roller, Free Accel. 1
14 703-48198-00-00 • Washer, Wave 1
15 703-48243-00-00 • Bushing 1
16 703-48236-00-00 • Bushing 1 2
17 703-48189-00-00 • Retainer 1
18 703-48236-0-00 • Bushing 1 1
19 703-48345-01-00 • Cable End, Rem. Control 2 2
20 703-48358-00-00 • Anchor, Cable 1
21 703-48244-00-00 • Spring, Free Accel. 1
22 703-48238-00-00 • Spring, Detent 5
23 703-48246-00-00 • Spacer 1
24 703-48227-00-00 • Spring, Neutral Lock 1
25 703-82594-00-00 • Clamp 1
26 703-48226-00-00 • Plate, Stopper 1
27 703-48222-00-00 • Grip, Control Lever, Single 1
28 703-48223-00-00 • Lock, Neutral 1
29 703-48225-00-00 • Cover 1
30 703-48219-00-00 • Cover, Lead 1
31 703-48281-00-00 • Screw 2
32 703-48282-00-00 • Screw 7
33 97095-08030-00 • Bolt 1
34 92990-08600-00 • Washer, Plate 1
35 98580-04010-00 • Screw, Pan Head 3
36 98580-04006-00 • Screw, Pan Head 2
37 98580-05010-00 • Screw, Pan Head 1
38 98580-03015-00 • Screw, Pan Head 2
39 703-48291-10-00 • Screw, (M6) 3
40 95380-06600-00 • Nut 3
41 703-48293-10-00 • Spacer, Remote Control
Single 1
42 701-48287-00-00 • Washer 3
43 703-48215-00-00 • Graphic 1
44 702-48217-00-00 • Mark 1
45 703-82510-30-00 • Main Switch Ass’y. (7P)
For Prime Start Model 1
703 Remote Control (T9.9ER)
[Pull 7-Pin] (703-48240-12-00)
