3-42
Outboard Rigging Guide - 2001 Remote PT&T Switch
F/T25T, 40T~250HP, C40T~C90

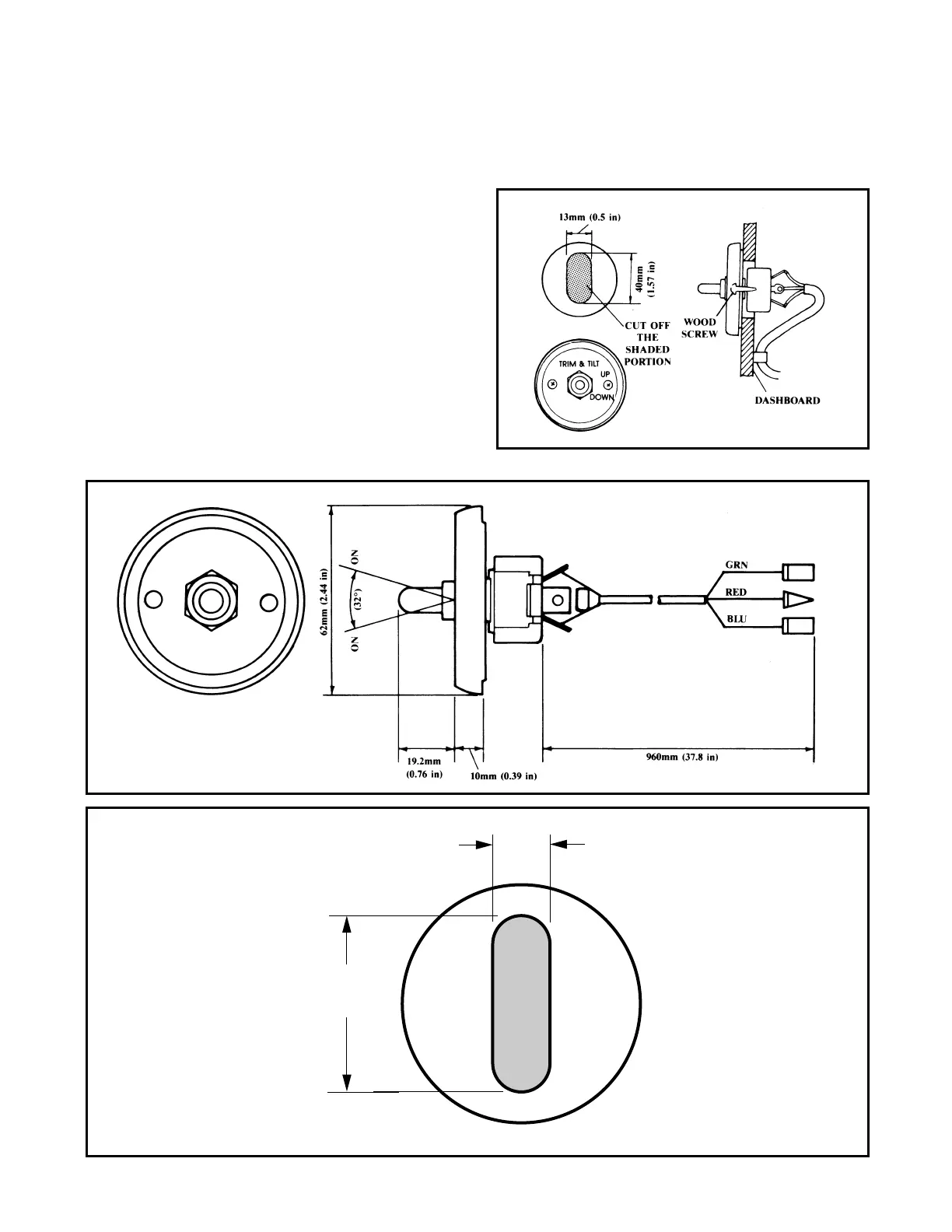

Mounting
Think Instrument Panel Installation
(over 2mm (0.08in)
1. Select a mounting location so the power
trim/tilt switch is easy to reach from the helm.
Be sure there is sufficient clearance behind
the instrument panel for the switch.
2. When installing the power trim/tilt switch
into a thick instrument panel, make a hole
40mm (1.57in) high and 13mm (0.5in) wide
as shown in the mounting diagram.
3. Secure the switch with the wood screws as
shown.
For electric tiller model wiring, see the wiring
diagrams in the Boat Wiring Diagrams Section.
40 mm
(1.57 in)
13 mm (.5 in)
TEMPLATE (Actual Size)
