2-10

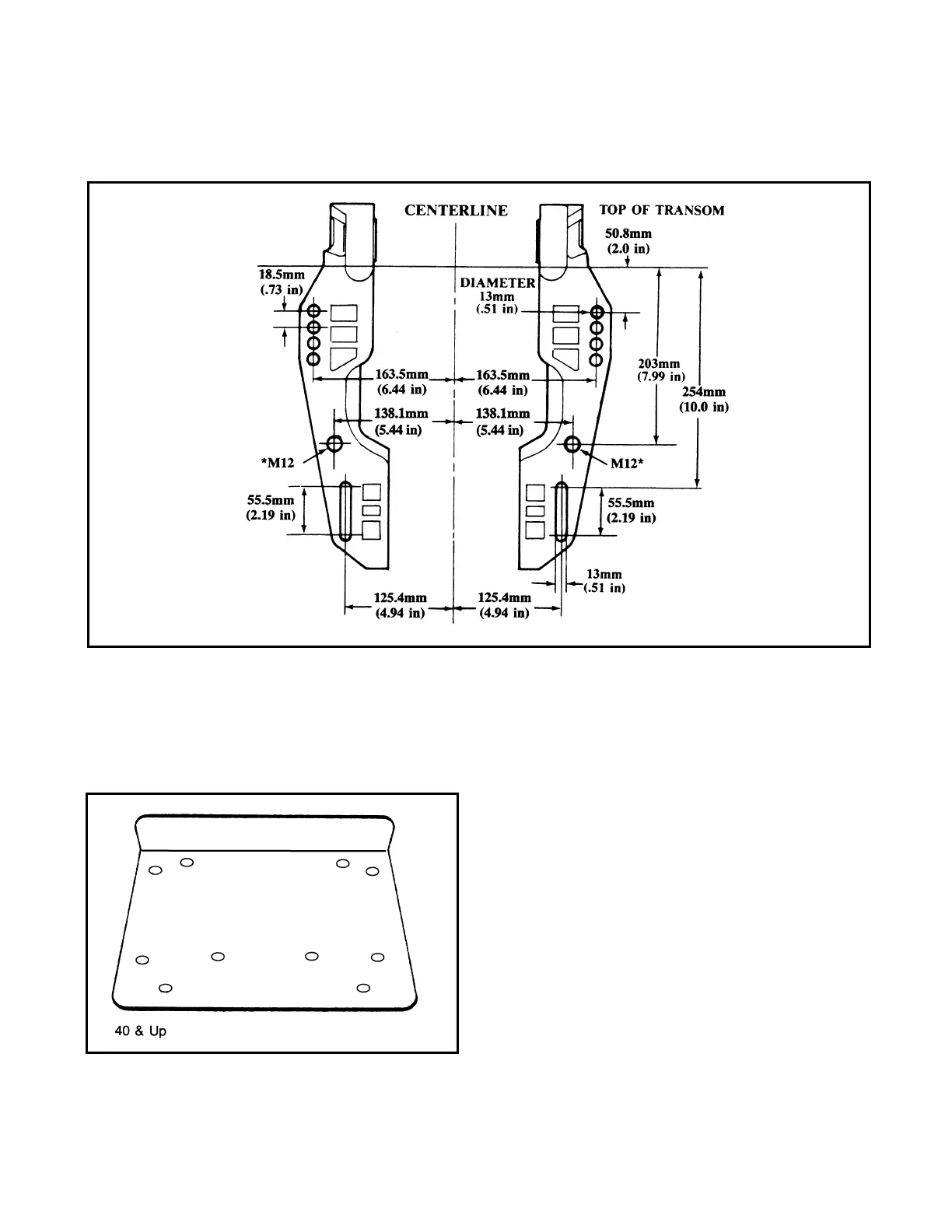

Outboard Rigging Guide - 2001 Transom Mounting Patterns
T25~250 including F30, F40, F50, T50, F80, F100, F115 35hp and up jet drive (transom bracket shape
may vary from model to model, however, mounting hole pattern is the same on all models.)
*Not present on V-4, V-6.
TRANSOM DRILL FIXTURE
YB 34465
Available from:
Kent-Moore
Phone 1-800-328-6657
Fax 1-800-578-7375
