5. Press the “ ” (mode) button until the
desired minute is displayed.
6. Press the “ ” (set) button again to start
the clock.
The clock operates on battery power. Dis-
connecting the battery will stop the clock.
Reset the clock after connecting the battery.
EMU36080
Voltmeter
The voltmeter displays the charge of the bat-
tery in volts(V).
EMU26721
Fuel level-alert indicator
If the fuel level decreases to one segment,
the fuel level alert segment will blink.
Do not continue to operate the engine with
full throttle if an alert device has activated.
Get back to the port within trolling engine
speed. NOTICE: Running out of fuel can
damage the engine.
[ECM01770]
EMU26732
Low battery voltage-alert indicator
If battery voltage drops, the display will auto-
matically turn on and blink.
Get back to the port soon if an alert device
has activated. For charging the battery, con-
sult your Yamaha dealer.
EMU26471
Analog tachometer
This gauge shows the engine speed and has
the following functions.
EMU26541
Oil level indicators (three indicators)
The indicators on the gauge show the status
of the oil level. For details on how to read the
indicators, see page 50.

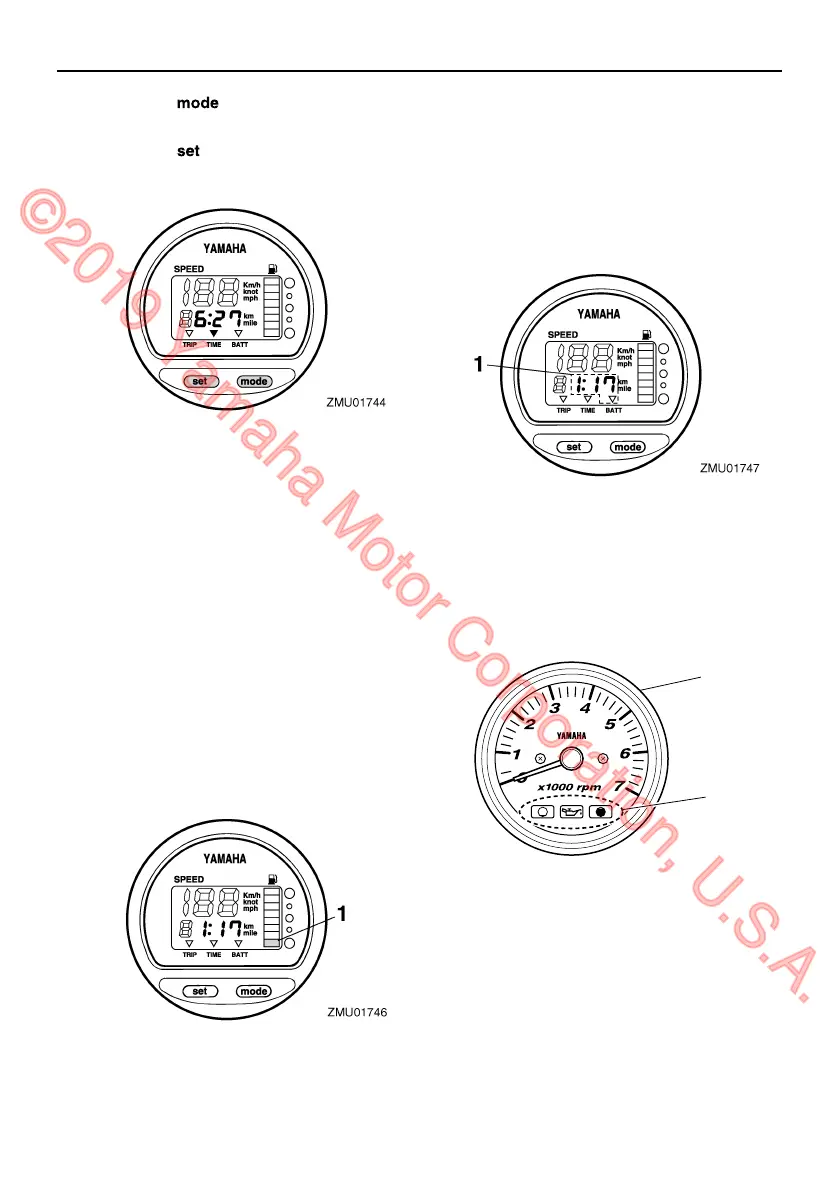

1. Fuel level-alert segment
1. Low battery indicator
1. Tachometer
2. Oil level indicator
