DESCRIPTION
3-1
3
EAU10410

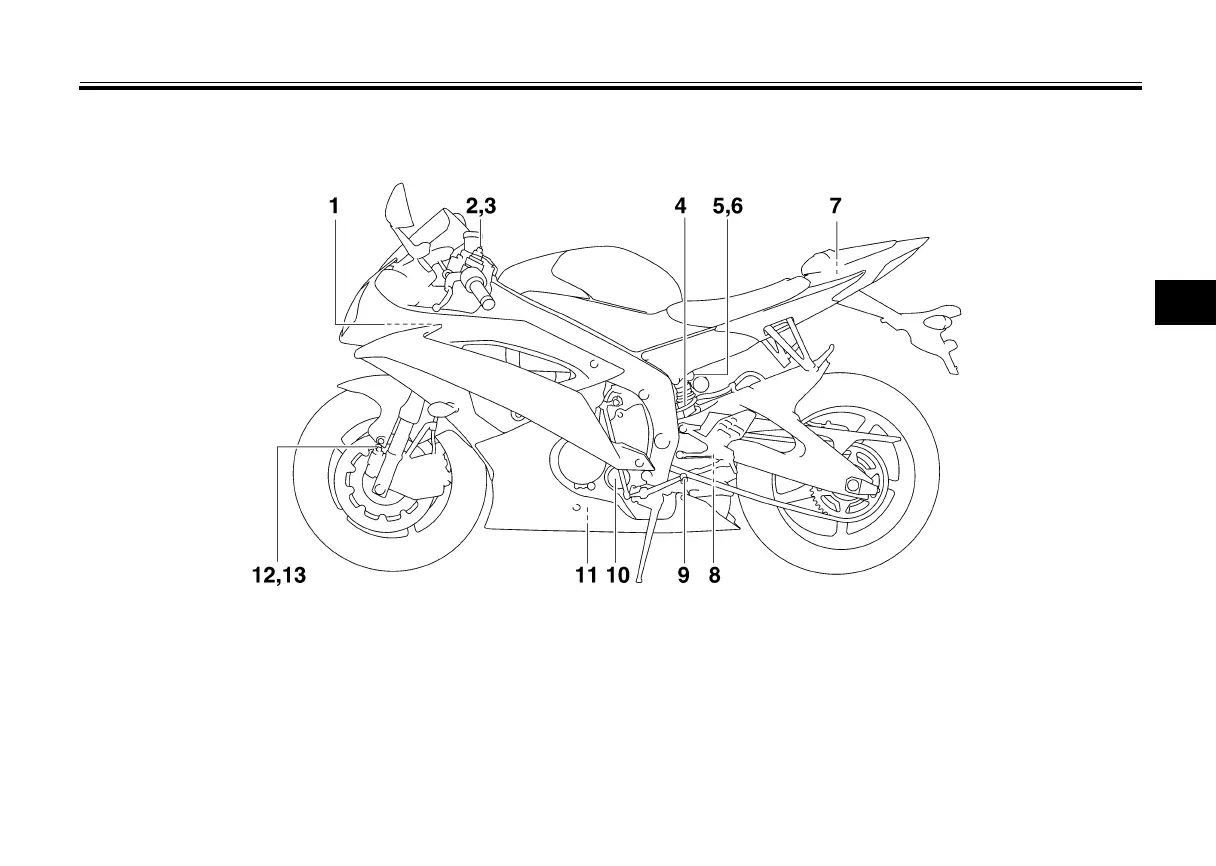

Left view
1. Fuse box 2 (page 7-36)
2. Front fork spring preload adjusting bolt (page 4-19)
3. Front fork rebound damping force adjusting screw (page 4-19)
4. Shock absorber assembly spring preload adjusting ring (page 4-21)
5. Shock absorber assembly compression damping force adjusting bolt
(for fast compression damping) (page 4-21)
6. Shock absorber assembly compression damping force adjusting bolt
(for slow compression damping) (page 4-21)
7. Owner’s tool kit (page 7-2)
8. Shock absorber assembly rebound damping force adjusting screw
(page 4-21)
9. Shift pedal (page 4-12)
10.Engine oil filter cartridge (page 7-14)
11.Engine oil drain bolt (page 7-14)
12.Front fork compression damping force adjusting bolt (for fast compres-
sion damping) (page 4-19)
13.Front fork compression damping force adjusting bolt (for slow com-
pression damping) (page 4-19)
