INSTRUMENT AND CONTROL FUNCTIONS
4-23
4
To obtain a precise adjustment, it is ad-
visable to check the actual total number
of clicks or turns of each damping force
adjusting mechanism. This adjustment
range may not exactly match the spec-
ifications listed due to small differences
in production.
EWA10221
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.
● Do not tamper with or attempt to
open the cylinder assembly.
● Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
● Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
● Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
EAU38961
Luggage strap holders
There are six luggage strap holders,
four on the bottom of the passenger
seat and one on each passenger foot-
rest. To use the luggage strap holders

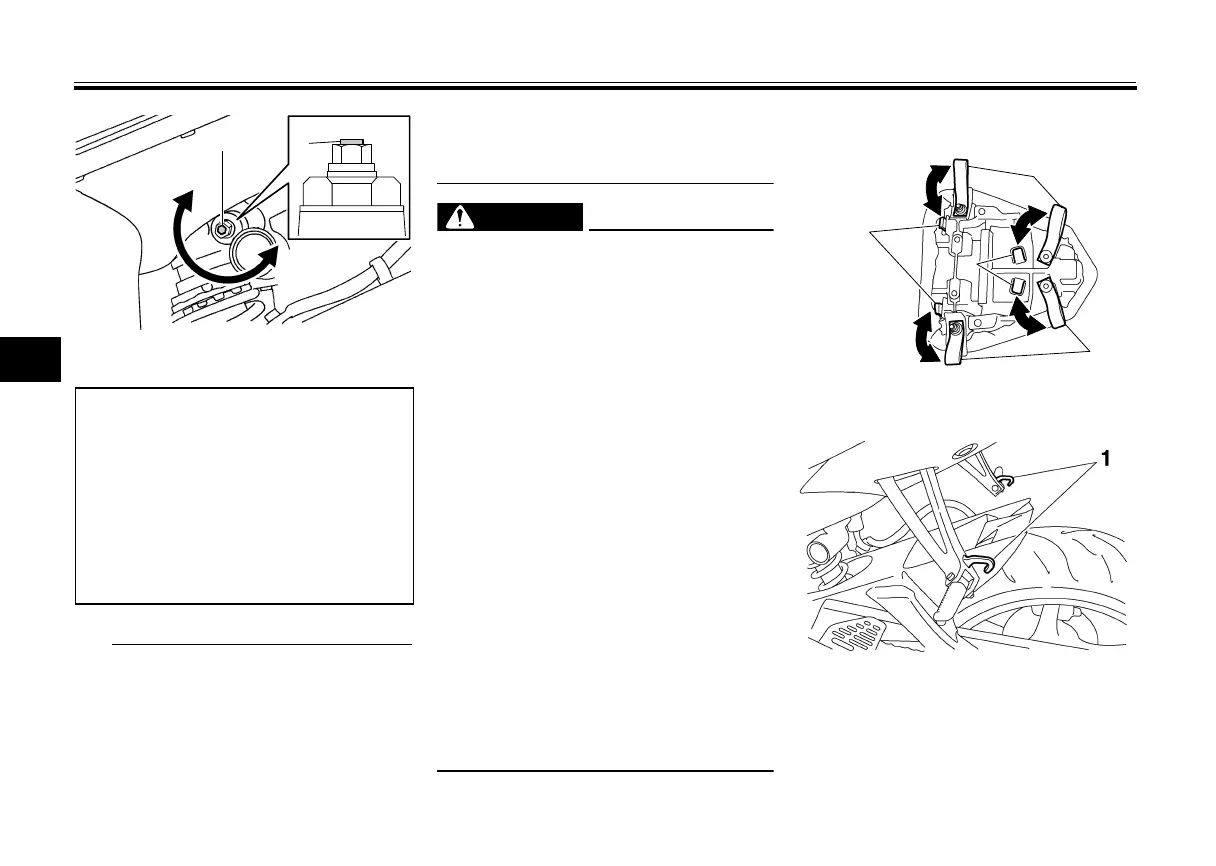

1. Compression damping force adjusting bolt
(for slow compression damping)
Compression damping setting (for
slow compression damping):
Minimum (soft):
20 click(s) in direction (b)*
Standard:
16 click(s) in direction (b)*
Maximum (hard):
1 click(s) in direction (b)*
* With the adjusting bolt fully turned in
direction (a)
1. Luggage strap holder
2. Hook
1. Luggage strap holder
U1JS11E0.book Page 23 Tuesday, August 2, 2011 3:03 PM
