Yealink CP965 Recovery Guide

Recovery Mode on Yealink IP phones
13
4. After a handset is registered, press (for W52P/W56P base) or (for W60B base) on the
handset to verify the current firmware version.
For W80DM/W80B
For the W80DM/W80B, there is no screen to show information for you. The W80DM/W80B uses
192.168.0.23 as its default IP address, so you need to configure a static IP address for your local PC
where you have the TFTP server installed.
Procedures:

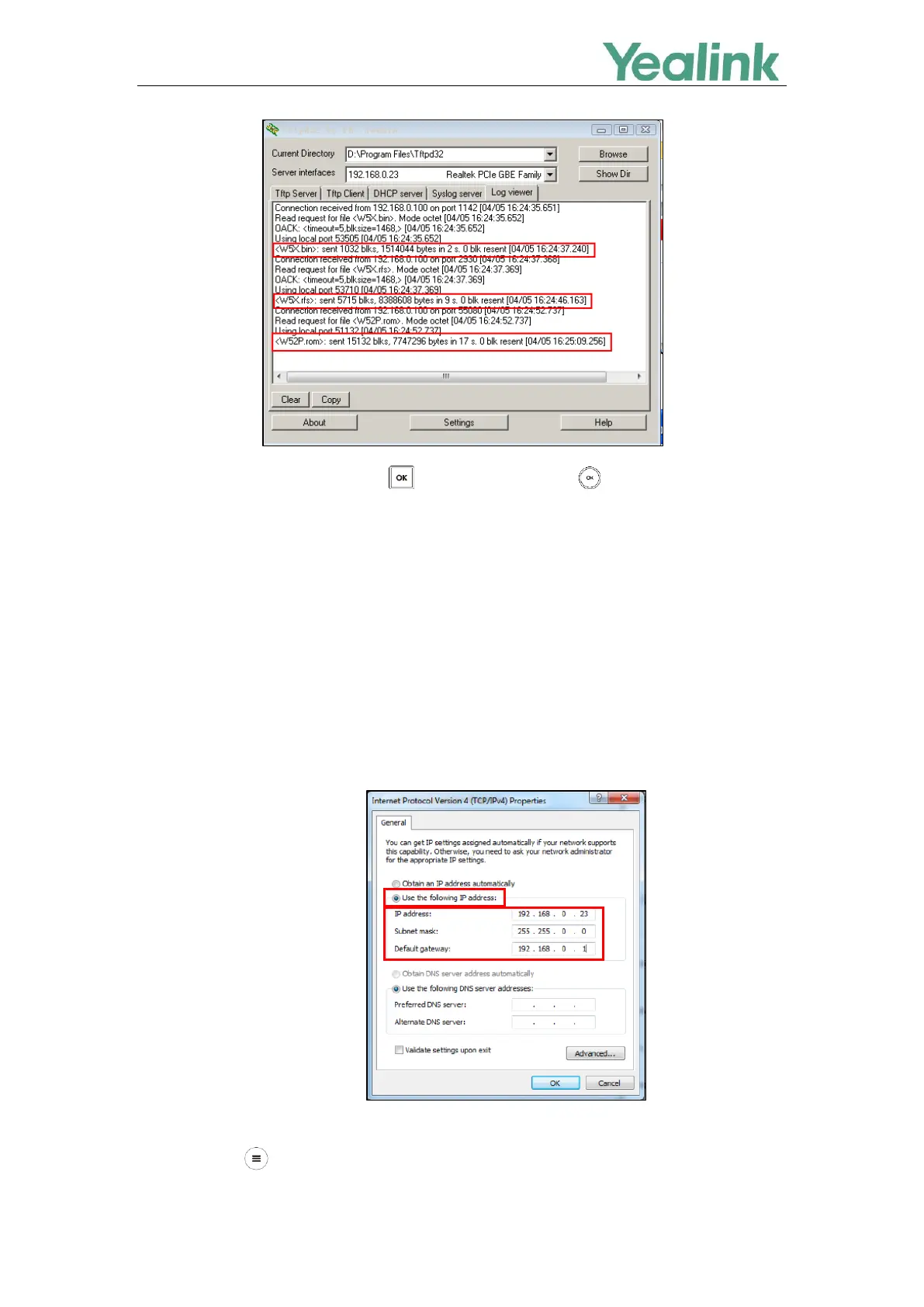

1. Configure the static IP address on your local PC.
It must be configured as below:
2. Click OK twice to save the settings.
3. Long press and reconnect the power adapter to trigger the recovery mode.
The W80DM/W80B will download and upgrade the firmware from the TFTP server.

Yealink CP965 Specifications

General

Control type	Touch
Display type	LCD
Product type	IP conference phone
Voice codecs	AGC, AJB, CNG, G.711a, G.711u, G.722, G.722.1C, G.723, G.726, G.729, G.729A, OPUS, PCMA, PLC, VAD, iLBC
Certification	CE, FCC, RoHS, REACH, ISO 9001, CCC
Product color	Black
Speaker power	5 W
Frequency range	100 - 20000 Hz
Built-in display	Yes
Display diagonal	5 \
Speaker diameter	56 mm
Bluetooth version	4.2
Display resolution	720 x 1280 pixels
Phonebook capacity	1000 entries
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	256-bit AES, HTTPS, MD5, WPA2, WPA3
Cable lock slot type	Kensington
Sound pressure level	94 dB
Recommended room size	Large room
Ethernet LAN data rates	10, 100 Mbit/s
Microphone pick-up range	6 m
Microphone direction type	Omnidirectional
Number of microphone arrays	1
Conference call ways quantity	10
USB version	2.0
USB connector type	USB Type-A, USB Type-C
USB ports quantity	2
Storage temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Master (outer) case width	392 mm
Master (outer) case height	410 mm
Master (outer) case length	552 mm
Master (outer) case weight	9020 g
Harmonized System (HS) code	85176990
Power consumption (max)	14 W
Power consumption (Power over Ethernet (PoE))	20 W

Weight and Dimensions

Depth	322 mm
Width	328 mm
Height	62 mm
Package depth	398 mm
Package width	384 mm
Package height	105 mm
