Yealink CP965 Recovery Guide

Recovery Mode on Yealink IP phones
4
Configuring the HTTP Server
This section shows how to configure a HTTP server for the windows system using the HFS tool. You can
download the HFS software online: http://www.snapfiles.com/get/hfs.html. If there is a HTTP server
installed on your local system, you can skip this section and go to the next.
Procedures
1. Create an HTTP root directory on the local system.
2. Place resource files to this root directory.
3. Double click the hfs.exe to start the application.

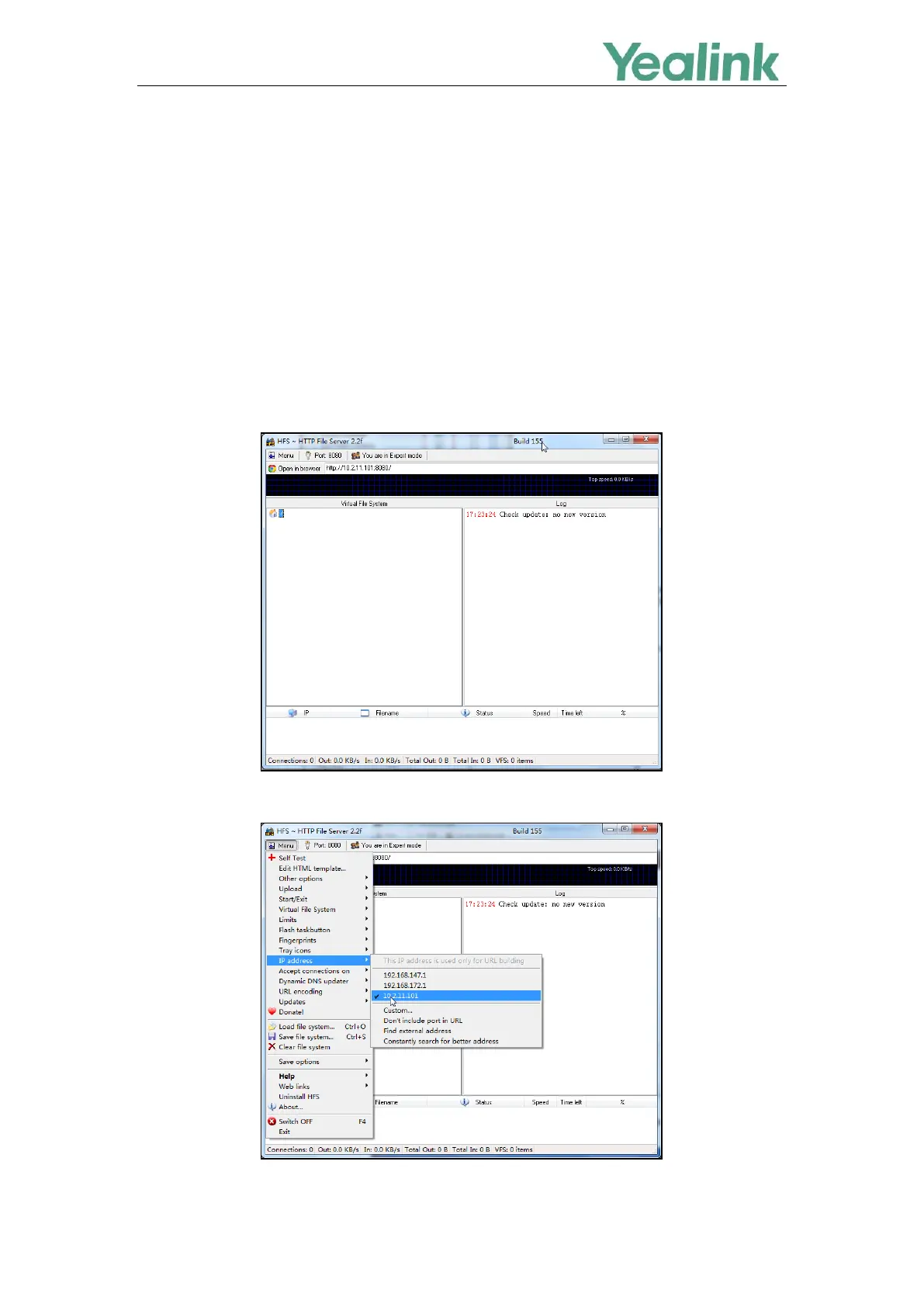

The main configuration page is shown as below:
4. Click Menu in the main page and select the IP address of the PC from IP address.

Yealink CP965 Specifications

General

Control type	Touch
Display type	LCD
Product type	IP conference phone
Voice codecs	AGC, AJB, CNG, G.711a, G.711u, G.722, G.722.1C, G.723, G.726, G.729, G.729A, OPUS, PCMA, PLC, VAD, iLBC
Certification	CE, FCC, RoHS, REACH, ISO 9001, CCC
Product color	Black
Speaker power	5 W
Frequency range	100 - 20000 Hz
Built-in display	Yes
Display diagonal	5 \
Speaker diameter	56 mm
Bluetooth version	4.2
Display resolution	720 x 1280 pixels
Phonebook capacity	1000 entries
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	256-bit AES, HTTPS, MD5, WPA2, WPA3
Cable lock slot type	Kensington
Sound pressure level	94 dB
Recommended room size	Large room
Ethernet LAN data rates	10, 100 Mbit/s
Microphone pick-up range	6 m
Microphone direction type	Omnidirectional
Number of microphone arrays	1
Conference call ways quantity	10
USB version	2.0
USB connector type	USB Type-A, USB Type-C
USB ports quantity	2
Storage temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Master (outer) case width	392 mm
Master (outer) case height	410 mm
Master (outer) case length	552 mm
Master (outer) case weight	9020 g
Harmonized System (HS) code	85176990
Power consumption (max)	14 W
Power consumption (Power over Ethernet (PoE))	20 W

Weight and Dimensions

Depth	322 mm
Width	328 mm
Height	62 mm
Package depth	398 mm
Package width	384 mm
Package height	105 mm
