Yealink SIP-T23G Auto Provisioning Guide

Yealink IP Phones Auto Provisioning Guide
12

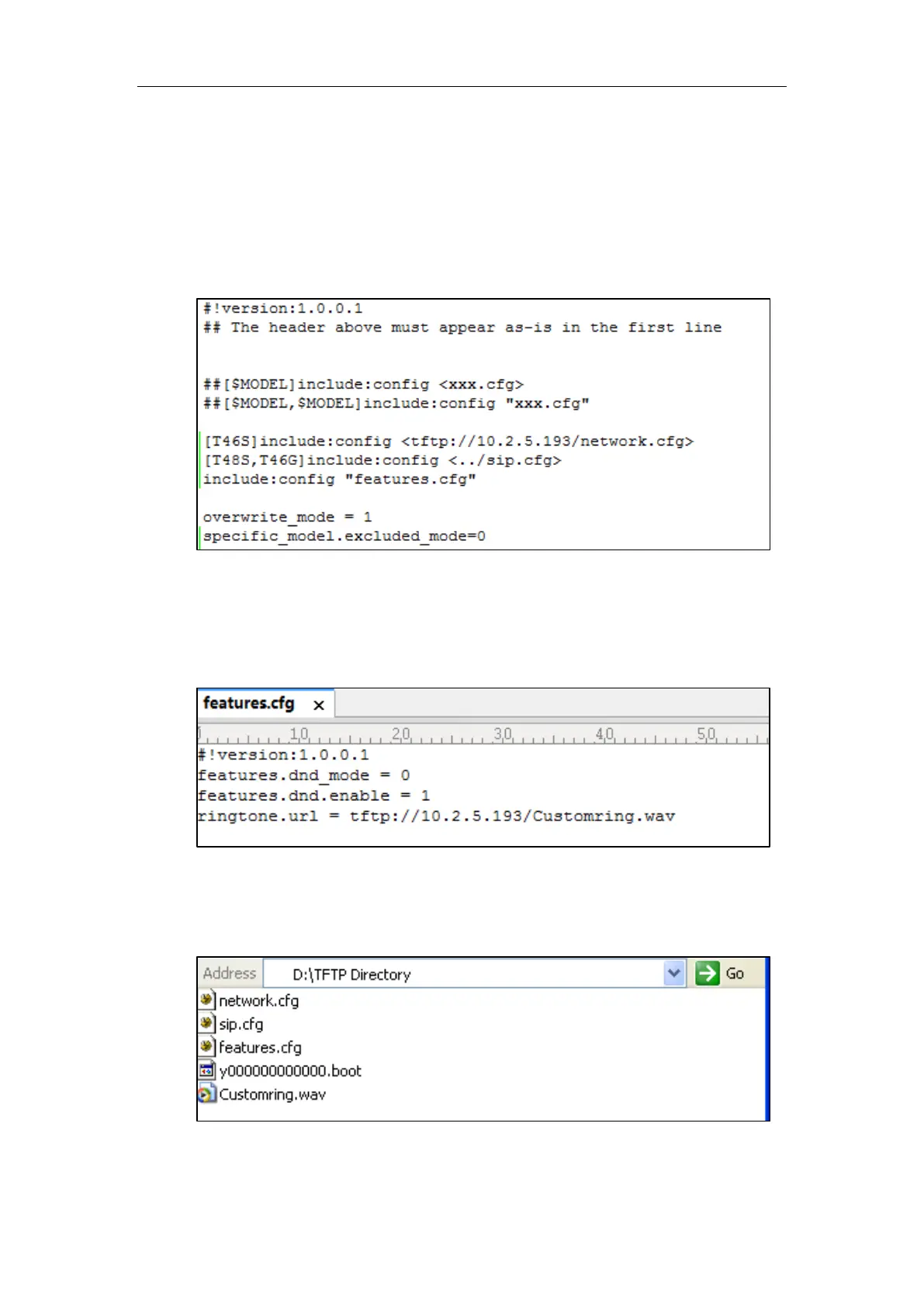

An Instance of Auto Provision Configuration
This section shows an instance of auto provision configuration.
1. Manage boot files.
Specify the desired URL (e.g., tftp://10.2.5.193/network.cfg) of the configuration files in the
boot file (e.g., y000000000000.boot). For more information, refer to Managing Boot Files.
2. Manage configuration files.
Add/Edit the desired configuration parameters in the CFG file (e.g., features.cfg) you want
the IP phone to download. For more information on how to manage configuration files,
refer to Managing Configuration Files.
3. Configure the TFTP server.
1) Place boot files, configuration files and resource files to TFTP root directory (e.g.,
D:\TFTP Directory).

Yealink SIP-T23G Specifications

General

Backlight	Yes
Voice codecs	G.711a, G.722.2, G.726, G.729ab, iLBC
Volume control	Digital
Handset type	Wired handset
Product type	IP Phone
Product color	Black, Silver
Display resolution	132 x 64 pixels
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	3
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af
Ethernet LAN (RJ-45) ports	2
AC adapter input voltage	100 - 240 V
AC adapter output current	0.6 A
AC adapter output voltage	5 V
Power consumption (typical)	1.56 W
Number of handles included	- pc(s)
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %

Weight and Dimensions

Depth	188 mm
Width	209 mm
Height	150 mm
