Yealink SIP-T46S Auto Provisioning Guide

Obtaining the Provisioning Server Address
35

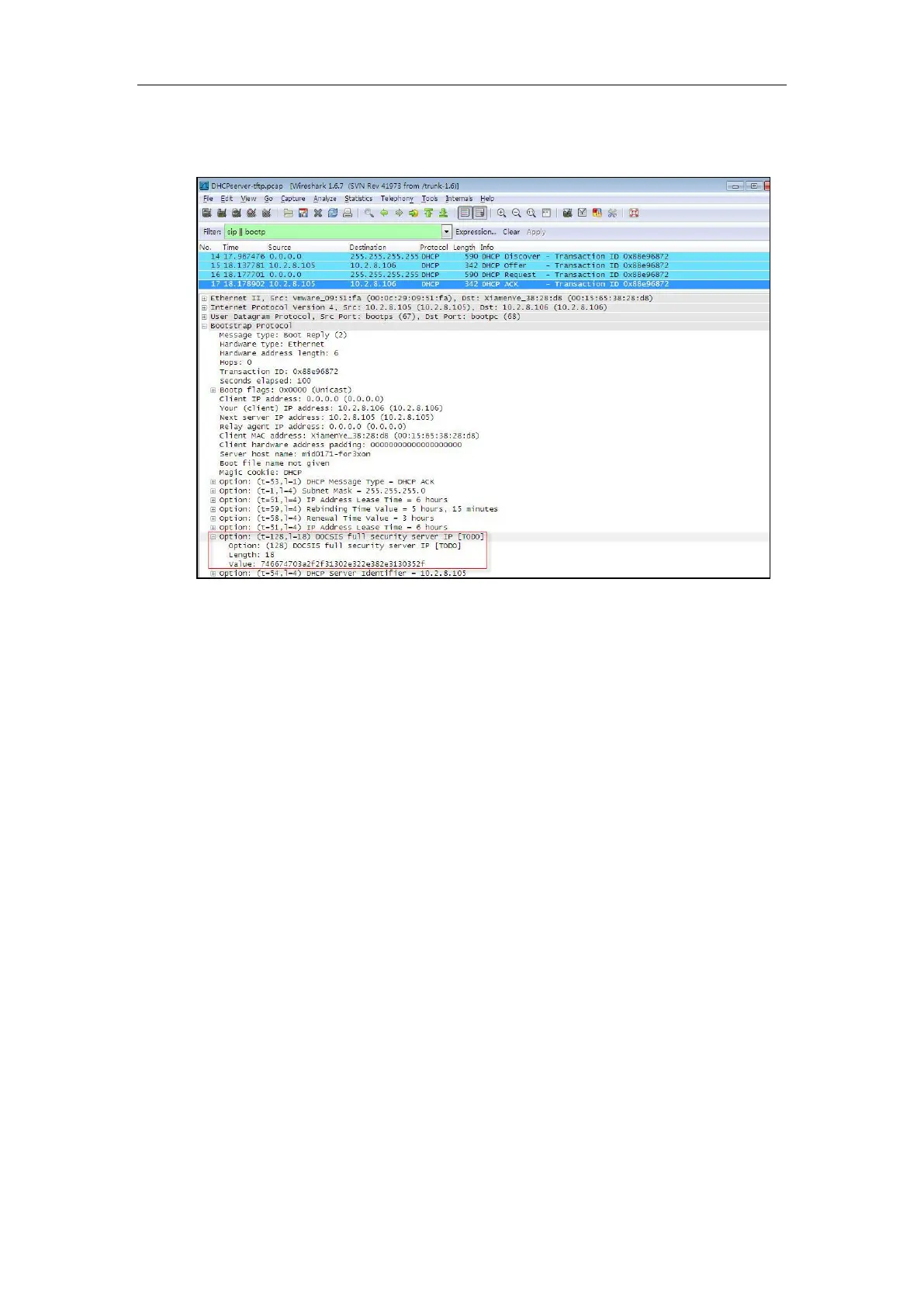

The following figure shows the example messages of obtaining the TFTP server address from an
IPv4 custom DHCP option:
Right click the root node of the custom option (e.g., option 128) shown on the above figure, and
select Copy->Bytes->Printable Text Only. Paste the copied text in your favorite text editor to
check the address, for example, tftp://192.168.1.100/.
Phone Flash
Yealink IP phones can obtain the provisioning server address from the IP phone flash. To obtain
the provisioning server address by reading the IP phone flash, make sure the configuration is set
properly.
To configure the IP phone flash via web user interface:
1. Click on Settings->Auto Provision.

Yealink SIP-T46S Specifications

General

Manual	Yes
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Volume control	Digital
Number of programmable keys	10
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
Package depth	255 mm
Package width	274 mm
Package height	128 mm
