Yealink SIP-T46S Auto Provisioning Guide

Yealink IP Phones Auto Provisioning Guide
36

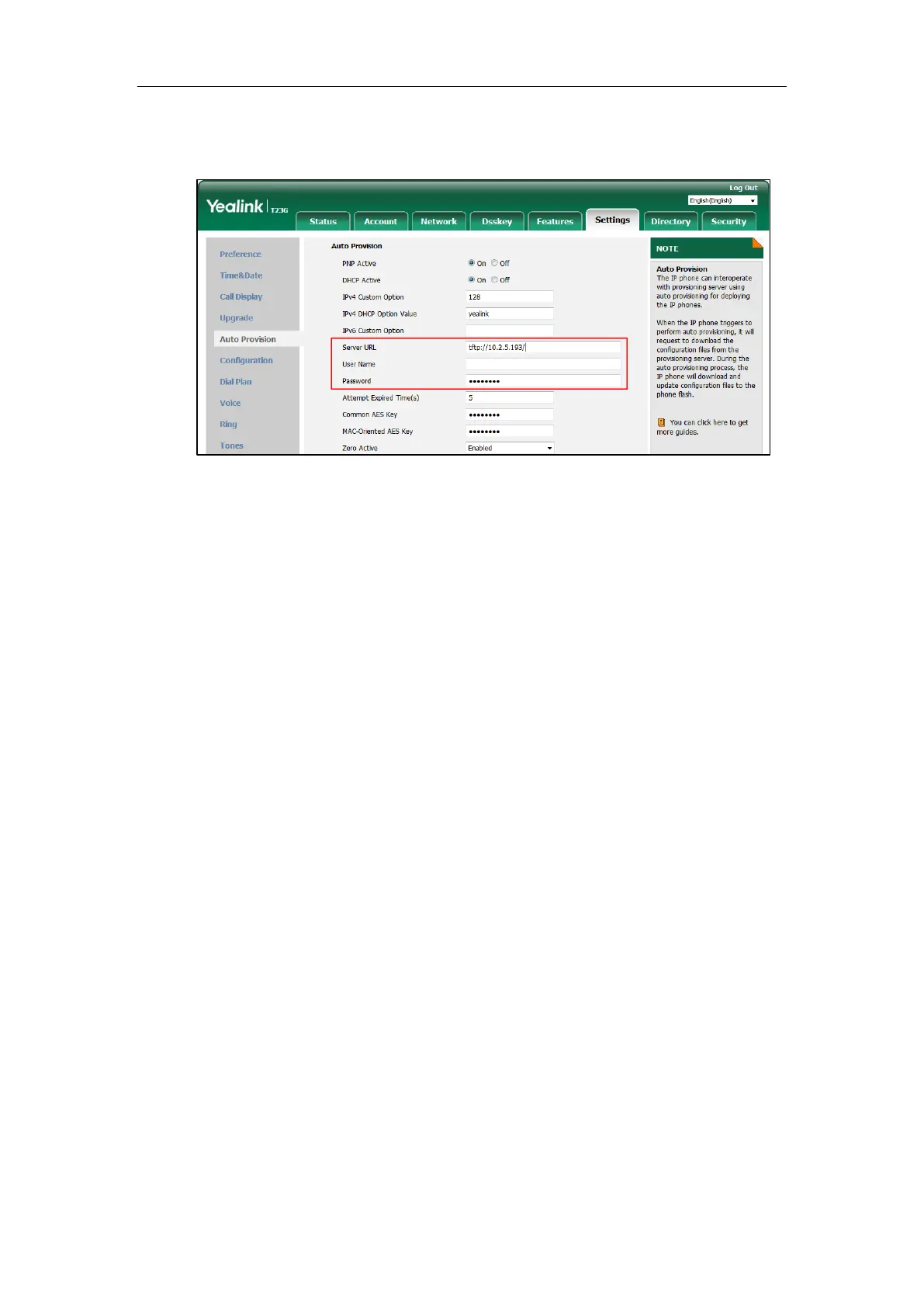

2. Enter the URL, user name and password of the provisioning server in the Server URL, User
Name and Password field respectively (the user name and password are optional).
3. Click Confirm to accept the change.
After the above configuration is completed, the IP phone will connect to the configured
provisioning server and perform auto provisioning by one of the following methods: Power On,
Repeatedly, Weekly, Flexible Auto Provision, Auto Provision Now, SIP NOTIFY Message and
Multi-mode Mixed. For more information on these methods, refer to Triggering the IP Phone to
Perform Auto Provisioning.
Configuring Wildcard of the Provisioning Server URL
Normally, many phone models may be deployed in your environment. To deploy many phone
models using a unified provisioning server, it is convenient for the administrator to configure a
unified provisioning server URL for different phone models. On the provisioning server, many
directories need to be configured for different phone models, each with a unique directory
name. Yealink IP phones support the following wildcards in the provisioning server URL:
 $PN: it is used to identify the directory name of the provisioning server directory where the
corresponding boot files and configuration files are located.
 $MAC: it is used to identify the MAC address of the IP phone.
The parameter “static.auto_provision.url_wildcard.pn” is used to configure the directory name
where the boot files and configuration files located. For more information on the parameter,
refer to the latest IP Phones Description of Configuration Parameters in CFG Files or
Administrator Guide for your phone on Yealink Technical Support.

Yealink SIP-T46S Specifications

General

Manual	Yes
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Voice codecs	CNG, G.711Mu, G.711a, G.722, G.723.1, G.726, G.729ab, VAD, iLBC
Lines quantity	16 lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Display diagonal	4.3 \
Display resolution	480 x 272 pixels
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
AC adapter output voltage	5 V
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Volume control	Digital
Number of programmable keys	10
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	2
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	213 mm
Width	244 mm
Height	185 mm
Package depth	255 mm
Package width	274 mm
Package height	128 mm
