Run Modes
Power ON
Basic setting mode
MENU key
or ESC key
Hold the
FUNC key for
3 seconds
DISP/ENTER
key
DISP/ENTER
key
ESC key
End menu > DISP/ENTER key
Setting modeOperation mode
MENU key
MENU key
or ESC key

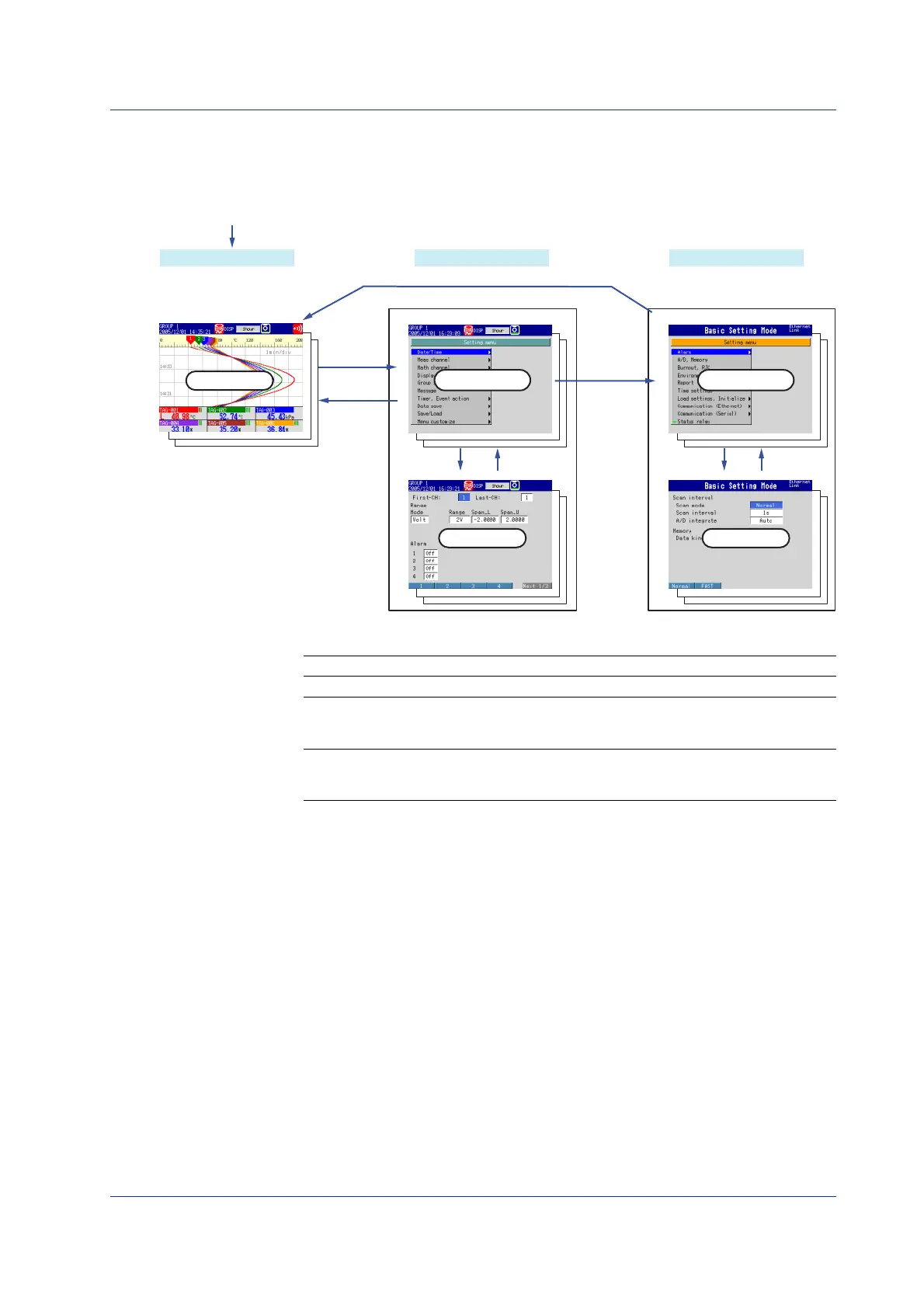

Mode Transition Diagram
Operation display
Setting menu
display
Setup display
Basic setting
menu display
Setup display
The DX has three modes.
Mode Description
Operation mode A mode for performing measurements.
Setting mode A mode in which input range, measurement method, and so on are
configured. Settings can be changed when memory sample is in
progress excluding some items.
Basic setting mode A mode used to set basic items such as the scan interval and storage
format of measured data. You cannot switch to this mode when memory
sample is in progress.
* For further details on the setting mode and basic setting mode, see page 59.
Carry out the steps given in the following pages. It will help you to understand the DX
operation.
Basic Operation
