York BP 036 User Manual

255027-YTG-B-0507
Unitary Products Group 39

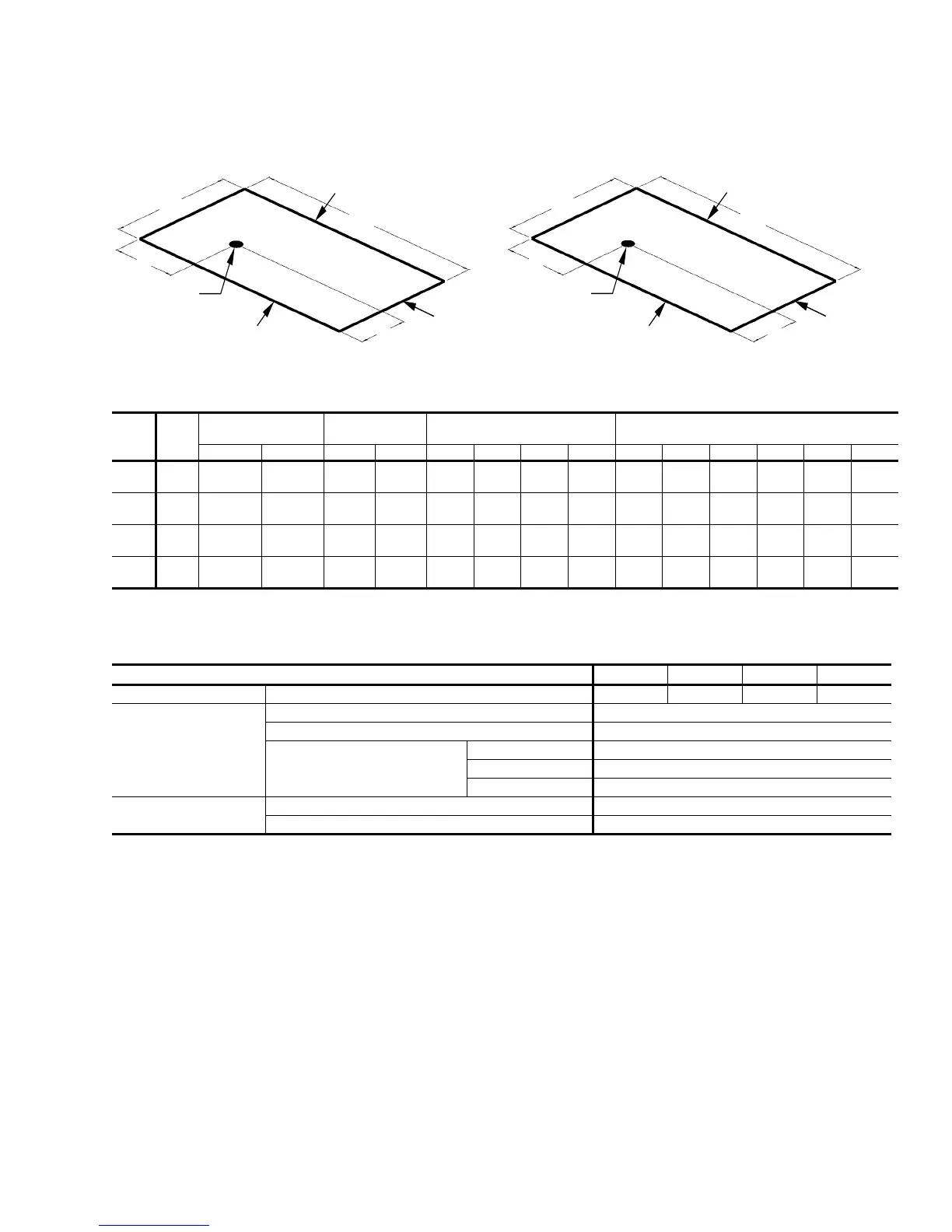

FIGURE 9 - FOUR AND SIX POINT LOADING
Size
(Tons)
Model
Weight (lbs.)
Center of
Gravity
4 Point Load Location (lbs.) 6 Point Load Location (lbs.)
ShippingOperatingX Y ABCDABCDEF
036
(3)
BP 580 575 39 20 135 121 151 168 91 85 80 99 106 114
048
(4)
BP 590 585 39 20 137 124 154 171 93 87 81 101 108 116
060
(5)
BP 595 590 39 20 138 125 155 172 94 87 82 102 109 117
072
(6)
BP 615 610 39 20 143 129 160 178 97 90 84 105 112 121
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
44
7
/
8
82
1
/
4
Y
X
A
B
C
D
E
F
CONDENSER COIL
END OF UNIT
FRONT OF UNIT
APPROXIMATE
CENTER OF GRAVITY
BACK OF UNIT
TABLE 30: OPERATING WEIGHTS (LBS.)
MODEL SIZE 3 TON4 TON5 TON6 TON
BASIC UNIT
BP 575 585 590 610
OPTIONS
Economizer 50
Motorized Damper 26
Electric Heater
5 - 7 kW 18
10 - 15 kW 23
20 - 30 kW 28
ACCY.
Roof Curb 92
Barometric Relief / Fixed Air Damper 10
