York MH User Manual

331471-YTG-A-0507
Unitary Products Group 11

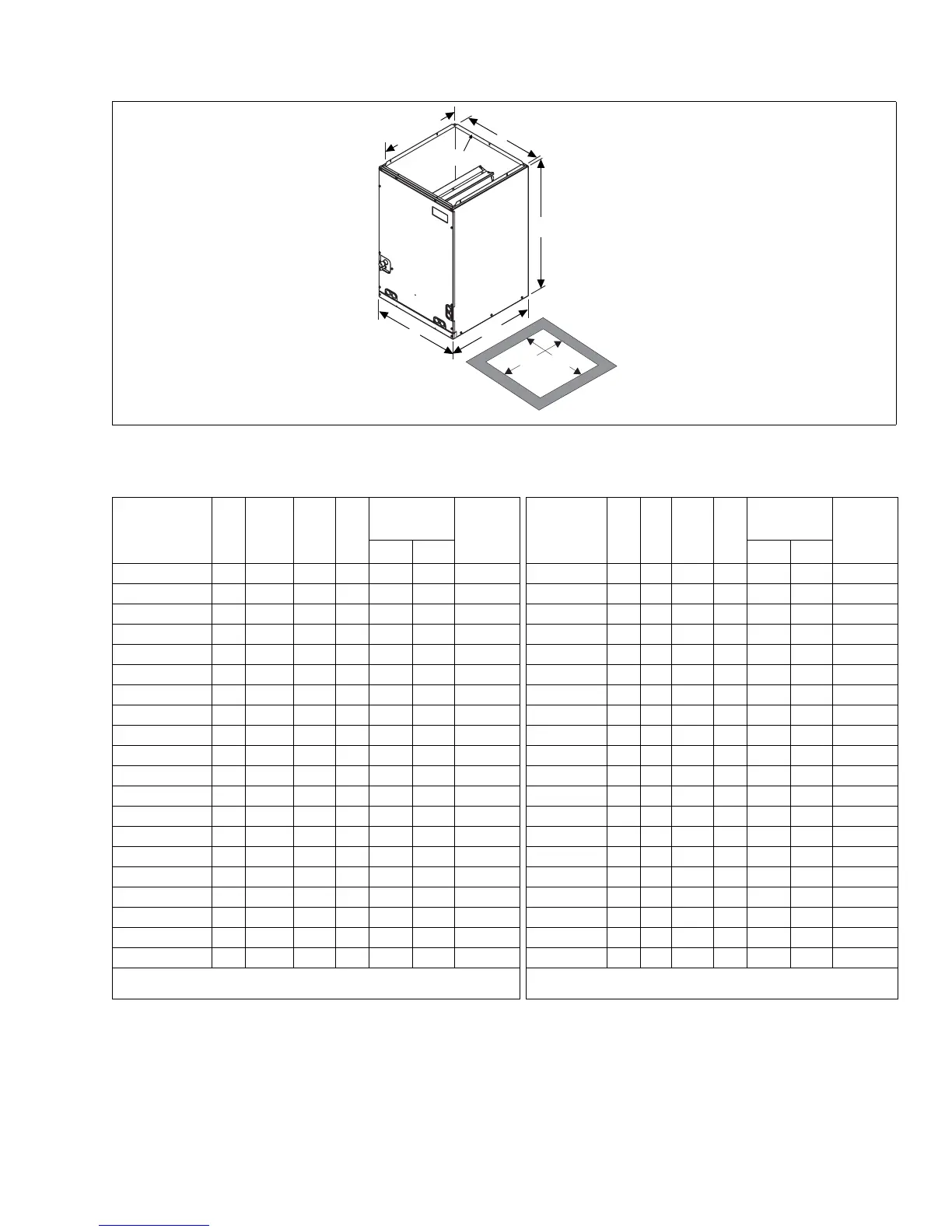

DIMENSIONS
COIL - MC
20 3/8”
(Opening)
A
C
3/4” Flange
B
22”
BOTTOM
OPENING
DIMENSIONS
D
20 1/4”
DIMENSIONS - MC COILS
Model A B C D
Refrigerant
Line Size
*
Factory
Installed
TXV (R22)
Model A B C D
Refrigerant
Line Size
†
Factory
Installed
TXV (R22)
Liquid Vapor Liquid Vapor
MC18A2AH1 14.5 22 13 3/8 13.5 3/8 3/4 A MC36C2AH1 21 26.5 19 7/8 20 3/8 7/8 A
MC18A3XH1 14.5 22 13 3/8 13.5 3/8 3/4 None MC36C3XH1 21 26.5 19 7/8 20 3/8 7/8 None
MC18B2AH1 14.5 22 13 3/8 13.5 3/8 3/4 A MC42B2CH1 17.5 32 16 3/8 16.5 3/8 7/8 C
MC18B3XH1 14.5 22 13 3/8 13.5 3/8 3/4 None MC42B3XH1 17.5 32 16 3/8 16.5 3/8 7/8 None
MC24A2AH1 14.5 26.5 13 3/8 13.5 3/8 3/4 A MC42C2CH1 21 32 19 7/8 20 3/8 7/8 C
MC24A3XH1 14.5 26.5 13 3/8 13.5 3/8 3/4 None MC42C3XH1 21 32 19 7/8 20 3/8 7/8 None
MC24B2AH1 17.5 26.5 16 3/8 16.5 3/8 3/4 A MC43C2CH1 21 26.5 19 7/8 20 3/8 7/8 C
MC24B3XH1 17.5 26.5 16 3/8 16.5 3/8 3/4 None MC43C3XH1 21 26.5 19 7/8 20 3/8 7/8 None
MC30A2AH1 14.5 26.5 13 3/8 13.5 3/8 3/4 A MC48C2CH1 21 32 19 7/8 20 3/8 7/8 C
MC30A3XH1 14.5 26.5 13 3/8 13.5 3/8 3/4 None MC48C3XH1 21 32 19 7/8 20 3/8 7/8 None
MC30B2AH1 17.5 26.5 16 3/8 16.5 3/8 3/4 A MC48D2CH1 24.5 32 23 3/8 23.5 3/8 7/8 C
MC30B3XH1 17.5 26.5 16 3/8 16.5 3/8 3/4 None MC48D3XH1 24.5 32 23 3/8 23.5 3/8 7/8 None
MC35B2AH1 17.5 22 16 3/8 16.5 3/8 3/4 A MC60D2CH1 24.5 32 23 3/8 23.5 3/8 7/8 C
MC35C2AH1 21 22 19 7/8 20 3/8 3/4 A MC60D3XH1 24.5 32 23 3/8 23.5 3/8 7/8 None
MC35B3XH1 17.5 22 16 3/8 16.5 3/8 3/4 None MC61D2CH1 24.5 36 23 3/8 23.5 3/8 7/8 C
MC35C3XH(1,2) 21 26.5/22 19 7/8 20 3/8 3/4 None MC61D3XH1 24.5 36 23 3/8 23.5 3/8 7/8 None
MC36A2AH1 14.5 26.5 13 3/8 13.5 3/8 7/8 A MC62C2CH1 21.0 36 19 7/8 20 3/8 7/8 C
MC36A3XH1 14.5 26.5 13 3/8 13.5 3/8 7/8 None MC62C3XH1 21.0 36 19 7/8 20 3/8 7/8 None
MC36B2AH1 17.5 26.5 16 3/8 16.5 3/8 7/8 A MC62D2CH1 24.5 36 23 3/8 23.5 3/8 7/8 C
MC36B3XH1 17.5 26.5 16 3/8 16.5 3/8 7/8 None MC62D3XH1 24.5 36 23 3/8 23.5 3/8 7/8 None
All MC coils include a factory installed horizontal drain pan.
(3X) = Models require field installed TXV.
All MC coils include a factory installed horizontal drain pan.
(3X) = Models require field installed TXV.
* Refrigerant line sizes may require larger lines for extended line lengths. See York bulletin #690.01-AD1V for details.
† Refrigerant line sizes may require larger lines for extended line lengths. See York bulletin #690.01-AD1V for details.
