York MH User Manual

331471-YTG-A-0507
12 Unitary Products Group
COIL - FC
20 3/8”
(Opening)
A
C
3/4” Flange
B
22”
BOTTOM
OPENING
DIMENSIONS
D
20 1/4”

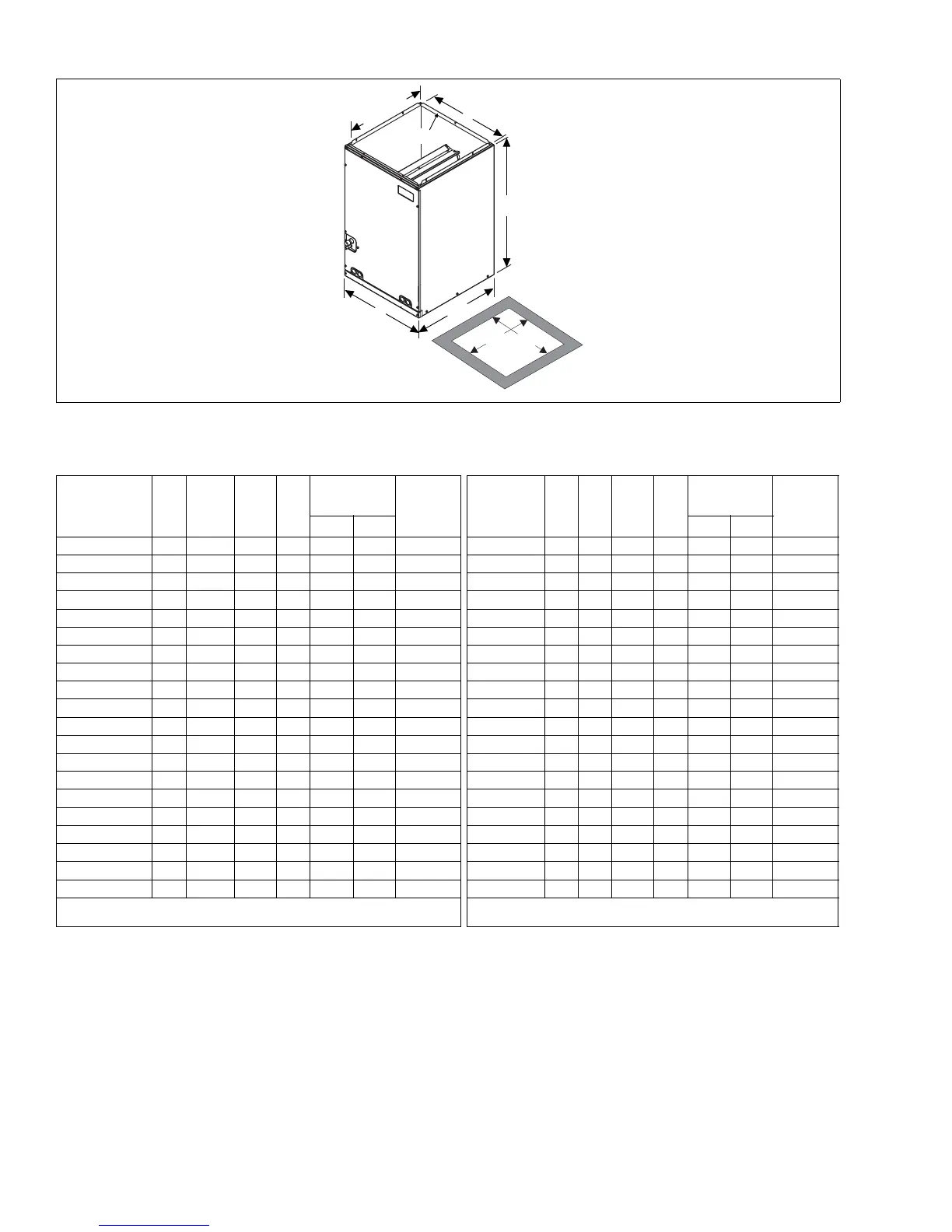

DIMENSIONS - FC COILS
Model A B C D
Refrigerant
Line Size
*
Factory
Installed
TXV (R22)
Model ABCD
Refrigerant
Line Size
†
Factory
Installed
TXV (R22)
Liquid Vapor Liquid Vapor
FC18A2AN1 14.5 18 13 3/8 13.5 3/8 3/4 A FC36C2AN1 21 24.5 19 7/8 20 3/8 7/8 A
FC18A3XN1 14.5 18 13 3/8 13.5 3/8 3/4 None FC36C3XN1 21 24.5 19 7/8 20 3/8 7/8 None
FC18B2AN1 14.5 18 13 3/8 13.5 3/8 3/4 A FC42B2CN1 17.5 28 16 3/8 16.5 3/8 7/8 C
FC18B3XN1 14.5 18 13 3/8 13.5 3/8 3/4 None FC42B3XN1 17.5 28 16 3/8 16.5 3/8 7/8 None
FC24A2AN1 14.5 22 13 3/8 13.5 3/8 3/4 A FC42C2CN1 21 28 19 7/8 20 3/8 7/8 C
FC24A3XN1 14.5 22 13 3/8 13.5 3/8 3/4 None FC42C3XN1 21 28 19 7/8 20 3/8 7/8 None
FC24B2AN1 17.5 22 16 3/8 16.5 3/8 3/4 A FC43C2CN1 21 24.5 19 7/8 20 3/8 7/8 C
FC24B3XN1 17.5 22 16 3/8 16.5 3/8 3/4 None FC43C3XN1 21 24.5 19 7/8 20 3/8 7/8 None
FC30A2AN1 14.5 22 13 3/8 13.5 3/8 3/4 A FC48C2CN1 21 28 19 7/8 20 3/8 7/8 C
FC30A3XN1 14.5 22 13 3/8 13.5 3/8 3/4 None FC48C3XN1 21 28 19 7/8 20 3/8 7/8 None
FC30B2AN1 17.5 22 16 3/8 16.5 3/8 3/4 A FC48D2CN1 24.5 28 23 3/8 23.5 3/8 7/8 C
FC30B3XN1 17.5 22 16 3/8 16.5 3/8 3/4 None FC48D3XN1 24.5 28 23 3/8 23.5 3/8 7/8 None
FC35B2AN1 17.5 20 16 3/8 16.5 3/8 3/4 A FC60C2CN1 21 28 19 7/8 20 3/8 7/8 C
FC35C2AN1 21 20 19 7/8 20 3/8 3/4 A FC60C3XN1 21 28 19 7/8 20 3/8 7/8 None
FC35B3XN2 17.5 20 16 3/8 16.5 3/8 3/4 None FC60D2CN1 24.5 28 23 3/8 23.5 3/8 7/8 C
FC35C3XN(1,2) 21 24.5/20 19 7/8 20 3/8 3/4 None FC60D3XN1 24.5 28 23 3/8 23.5 3/8 7/8 None
FC36A2AN1 14.5 24.5 13 3/8 13.5 3/8 7/8 A FC62C2CN1 21 32 19 7/8 20 3/8 7/8 C
FC36A3XN1 14.5 24.5 13 3/8 13.5 3/8 7/8 None FC62C3XN1 21 32 19 7/8 20 3/8 7/8 None
FC36B2AN1 17.5 24.5 16 3/8 16.5 3/8 7/8 A FC62D2CN1 24.5 32 23 3/8 23.5 3/8 7/8 C
FC36B3XN1 17.5 24.5 16 3/8 16.5 3/8 7/8 None FC62D3XN1 24.5 32 23 3/8 23.5 3/8 7/8 None
FC coils are not available with a factory installed horizontal drain pan.
(3X) = Models require field installed TXV.
FC coils are not available with a factory installed horizontal drain pan.
(3X) = Models require field installed TXV.
* Refrigerant line sizes may require larger lines for extended line lengths. See York bulletin #690.01-AD1V for details.
† Refrigerant line sizes may require larger lines for extended line lengths. See York bulletin #690.01-AD1V for details.
