York MH User Manual

331471-YTG-A-0507
Unitary Products Group 13
COIL - PC
20 3/8”
(Opening)
A
C
(Opening)
12”
B
22”
BOTTOM
OPENING
DIMENSIONS
20 1/4”
D

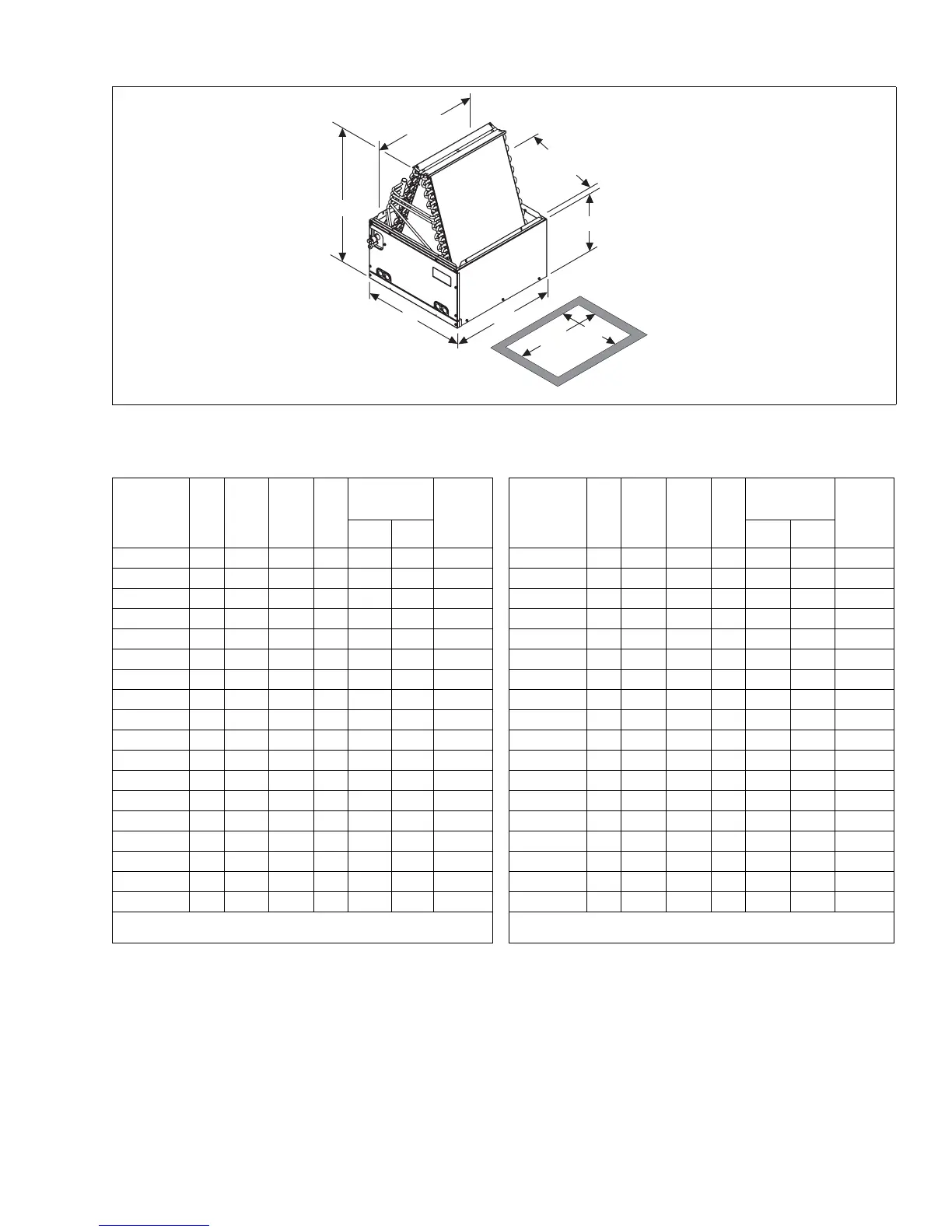

DIMENSIONS - PC COILS
Model A B C D
Refrigerant
Line Size
*
Factory
Installed
TXV
(R22)
Model A B C D
Refrigerant
Line Size
†
Factory
Installed
TXV
(R22)
Liquid Vapor Liquid Vapor
PC18A2AN1 14.5 17 3/4 13 3/8 13.5 3/8 3/4 A PC36B2AN1 17.5 23 1/8 16 3/8 16.5 3/8 7/8 A
PC18A3XN1 14.5 17 3/4 13 3/8 13.5 3/8 3/4 None PC36B3XN1 17.5 23 1/8 16 3/8 16.5 3/8 7/8 None
PC18B2AN1 14.5 17 13 3/8 13.5 3/8 3/4 A PC36C2AN1 21 22 7/8 19 7/8 20 3/8 7/8 A
PC18B3XN1 14.5 17 13 3/8 13.5 3/8 3/4 None PC36C3XN1 21 22 7/8 19 7/8 20 3/8 7/8 None
PC24A2AN1 14.5 21 7/8 13 3/8 13.5 3/8 3/4 A PC42B2CN1 17.5 27 5/8 16 3/8 16.5 3/8 7/8 C
PC24A3XN1 14.5 21 7/8 13 3/8 13.5 3/8 3/4 None PC42B3XN1 17.5 27 5/8 16 3/8 16.5 3/8 7/8 None
PC24B2AN1 17.5 21 3/8 16 3/8 16.5 3/8 3/4 A PC42C2CN1 21 27 1/8 19 7/8 20 3/8 7/8 C
PC24B3XN1 17.5 21 3/8 16 3/8 16.5 3/8 3/4 None PC42C3XN1 21 27 1/8 19 7/8 20 3/8 7/8 None
PC30A2AN1 14.5 21 7/8 13 3/8 13.5 3/8 3/4 A PC43C2CN1 21 22 5/8 19 7/8 20 3/8 7/8 C
PC30A3XN1 14.5 21 7/8 13 3/8 13.5 3/8 3/4 None PC43C3XN1 21 22 5/8 19 7/8 20 3/8 7/8 None
PC30B2AN1 17.5 21 3/8 16 3/8 16.5 3/8 3/4 A PC48C2CN1 21 25 3/8 19 7/8 20 3/8 7/8 C
PC30B3XN1 17.5 21 3/8 16 3/8 16.5 3/8 3/4 None PC48C3XN1 21 25 3/8 19 7/8 20 3/8 7/8 None
PC35B2AN1 17.5 18 7/8 16 3/8 16.5 3/8 3/4 A PC48D2CN1 24.5 24 5/8 23 3/8 23.5 3/8 7/8 C
PC35C2AN1 21 18 3/4 19 7/8 20 3/8 3/4 A PC48D3XN1 24.5 24 5/8 23 3/8 23.5 3/8 7/8 None
PC35B3XN1 17.5 18 7/8 16 3/8 16.5 3/8 3/4 None PC60C2CN1 21 27 1/2 19 7/8 20 3/8 7/8 C
PC35C3XN1 21 18 3/4 19 7/8 20 3/8 3/4 None PC60C3XN1 21 27 1/2 19 7/8 20 3/8 7/8 None
PC36A2AN1 14.5 23 7/8 13 3/8 13.5 3/8 7/8 A PC60D2CN1 24.5 26 7/8 23 3/8 23.5 3/8 7/8 C
PC36A3XN1 14.5 23 7/8 13 3/8 13.5 3/8 7/8 None PC60D3XN1 24.5 26 7/8 23 3/8 23.5 3/8 7/8 None
PC coils are not available with a factory installed horizontal drain pan.
(3X) = Models require field installed TXV.
PC coils are not available with a factory installed horizontal drain pan.
(3X) = Models require field installed TXV.
* Refrigerant line sizes may require larger lines for extended line lengths. See York bulletin #690.01-AD1V for details.
† Refrigerant line sizes may require larger lines for extended line lengths. See York bulletin #690.01-AD1V for details.
