York PCG6 24 Series User Manual

5219967-UTG-A-0716
14 Johnson Controls Unitary Products
ELECTRICAL DATA
Model Voltage
Compressor
OD Fan
Motor
Supply
Blower Motor
MCA
1
(Amps)
Max Fuse
2
/
Breaker
3
Size
(Amps)
RLA LRA MCC FLA FLA
24050 208/230-1-60 11.7 58.3 18.2 0.7 2.6 17.9 25
24075 208/230-1-60 11.7 58.3 18.2 0.7 3.8 19.1 30
30050 208/230-1-60 13.1 73.0 20.4 0.8 2.6 19.8 30
30075 208/230-1-60 13.1 73.0 20.4 0.8 3.8 21.0 30
36065 208/230-1-60 15.6 83.0 24.4 1.7 3.8 25.0 40
36100 208/230-1-60 15.6 83.0 24.4 1.7 5.4 26.6 40
42065, 42100 208/230-1-60 17.9 96.0 28.0 1.7 5.4 29.5 45
48065, 48100, 48125 208/230-1-60 21.2 104.0 33.0 1.7 5.4 33.6 50
60065, 60100, 60125 208/230-1-60 26.9 152.9 42.0 1.7 7.0 42.3 60
1. Minimum Circuit Ampacity.
2. Maximum Over Current Protection per standard UL 1995.
3. Fuse or HACR circuit breaker size installed at factory or field installed.

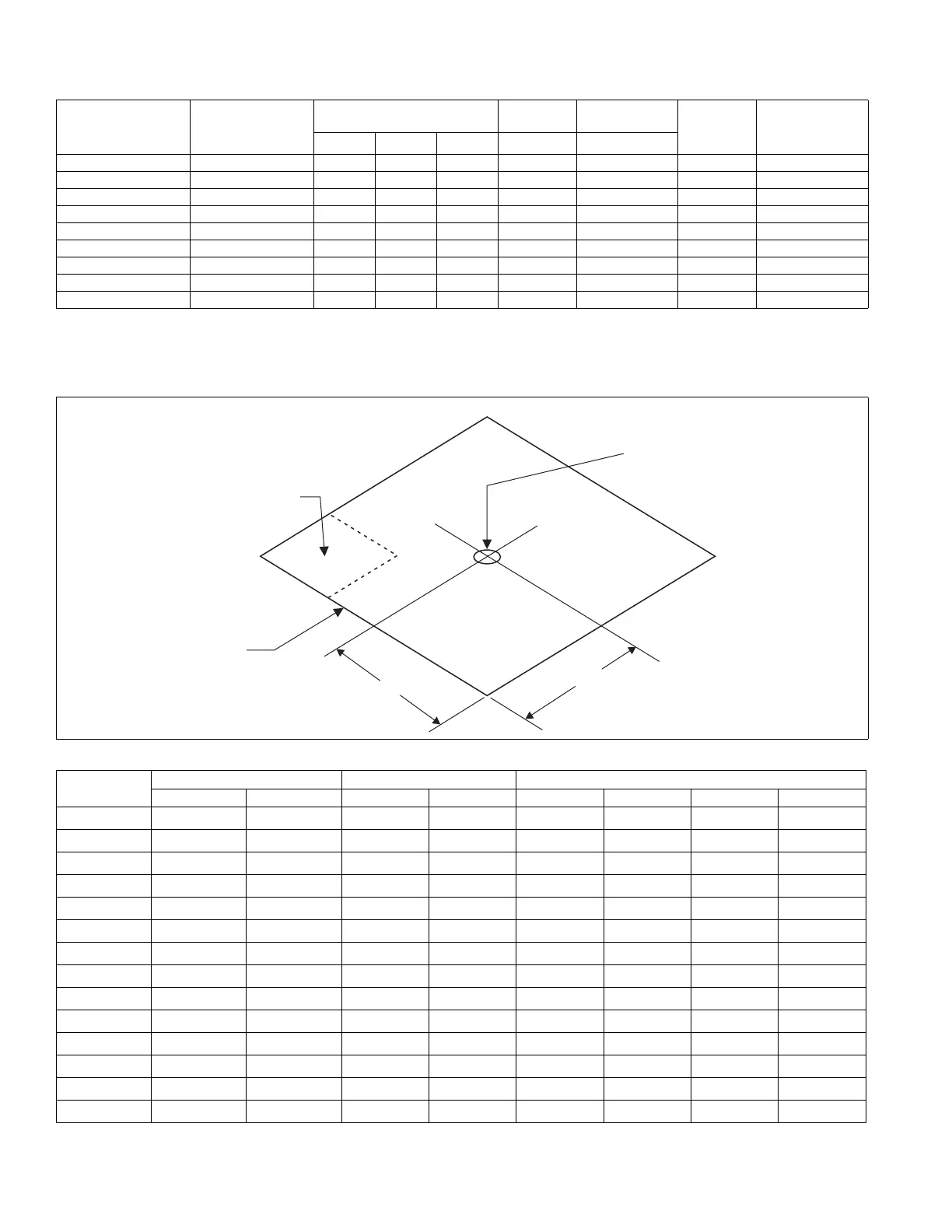

WEIGHTS & DIMENSIONS
Model
Weight (lbs.) Center of Gravity 4 Point Load Location (lbs.)
ShippingOperatingXYABCD
24050 372 367 28 15 120 95 81 71
24075 382 377 28 15 124 96 81 76
30050 417 412 28 15 139 99 90 84
30075 421 416 28 15 146 93 82 95
36065 466 461 28 15 161 113 96 91
36100 473 468 28 15 163 114 101 90
42065 500 495 28 15 175 123 104 93
42100 502 497 28 15 176 124 101 96
48065 520 515 28 15 189 116 93 117
48100 528 523 28 15 169 139 115 100
48125 533 528 28 15 164 145 124 95
60065 537 532 29 15 174 142 124 92
60100 541 536 28 15 177 140 117 102
60125 548 543 27 15 151 167 141 84
X
CENTER OF
GRAVITY
FRONT
OF UNIT
Y
"D"
"C"
"B"
"A"
A0295-001-TG
COMPRESSOR
