036-21502-003-A-1105

Unitary Products Group 41

TABLE 32: OPERATING WEIGHTS (LBS.)

MODEL SIZE 3 TON 4 TON 5 TON 6 TON

BASIC

UNIT

DM (Cooling Only) 565 615 640 720

(Gas/Electric)

N04 605 - - -

N06 - 665- -

N08 625-700 780

N10 - 685 710 790

D06615 665 690 770

D10 635 685 710 790

OPTIONS

Economizer 50

Motorized Damper 26

Electric Heater

5 - 7 kW18

10 - 15 kW 23

20 - 30 kW 28

ACCY.

Roof Curb 92

Barometric Relief / Fixed Air Damper 10

Belt-Drive Blower 5

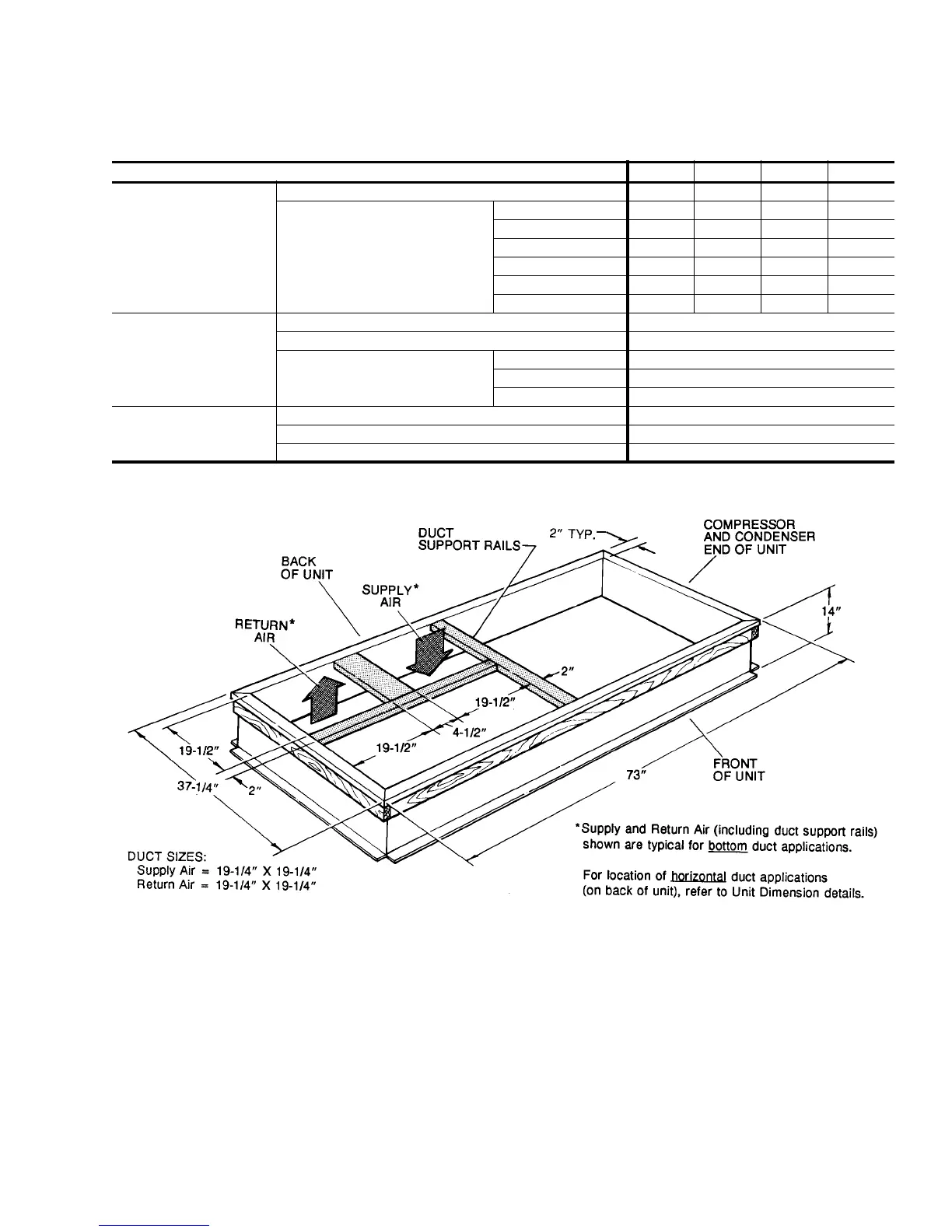

FIGURE 11 - ROOF CURB DIMENSIONS

Description1
Table of Contents2
Product Nomenclature3
Features11
Factory-Installed Options12
Unit Cutaway12
Field-Installed Accessories13
Sound Power Rating15
Capacity Ratings - (Ari 210/240)15
Gas Heat Ratings15
2 Stage Gas Heat Ratings15
Dm036 Cooling Capacities (3 Ton)16
Dm048 Cooling Capacities (4 Ton)17
Dm060 Cooling Capacities (5 Ton)18
Dm072 Cooling Capacities (6 Ton)19
- Supply Air Blower Performance (3 Ton Belt Drive) - Side Duct Application20
- Supply Air Blower Performance (4 Ton Belt Drive) - Side Duct Application21
- Supply Air Blower Performance (5 Ton Belt Drive) - Side Duct Application22
- Supply Air Blower Performance (6 Ton Belt Drive) - Side Duct Application23
- Supply Air Blower Performance (3 - 6 Ton Direct Drive) - Side Duct Application24
Pg. # 14 BELT DRIVE BLOWER MOTOR and DRIVE DATA24
- Static Resistances25
- Electric Heater Cfm Limitations25
- Electrical Data - Dm036 & 048 Direct Drive Without Powr'D Convenience Outlet26
- Electrical Data - Dm060 & 072 Direct Drive Without Powr'D Convenience Outlet27
- Electrical Data - Dm036 & 048 Belt Drive Without Powr'D Convenience Outlet28
- Electrical Data - Dm060 & 072 Belt Drive Without Powr'D Convenience Outlet29
- Electrical Data - Dm036 & 048 Direct Drive with Powr'D Convenience Outlet30
- Electrical Data - Dm060 & 072 Direct Drive with Powr'D Convenience Outlet31
- Electrical Data - Dm036 & 048 Belt Drive with Powr'D Convenience Outlet32
- Electrical Data - Dm060 & 072 Belt Drive with Powr'D Convenience Outlet33
Pg. # 25 PHYSICAL DATA34
- Electric Heat Correction Factors34
- Voltage Limitations34
Typical Field Power & Control Wiring35
Unit Dimensions (3 - 6 Ton Cooling Only/ Electric Heat) Front View36
Front View36
Unit with Economizer Rainhood37
Unit with Fixed Outdoor Air/Motorized Damper Rainhood37
Unit Dimensions (Rear View)38
Disconnect/Blower Access Location38
- Utilities Entry38
- Minimum Clearances38
Typical Applications39
Four and Six Point Loading40
- DM 4 and 6 Point Loads Weight Distribution40
- Center of Gravity40
Roof Curb Dimensions41
- Operating Weights (Lbs.)41
Guide Specifications42
