York YCAL0022 User Manual

JOHNSON CONTROLS
144
FORM 150.67-NM1
ISSUE DATE: 4/28/2017
SECTION 5 – TECHNICAL DATA
WEIGHT RANGE
(LBS)
WEIGHT RANGE
(KG)
MODEL NUMBER COLOR YORK P/N
UP TO 751 LBS UP TO 341 KG ND-C YELLOW 029-24584-001
751 TO 1651 LBS 341 TO 749 KG ND-D YELLOW 029-24584-002
1651 TO 3226 LBS 749 TO 1463 KG ND-DS YELLOW 029-24584-004
ENGLISH (Inches)
SIZE D H L T W BC CS MBD
ND-C 2-9/16 2-3/ 4 5-1/ 2 1/4 2-5/16 4-1/8 1/2-13 X 1 1/ 2
ND-D 3-3/8 2-3/4 6-1/4 5/16 4 5 1/2-13 X 1 1/ 2
ND-DS 3-3/8 2-3/4 6-1/4 5/16 4 5 1/2-13 X 1 1/ 2
SI (mm)
ND-C 65.1 69.9 139.7 6.4 58.7 101.9 1/2- 13 X 1” 12.7
ND-D 85.7 69.9 158.8 7.9 101.6 127.0 1/2- 13 X 1” 12.7
ND-DS 85.7 69.9 158.8 7.9 101.6 127.0 1/2- 13 X 1” 12.7
ND-X
NEOPRENE ISOLATOR CROSS-REFERENCE
Units shipped before June 15, 2008
Top & Bottom -
Steel Plates.
Neoprene covered
to prevent corosion
and provide friction.
“CS” CAP SCREW
“MBD” MAXIUM
BOLT DIAMETER
D
H
W
T
BC
L
Mod Mason ND.eps

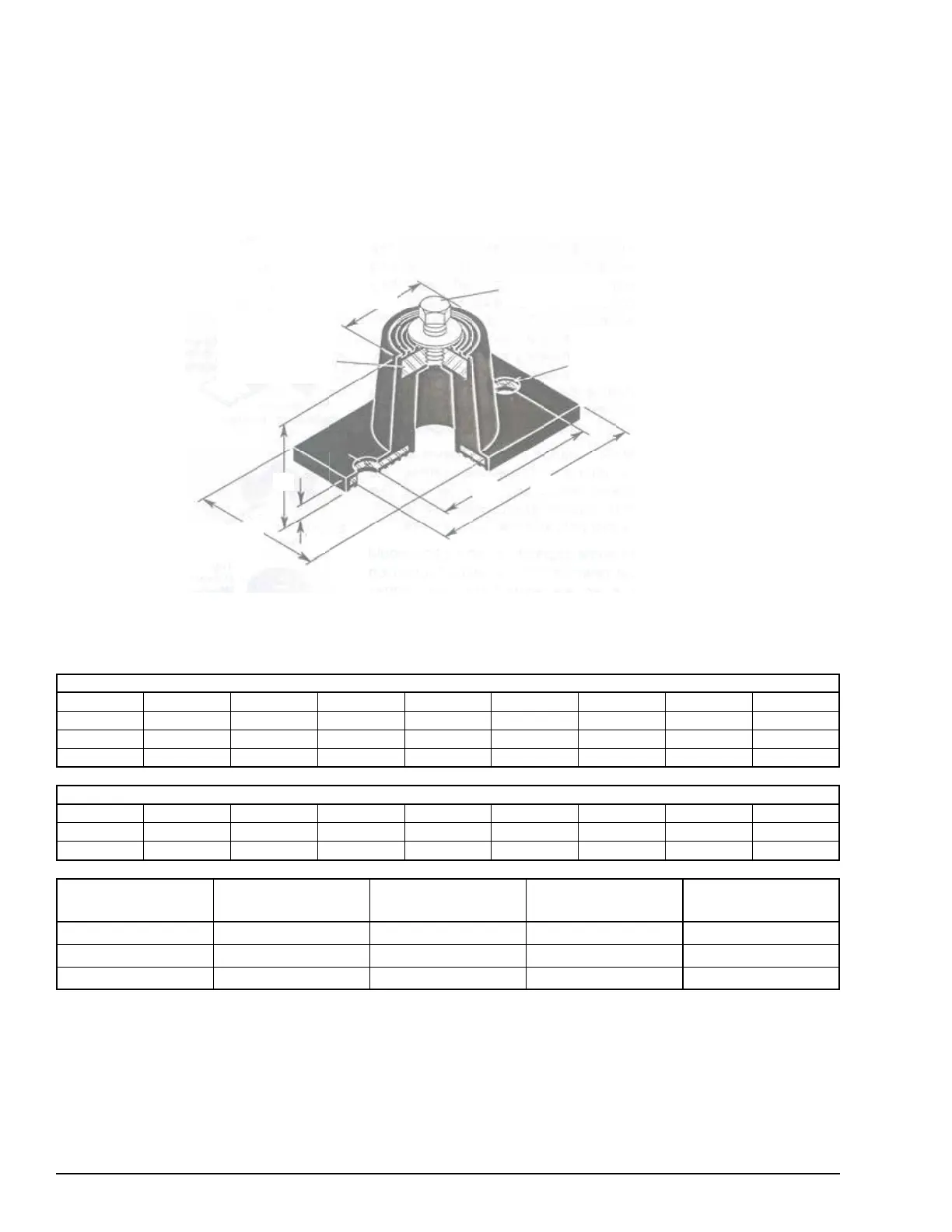

FIGURE 38 - NEOPRENE ISOLATOR CROSS-REFERENCE
