Technical Data

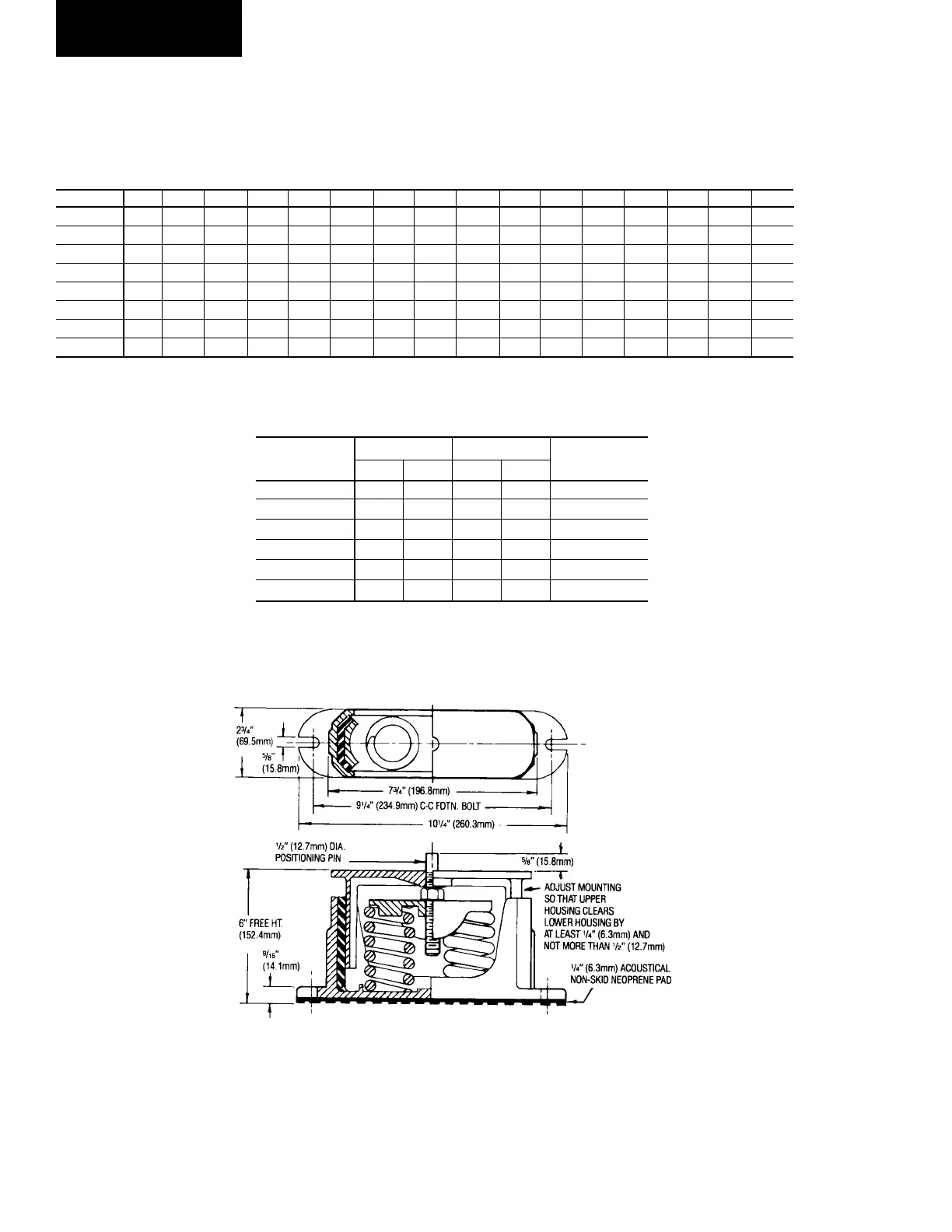

FIG. 57 – CP-2-XX
Copper Fin Condenser Coils
WEIGHT DISTRIBUTION AND ISOLATOR MOUNTING POSITIONS
ISOLATOR
MAX LOAD DEFL.
SPRING
TYPE & SIZE
lbs. kg in. mm
COLOR
CP-2-26 1,200 544.3 1.17 29.7 Purple
CP-2-27 1,500 680.4 1.06 26.9 Orange
CP-2-28 1,800 816.4 1.02 25.9 Green
CP-2-31 2,200 997.9 0.83 21.0 Gray
CP-2-32 2,600 1,179.3 0.74 18.7 White
CP-2-35 3,000 1,360.8 0.70 17.7 Gold
ISOLATOR DETAILS
LD01089
Technical Data
COPPER FINS , 1" ISOLATOR SELECTIONS – VMC TYPE CP -2-XX – (See Table below)
MODEL A B C D E F G H I J K L M N O P
YCAS0685 2-31 2-32 2-32 2-27 2-31 2-31 2-35 2-32 2-28 2-35 —- —- —- —- —- —-
YCAS0775 2-31 2-31 2-32 2-28 2-27 2-28 2-31 2-31 2-35 2-28 2-28 2-32 —- —- —- —-
YCAS0835 2-31 2-31 2-32 2-28 2-27 2-28 2-31 2-31 2-35 2-28 2-28 2-32 —- —- —- —-
YCAS0905 2-31 2-31 2-32 2-28 2-27 2-28 2-31 2-31 2-35 2-28 2-28 2-32 —- —- —- —-
YCAS0965 2-31 2-31 2-32 2-27 2-27 2-27 2-26 2-25 2-31 2-28 2-32 2-28 2-31 2-31 2-26 2-25
YCAS1065 2-31 2-31 2-31 2-27 2-32 2-28 2-27 2-35 2-31 2-31 2-28 2-28 2-35 2-27 2-27 2-35
YCAS1135 2-31 2-31 2-31 2-27 2-32 2-28 2-27 2-35 2-31 2-31 2-28 2-28 2-35 2-27 2-27 2-35
YCAS1215 2-31 2-31 2-31 2-27 2-32 2-28 2-27 2-35 2-31 2-31 2-28 2-28 2-35 2-27 2-27 2-35
