York YCAS Series User Manual

114
YORK INTERNATIONAL
FORM 201.19-NM8 (804)
Technical Data

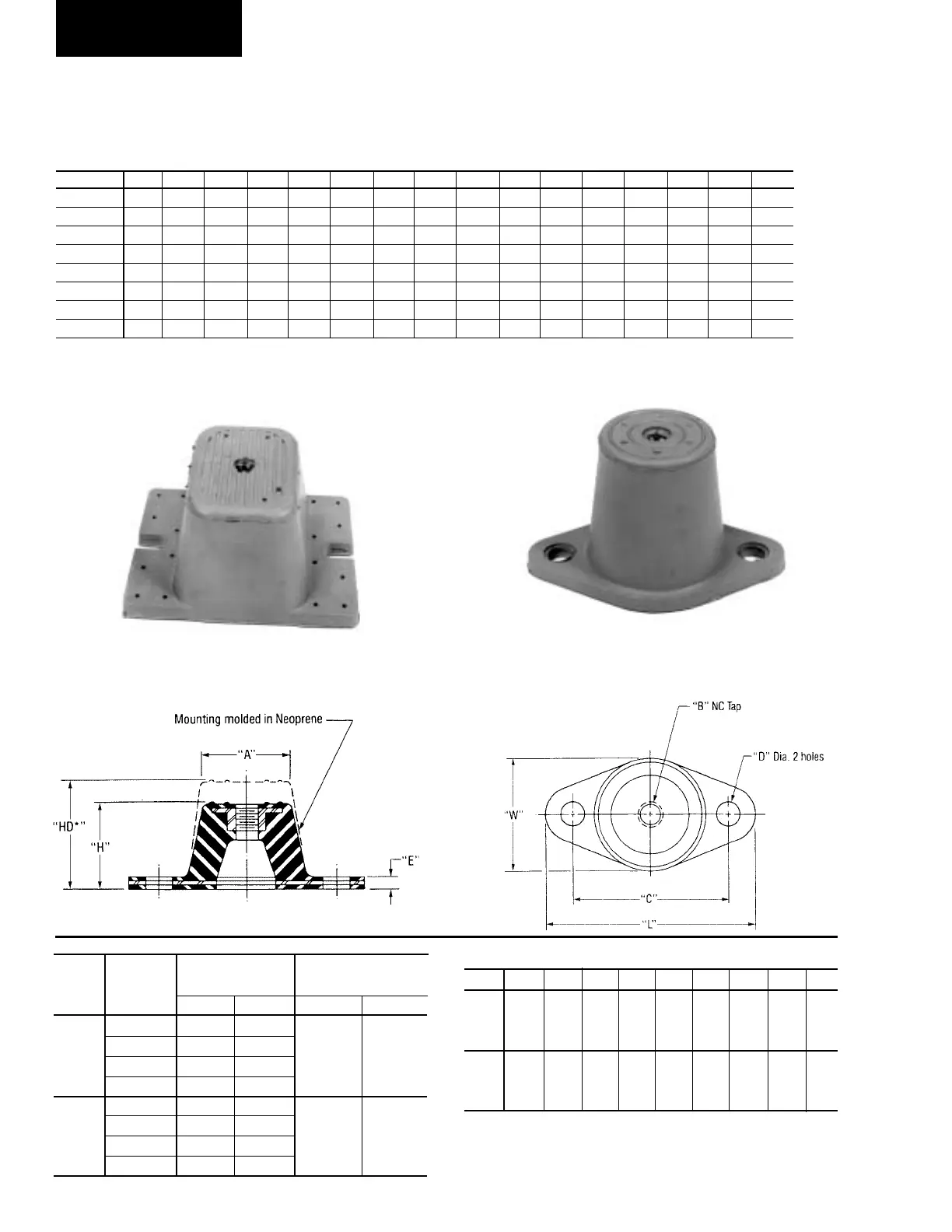

WEIGHT DISTRIBUTION AND ISOLATOR MOUNTING POSITIONS
DEFLECTION
COLOR MAX. LOAD
ins. (mm)
TYPE
CODE
lbs. (kg) R RD
R-3
BLACK 250 (113.5)
0.25 0.50
OR
RED 525 (238.3)
(6.3) (12.7)
RD-3
GREEN 750 (340.5)
GRAY 1,100 (499.4)
R-4
BLACK 1,500 (681.0)
0.25 0.50
OR
RED 2,250 (1,021.5)
(6.3) (12.7)
RD-4
GREEN 3,000 (1,362.0)
GRAY 4,000 (1,816.0)
LD04033
TYPE R OR RD
IF BOLTING IS PREFERRED–
Type R or RD mountings are furnished with a tapped
hole in the center. This enables the equipment to be
bolted securely to the mounting.
TYPE R OR RD
NO BOLTING IS PREFERRED–
Type R or RD mountings are may be used
without bolting under machines having no
lateral or severe vertical motion.
NEW DESIGN FOR TYPE RD-4
NEOPRENE MOUNTINGS.
TYPE RD-3
LD04033
29518A
29517A
TYPE L W H *HD A B C D E
R-3
5-1/2" 3-3/8" 1-3/4" 2-7/8" 2-1/2" 1/2" 4-1/8" 9/16" 1/4"
OR
(139.7) (85.8) (44.4) (73.2) (63.5) (12.7) (104.8) (14.4) (6.3)
RD-3
R-4
6-1/4" 4-5/8" 1-5/8" 2-3/4" 3" 1/2" 5" 9/16" 3/8"
OR
(158.7)(117.6) (41.4) (69.8) (76.2) (12.7) (127.0) (14.4) (9.6)
RD-4
DIMENSIONS: ins. (mm)
* HD dimension applies to double defl ection Type RD mountings only.
ALUMINUM FIN WITH OPTIONAL SILENCER KIT, NEOPRENE MOUNT SELECTIONS – VMC TYPE RD-X –
(See Table below)
MODEL A B C D E F G H I J K L M N O P
YCAS0685 -4 Red -4 Grn -4 Grn -4 Blk -4 Red -4 Red -4 Grn -4 Grn -4 Red -4 Grn —- —- —- —- —- —-
YCAS0775 -4 Red -4 Red -4 Grn -4 Red -4 Blk -4 Red -4 Red -4 Red -4 Grn -4 Red -4 Red -4 Grn —- —- —- —-
YCAS0835 -4 Red -4 Red -4 Grn -4 Red -4 Blk -4 Red -4 Red -4 Red -4 Grn -4 Red -4 Red -4 Grn —- —- —- —-
YCAS0905 -4 Red -4 Red -4 Grn -4 Red -4 Blk -4 Red -4 Red -4 Red -4 Grn -4 Red -4 Red -4 Grn —- —- —- —-
YCAS0965 -4 Red -4 Red -4 Grn -4 Blk -4 Blk -4 Blk -3 Gray -3 Grn -4 Red -4 Red -4 Grn -4 Red -4 Red -4 Red -3 Gray -3 Grn
YCAS1065 -4 Red -4 Red -4 Red -4 Blk -4 Grn -4 Red -4 Blk -4 Grn -4 Red -4 Red -4 Red -4 Red -4 Grn -4 Blk -4 Blk -4 Grn
YCAS1135 -4 Red -4 Red -4 Red -4 Blk -4 Grn -4 Red -4 Blk -4 Grn -4 Red -4 Red -4 Red -4 Red -4 Grn -4 Blk -4 Blk -4 Grn
YCAS1215 -4 Red -4 Red -4 Red -4 Blk -4 Grn -4 Red -4 Blk -4 Grn -4 Red -4 Red -4 Red -4 Red -4 Grn -4 Blk -4 Blk -4 Grn
