York YCD42B23S User Manual

5752570-YTG-C-1020
Johnson Controls Ducted Systems 3
‡ Adapter fitting must be field installed for the required 1 1/8 in. line set.
All dimensions are in inches and are subject to change without notice.
Overall height is from the bottom of the base pan to the top of the fan guard.
Overall length and width include screw heads.

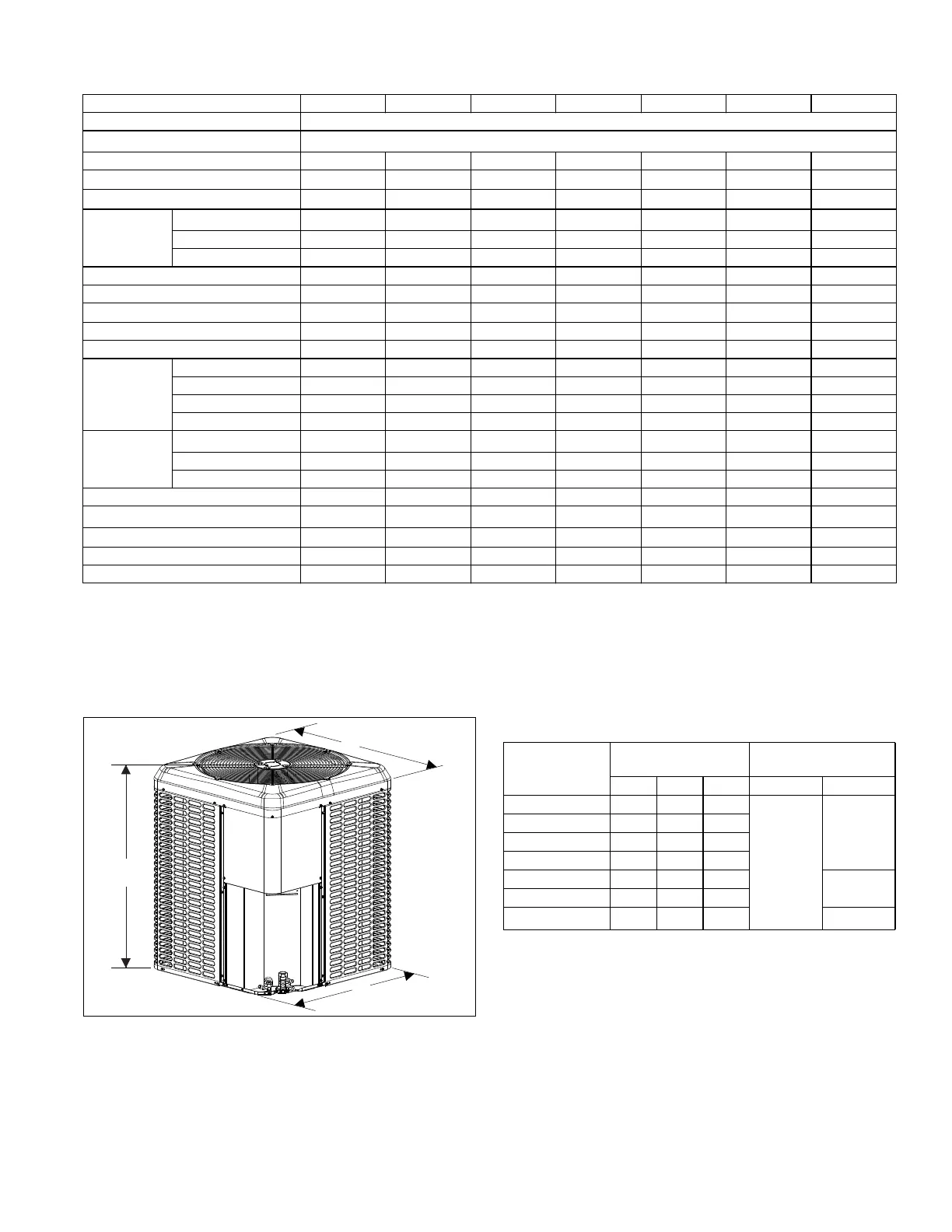

PHYSICAL AND ELECTRICAL DATA
MODEL YCD18B22S YCD24B23S YCD30B22S YCD36B23S YCD42B23S YCD48B21S YCD60B22S
Unit Supply Voltage 208-230 V, 1 60 Hz
Normal Voltage Range
1
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
187 to 252
Minimum Circuit Ampacity 12.9 11.4 18.4 19.8 21.1 28.5 29.1
Maximum Overcurrent Device (A)
2
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
20 15 30 30 35 50 50
Minimum Overcurrent Device (A)
3
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
15 15 20 20 25 30 30
Compressor
Type
4
4. Rotary compressor models are limited to an equivalent length of lineset of 100 ft with no exceptions.
Scroll Rotary Scroll Scroll Scroll Scroll Scroll
Rated Load 9.7 8.4 14.1 14.7 15.9 21.8 22.2
Locked Rotor 46.0 53.0 73.0 75 112.3 117.0 127.9
Crankcase Heater No No No No No No No
Factory External Discharge Muffler No No No No No No No
HS Kit Required with TXV
No n/a No No No No No
HS Kit Part Number (S1-2SA067*****)
5
5. Use S1-2SA067***** series kit. Refer to the Hard Start Kit Accessory Installation Manual.
21806 n/a 10106 10106 10206 10106 10206
Fan Diameter (in.) 18 18 18 18 22 22 22
Fan Motor
Rated HP 1/8 1/8 1/8 1/4 1/4 1/4 1/4
Rated Load (A) 0.80 0.80 0.80 1.50 1.30 1.30 1.30
Nominal RPM 1075 1075 1075 1100 850 850 850
Nominal CFM 1950 1950 2150 2575 2925 3225 3350
Coil
Face Area (ft
2
)
9.78 9.78 11.07 12.37 13.83 13.83 17.37
Rows Deep 1111111
Fins/Inch 23 23 23 23 23 23 23
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed)
6
6. For applications with non-standard vapor line sizes, see the APPLICATIONS AND ACCESSORIES section.
3/4 3/4 3/4 3/4 7/8 7/8
1-1/8
‡
Unit Charge (lb - oz)
7
7. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 ft of refrigerant tubing. For tubing lengths other than 15 ft, add or subtract the
amount of refrigerant, using the difference in actual lineset length (not the equivalent length) multiplied by the per foot value.
2 - 13 3 - 7 3 - 10 3 - 12 4 - 6 4 - 8 5 - 1
Charge (oz/ft) 0.62 0.62 0.62 0.62 0.67 0.67 0.75
Operating Weight (lb) 125 130 140 165 175 165 190
&
%
$
$
DIMENSIONS
Unit
Model
Dimensions
(in.)
Refrigerant Connection
Service Valve Size
A B C Liquid Vapor
YCD18B22S 26 3/4 24 24
3/8
3/4
YCD24B23S 26 3/4 24 24
YCD30B22S 30 24 24
YCD36B23S 33 1/4 24 24
YCD42B23S 30 29 1/4 29 1/4
7/8
YCD48B21S 30 29 1/4 29 1/4
YCD60B22S
36 1/4 29 1/4 29 1/4
7/8
‡
