YORK INTERNATIONAL
7
FORM 150.63-RP5 (903)
Piping
REFRIGERANT PIPING COMPONENTS
CHILLER MODEL YCUL

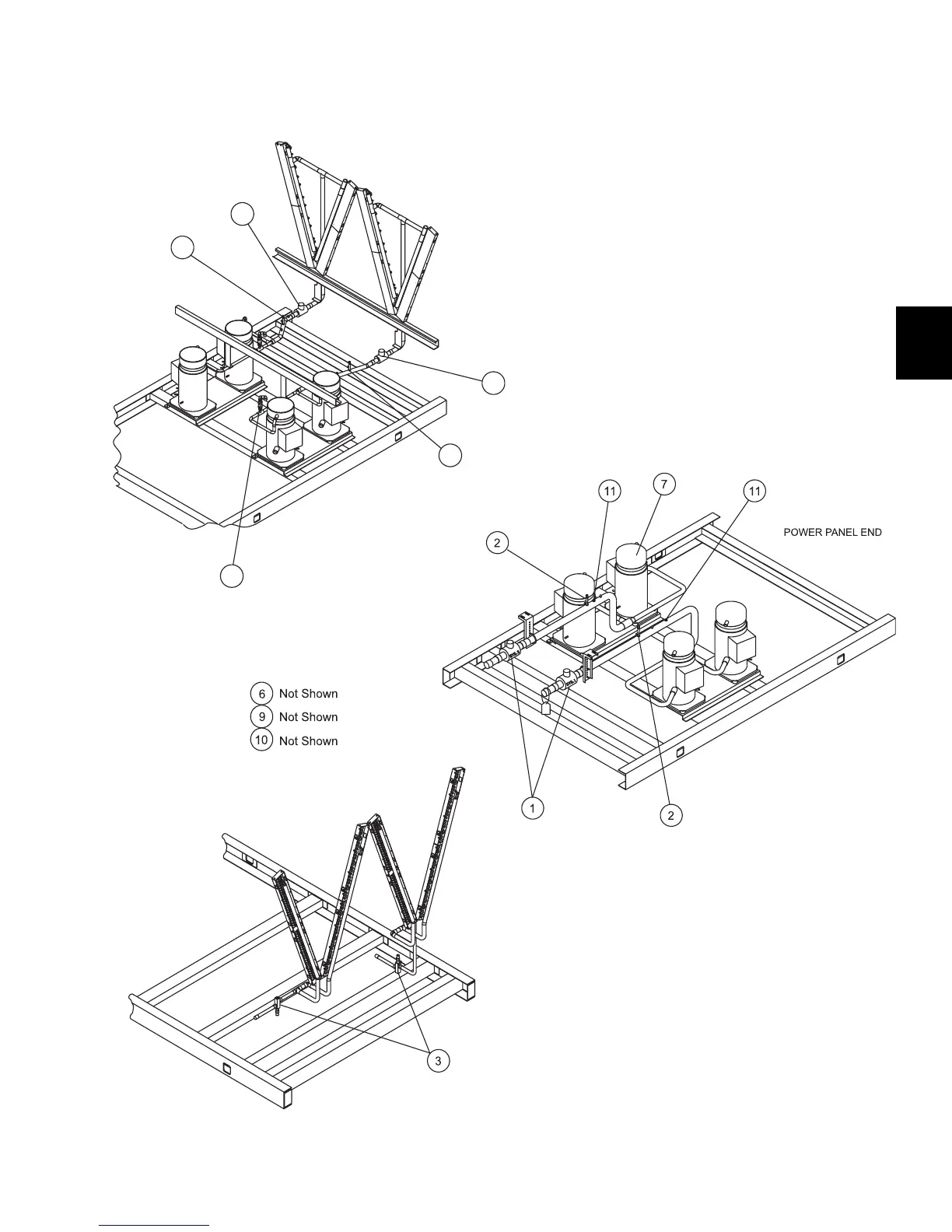

FIG. 3 – REFRIGERANT PIPING COMPONENTS - MODEL YCUL0046 SHOWN
(REF. TABLE 3, PAGES 8 AND 9)
28566-100-01
SYSTEM 2
SYSTEM 1
SUCTION PIPING
28566-100-02a
LIQUID
REFRIGERANT
PIPING
28566-100-03b
DISCHARGE
PIPING
5
5
4
4
8
