JOHNSON CONTROLS

FORM 150.72-ICOM6

ISSUE DATE: 08/03/2022

SECTION 5 – TECHNICAL DATA

CONNECTION - EEV OPTION

LD27951

STEP-1

STEP-2

STEP-3

POLARITY

DIRECTION

RESPONSE TIME

PULSE PER SECOND

VALVE OPERATION

INPUT CONFIGURATION

TO SYSTEM #1 EEV

P15 TO MICROBOARD

STEP-1

STEP-2

STEP-3

POLARITY

DIRECTION

RESPONSE TIME

PULSE PER SECOND

VALVE OPERATION

INPUT CONFIGURATION

TO SYSTEM #2 EEV

P15 TO MICROBOARD

FROM TRANSFORMER -1

=2-EEVC

S+

J15-4

S-

J15-8

OPN

CLS

REF

BLK

WHT

GRN

RED

24V+

42A

24V-

43A

OFF

STD

200pps

STD

0-10V

=1-EEVC

S+

J15-3

S-

J15-7

OPN

CLS

REF

BLK

WHT

GRN

RED

24V+

24V-

OFF

STD

200pps

STD

0-10V

035-21499-105

Rev C

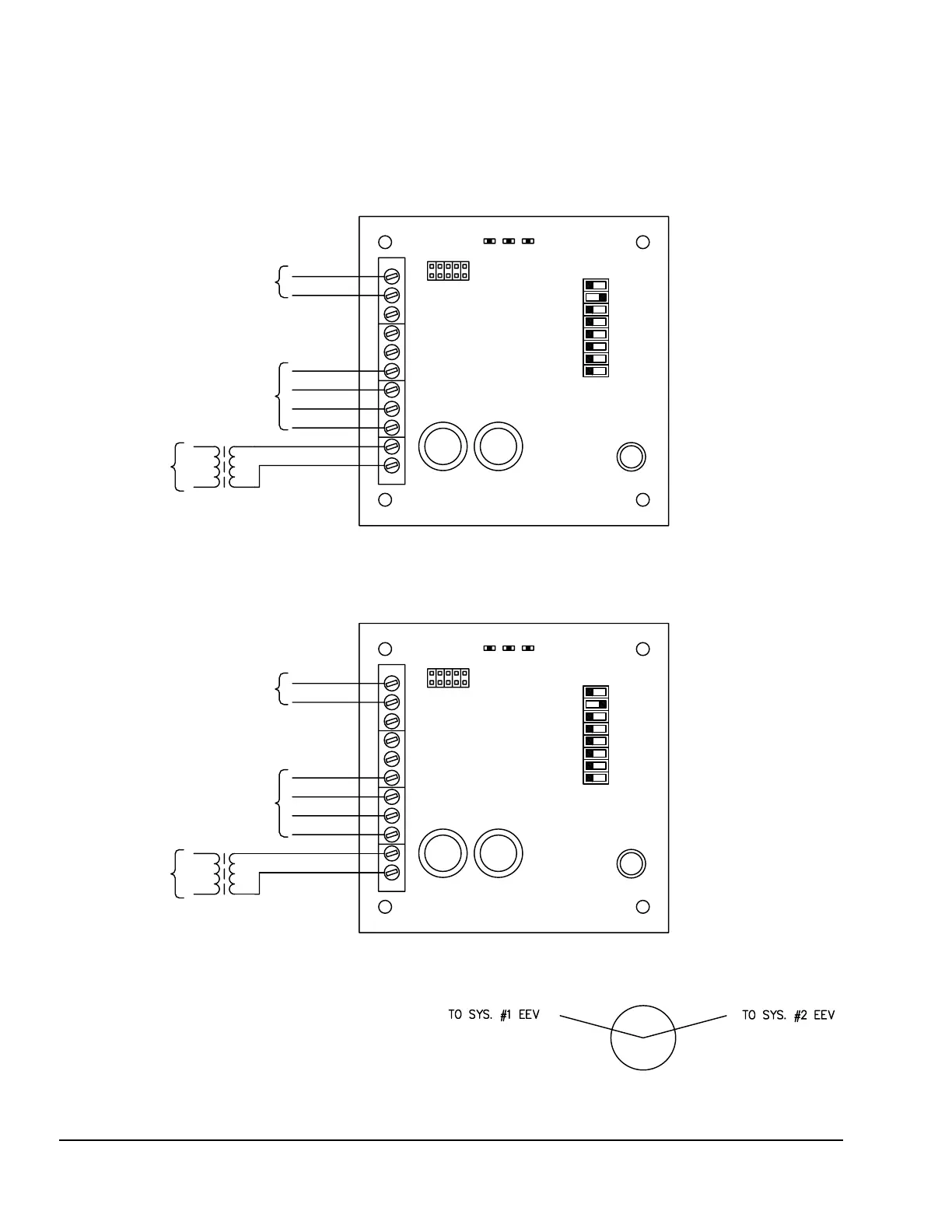

FIGURE 22 - EEV CONTROLLER ELEMENTARY DIAGRAM
