JOHNSON CONTROLS
96
FORM 150.72-ICOM6
ISSUE DATE: 08/03/2022
SECTION 5 – TECHNICAL DATA
EIGHT FAN UNITS
DIMENSIONS – YLAA0125HE, YLAA0136SE,
YLAA0139HE, YLAA0142HE, YLAA0150SE, YLAA0155SE
035-24059-010 REV-D
LD26941
POWER ENTRY
330.2 [13.00] WIDE X 177.8 [7.00] HIGH
CONTROL PANEL BOTTOM DETAIL
20.7 [0.81]
1177.0 [46.35]
4” VICTAULIC
INLET
4” VICTAULIC
OUTLET
MOUNTING
136.8 [5.38]
36.4 [1.43]
MOUNTING
HOLES TYPE
36.4 [1.43]
254.4 [10.02]
822.400 [32.3780]
WATER CONNECTIONS
885.9 [34.88]
4731.4 [186.28]
FRAME LENGTH
4768.9 [187.75]
588.3 [23.16]
15.9 [0.63]
MOUNTING
HOLES TYPE
1917.9 [75.51]
1518.6 [59.79]
1753.2 [69.03]
194.6 [7.66]
1473.2 [58.00]
1275.7 [50.22]
685.7 [27.00]
(OPTIONAL HEAT
RECOVERY UNIT)
FRAME HEIGHT
2248.0 [88.50]
FRAME WIDTH
OVERALL WIDTH
2255.7 [88.81]
2242.0 [88.27]
221 [8.7] OR 288.0 [11.34]
DIMENTION VARIES BASED
ON CHILLER SELECTED
3” VICTAULIC OUTLET
3” VICTAULIC INLET
2077.3 [81.78]
82.9 [3.26]
NOTE:
Placement on a level surface free of obstructions (including snow, for winter operation) or air circulation ensures rated performance, reliable
operation, and ease of maintenance. Site restrictions may compromise minimum clearances indicated below, resulting in unpredictable airow
patterns and possible diminished performance. Johnson Control’s unit controls will optimize operation without nuisance high-pressure safety
cutouts; however, the system designer must consider potential performance degradation. Access to the unit control center assumes the unit is
no higher than on spring isolators. Recommended minimum clearances: Side to wall – 6 ft; rear to wall – 6 ft; control panel to end wall – 4 ft;
top – no obstructions allowed; distance between adjacent units – 10 ft. No more than one adjacent wall may be higher than the unit.

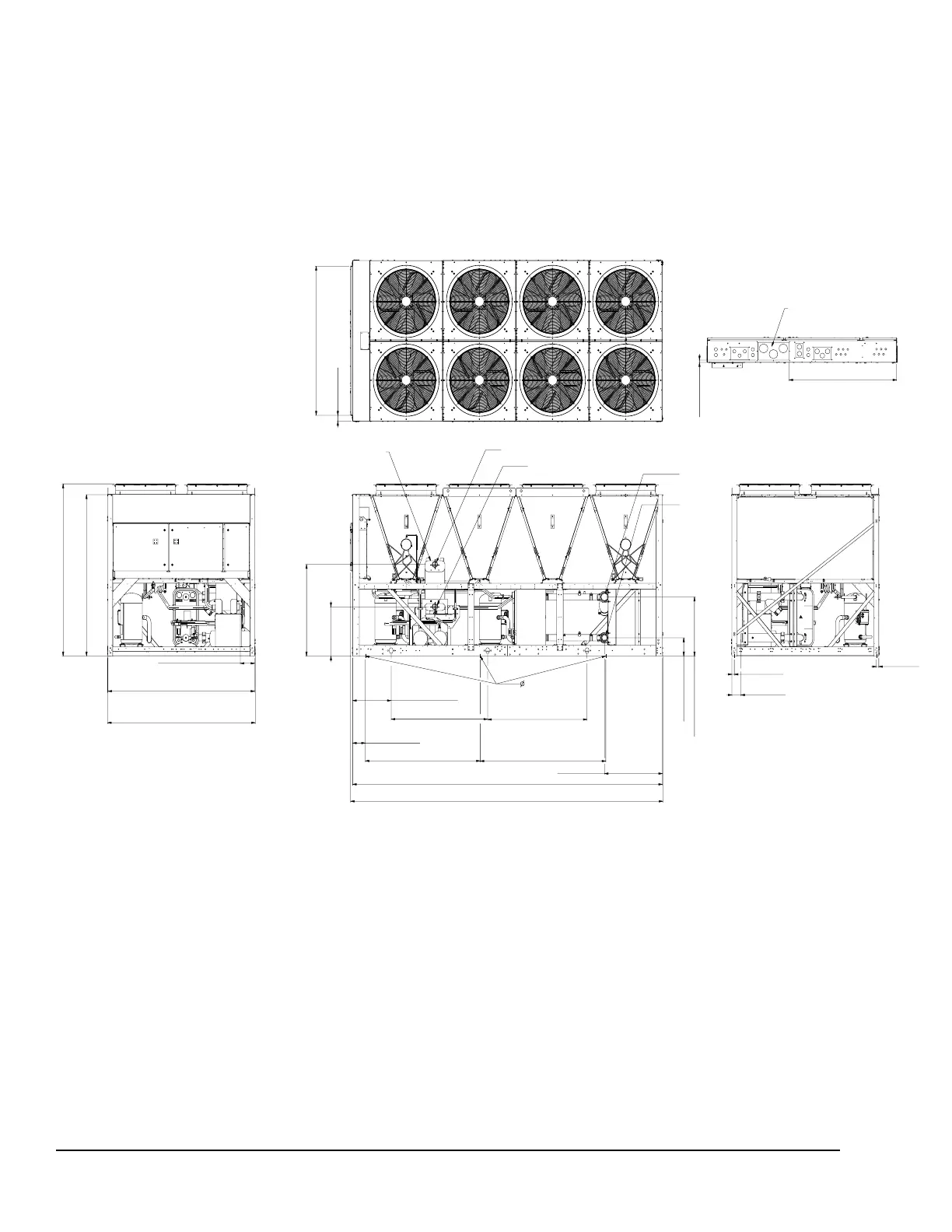

FIGURE 31 - EIGHT FAN UNITS DIMENSIONS – YLAA0125HE, YLAA0136SE, YLAA0139HE,
YLAA0142HE, YLAA150SE, YLAA0155SE
