Zapi EPS-AC User Manual

Page 7
2 ELECTRICAL SPECIFICATIONS
2.1 BATTERY VOLTAGE RANGE
Battery voltage input ranges for different releases of the control unit:
24/36 24-36 Vdc
48 48 Vdc
48/80 48-80 Vdc
2.2 STEER MOTOR CURRENT RANGE
24/36 Imax ≤70Aac. Adjustable with the hand held controller (HARDWARE
SETTING)
48 Imax ≤70Aac. Adjustable with the hand held controller (HARDWARE
SETTING)
48/80 Imax ≤50Aac. Adjustable with the hand held controller (HARDWARE
SETTING)
2.3 COMMAND DEVICE SPECIFICATIONS
2.3.1 Tacho generator or stepper motor
We supply two command device solutions: Tacho-generator and Stepper motor.
Tacho-generator is to be AIRPAX 24VDC - part No. 9904-120-16206. Use of any other
device may provide non-optimum performance.
Stepper motor is to be Minebea type code AA23KM-K227-T20V. Use of any other
device may provide non-optimum performance.

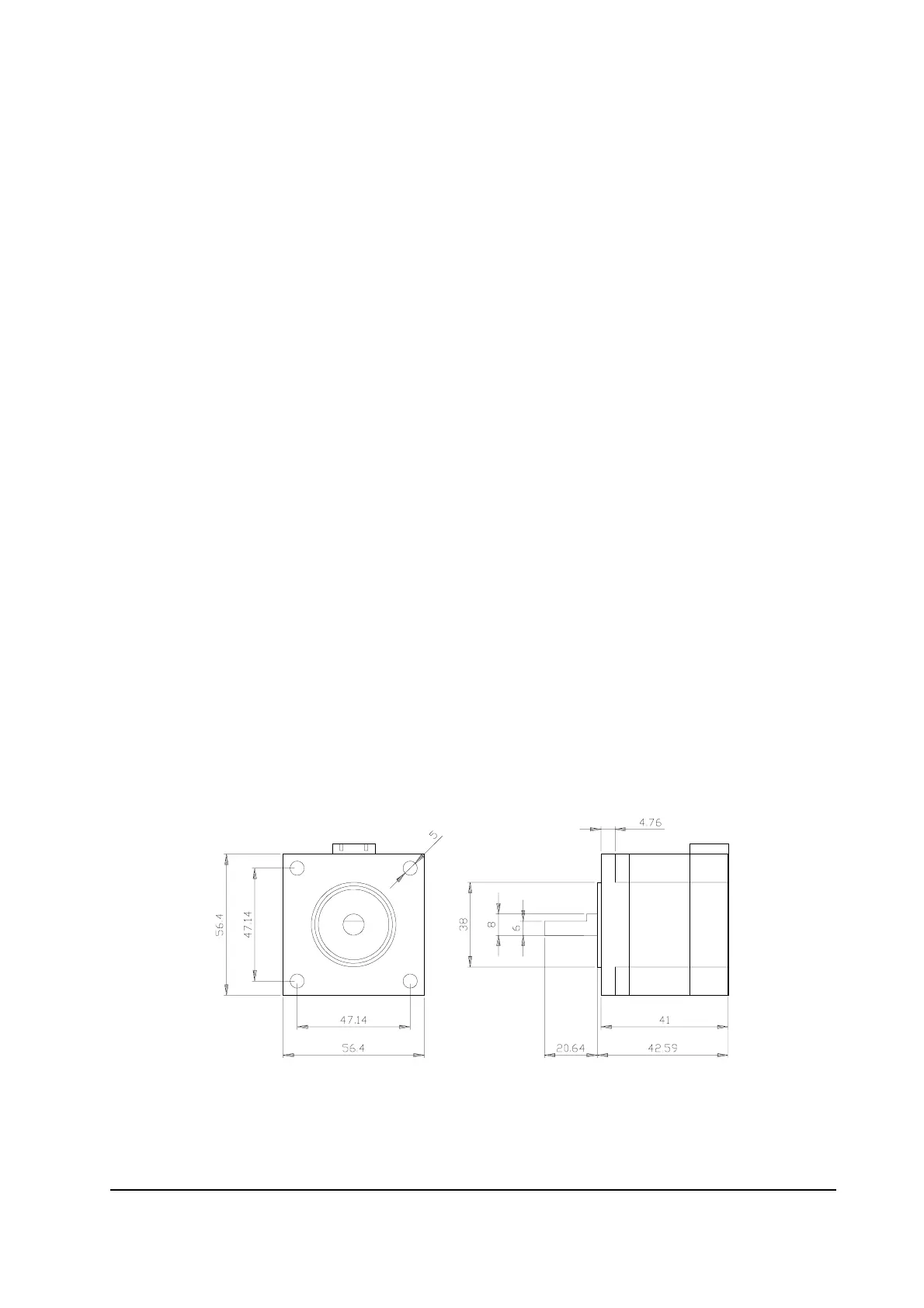

Stepper motor - mechanical specification
