Zebra 105SL Installation Instruction

Media Rewind Upgrade
2
33181L-001 Rev. A 10/23/2006

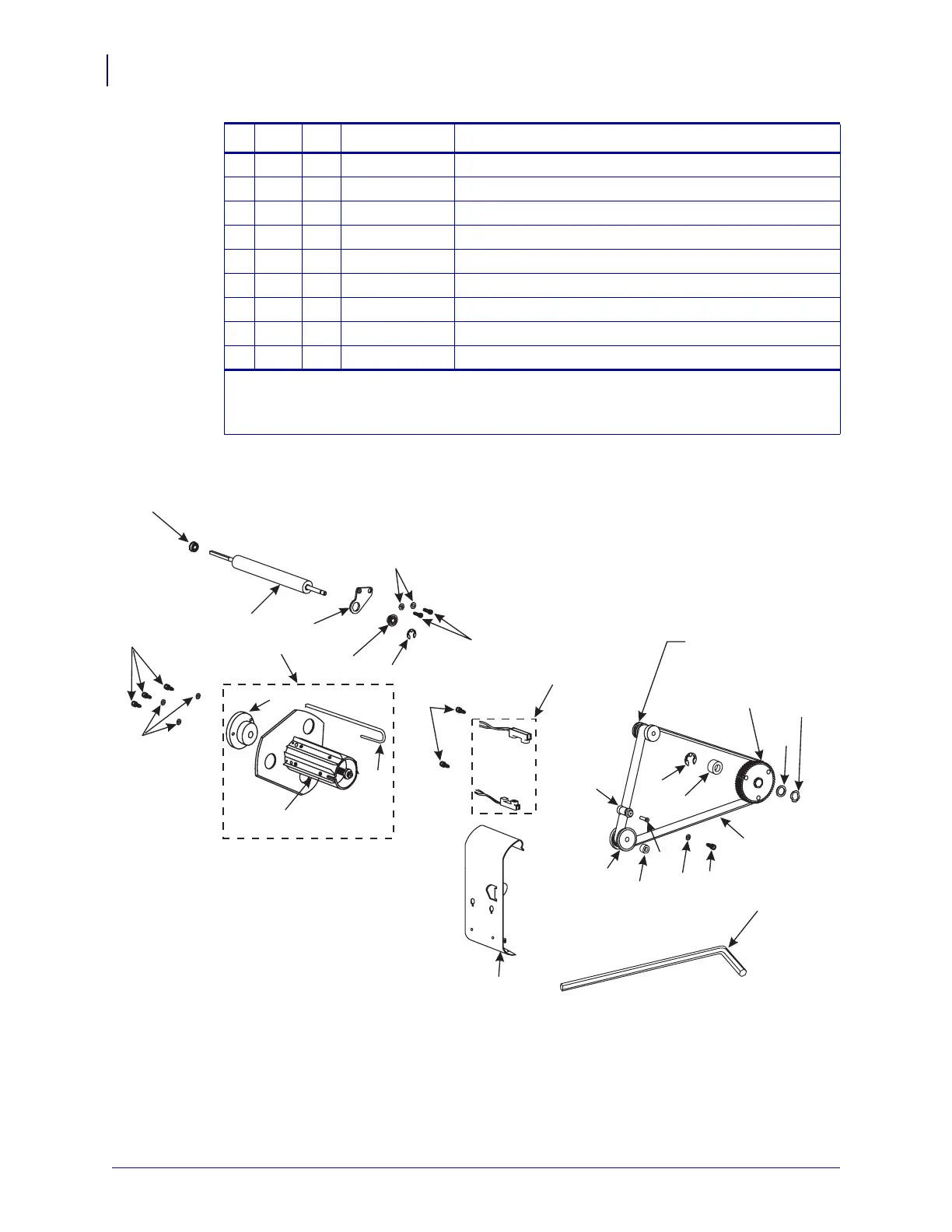

Figure 1 • Kit Parts
20 1
30265
Pulley, Idler
21 1
HW22004-1
Spacer (Part of 40038M) (Qty. of 25)
22 1
30207
Shaft, Idler
23 1
46909
Spacer (Part of 31336M)
24 1
11301
Wrench, Long Hex Allen, 7/64″
N/S 1
01660
Grease (Lubriplate GR-132)
N/S 1
HW01117
Cable Clamp (This is included as a spare.) (Qty. of 25)
N/S 1
HW33822
Washer (This is included as a spare.) (Qty. of 100)
N/S 1
HW33809
Hex Nut (This is included as a spare.) (Qty. of 25)
3 Item Qty Part Number Description
N/S= Not Shown
Bold = Part available for purchase.
Italic = Part not available for purchase, listed and shown for reference only.
19
8
2
1
2
3
10
5
6
5
11
7
2
8
3
4
Stepper Motor Pulley
(Not Included)
17
12
13
14
15
16
21
18
22
23
20
9
24
