Important notes:
Only for special version with
programmable place of installa-
tion of the ow sensor.
The meter is in the delivery status in
sleep mode (SLEEP 1). If the meter
is being awakened from the sleep
mode, the place of installation on
the following two display screens
can be selected.
The choice of the place of ins-
tallation can be carried out only
once. A subsequent change is
not possible.
With a short button press you can
choose between the following two
displays.

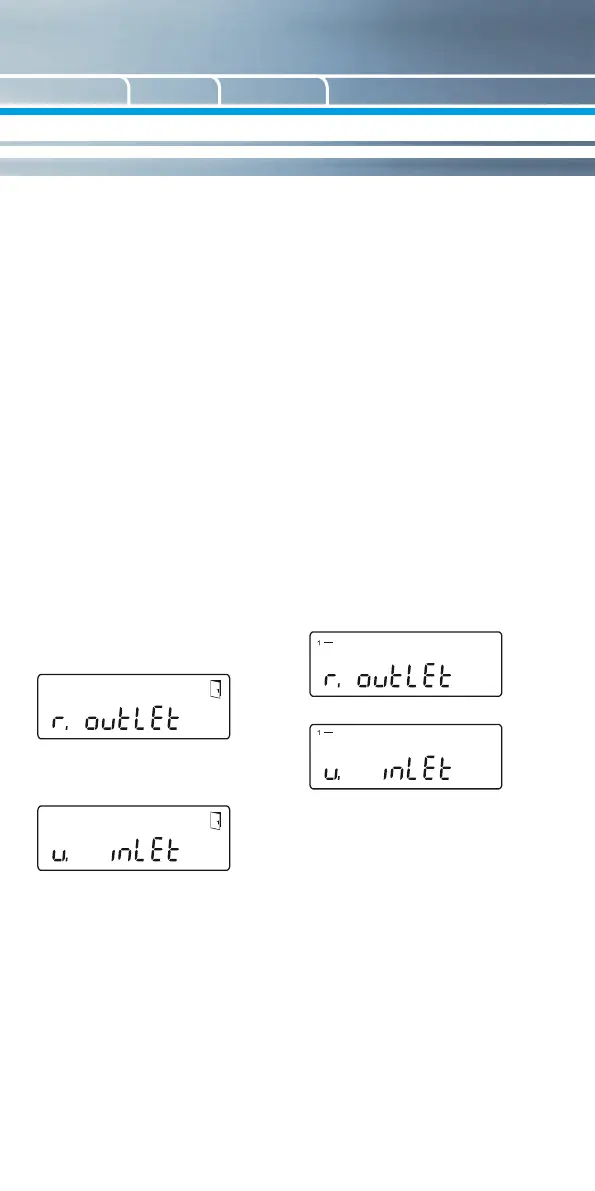

Installation return:
Installation ow:
!! IMPORTANT !!
If this indicator appears on the
display, the counter is still in
sleep mode. Only when the instal-
lation position has been selected,
the device is fully awakened.
The selection is being activated with
the door symbol (top right of the dis-
play):
1. Press and hold the button.
2. Then release the button immedi-
ately.
3. The door icon disappears and
appears after about 2 seconds
again.
The selected setting is accepted
and the unit is congured for the
chosen place of installation.
The chosen place of installation is
displayed as the nal display positi-
on in the main display level (without
the door icon) and can be checked
again.
or
The meter is now ready for opera-
tion.
Pulse inputs and outputs (opti-
onal)
By meters with pulse inputs, the
pulse value can be called up in the
display (see the display overview,
Level 4). The pulse value of the out-
puts is permanently set and corre-
sponds with the last position of the
associated display value.
