Zephyr Cyclone AK6500BS User Manual

14
Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Installation Instructions

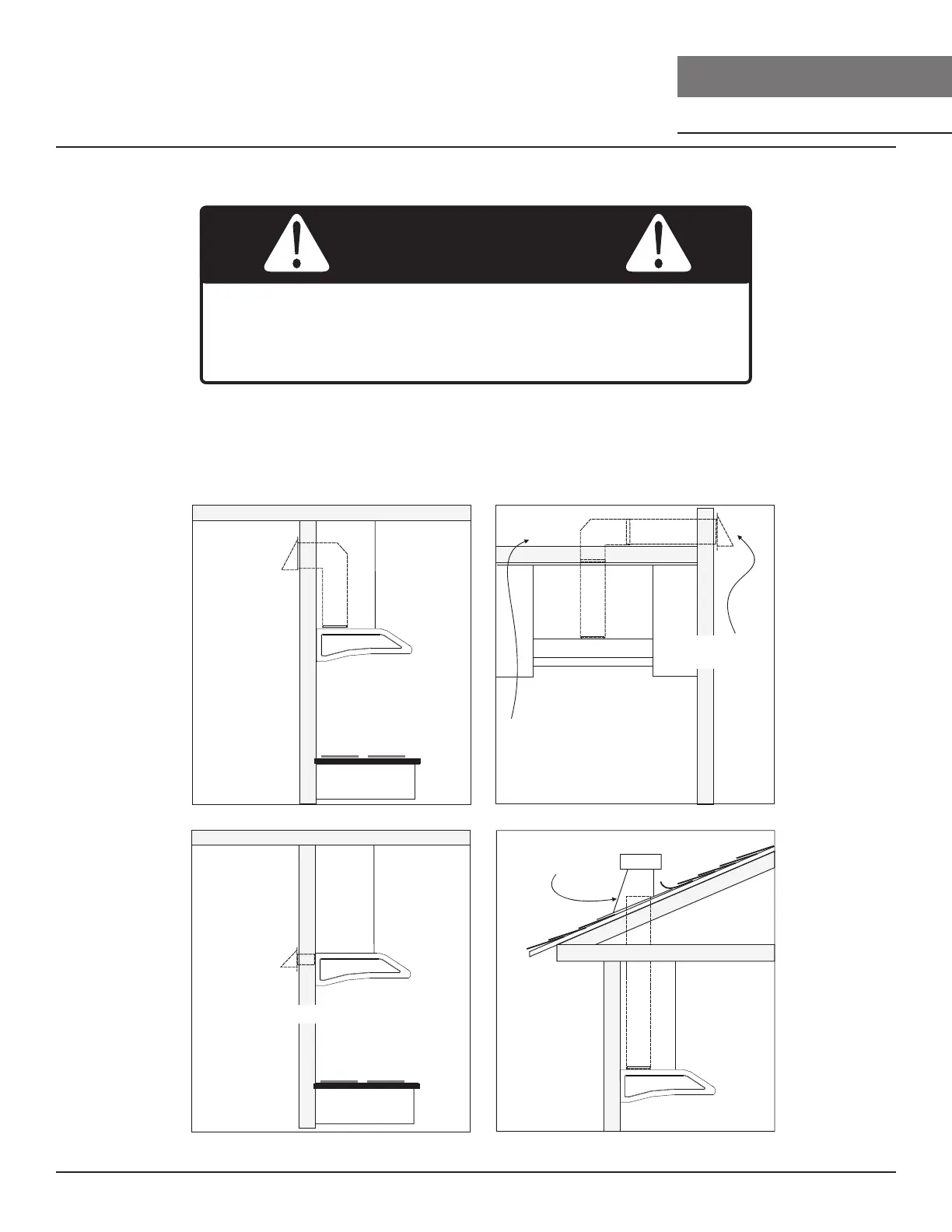

Ducting Options
Ź Use single wall rigid metal ductwork only.
Ź Fasten all connections with sheet metal screws and tape all joints w/ certified Silver Tape or Duct
Tape.
Fire Hazard: NEVER exhaust air or terminate ductwork into
spaces between walls, crawl spaces, ceilings, attics, or garages.
All exhaust must be ducted to the outside, unless using the
recirculating option.
WARNING
side wall cap
w/gravity damper
cabinet
cabinet
sot or crawl space
side wall cap
w/gravity damper
3-1/4”x10” rear
ducting w/side
wall gravity damper
roof pitch w/
flashing & cap

Zephyr Cyclone AK6500BS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted
Number of Fan Speeds	3
Interior Light	yes
Voltage	120 volts
Current	2.4 amperes

Weight and Dimensions

Depth	22 1/5 inches
Height	6 2/5 inches
Width	29 4/5 inches
Net Weight	64.7 pounds
