Typhoon, Hurricane, & Cyclone Use, Care, and Installation Guide
TYPHOON, HURRICANE
& CYCLONE
UNDERCABINET
CORE
Installation Instructions
Rectangular Horizontal Ducting Preparation
Ź By default the Typhoon and Hurricane are pre-configured for 7” round vertical ducting.
Ź By default the Cyclone is pre-configured for 6” round vertical ducting.

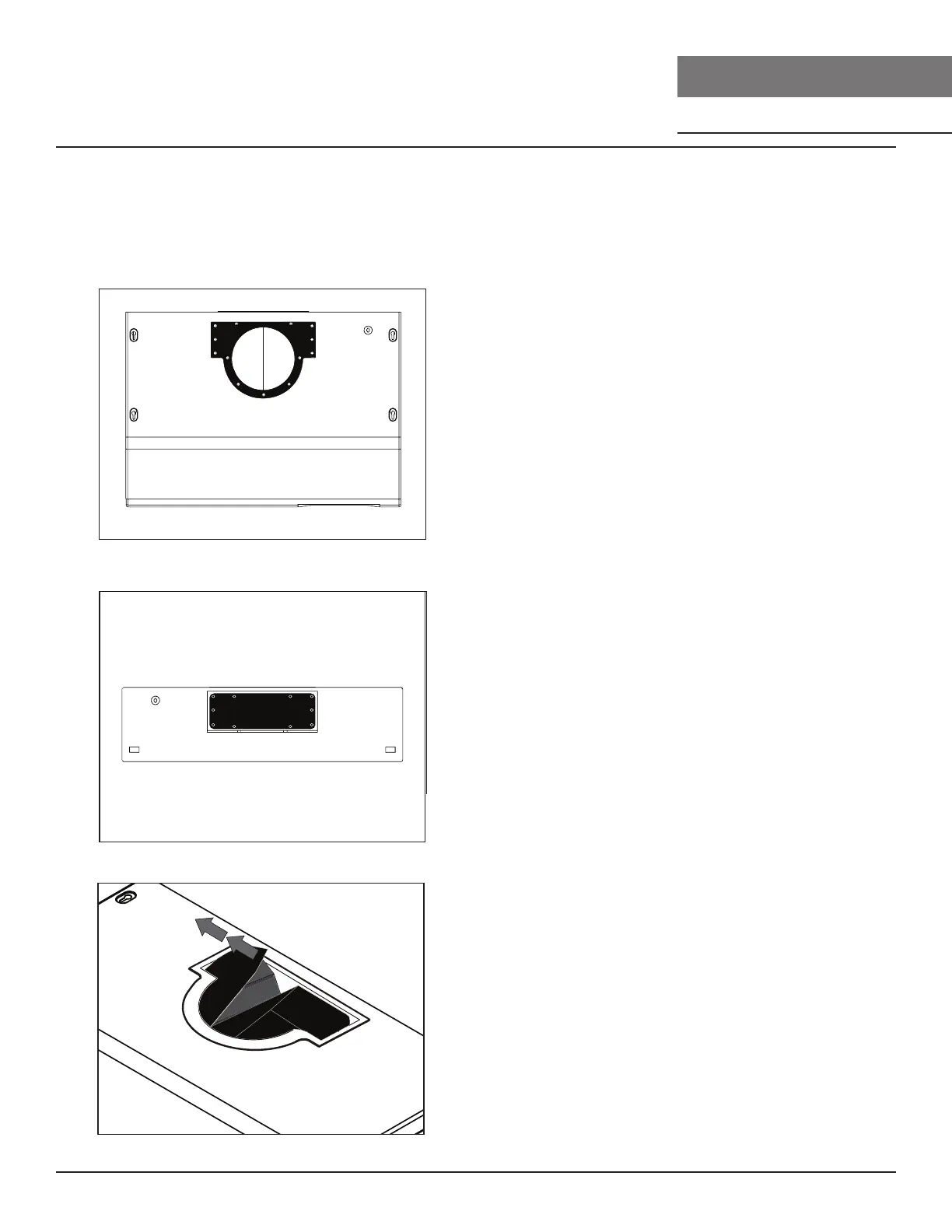

1. Using a Philips-head screwdriver
remove the screws and round vertical
transition adapter from the top of the
hood.
3. Typhoon ONLY. Remove the two
plastic air diverter blocks. The blocks
are located in the hood and can be
accessed from the top when the round
transition adapter is removed.
2. Using a Philips-head screwdriver,
remove the screws and 3-1/4"x10"
rectangular cover plate from back of
hood.

Zephyr Cyclone AK6500BS Specifications

General

Color	stainless steel
Hood Type	under cabinet
Venting Type	ducted
Number of Fan Speeds	3
Interior Light	yes
Voltage	120 volts
Current	2.4 amperes

Weight and Dimensions

Depth	22 1/5 inches
Height	6 2/5 inches
Width	29 4/5 inches
Net Weight	64.7 pounds
