Zephyr Siena User Manual

17
Airow Control Technology (ACT)
Some local codes limit the maximum amount of CFM a range hood can move. ACT allows you to control the
maximum blower CFM of select Zephyr Ventilation range hoods without the need for expensive make up air kits.
ACT enables the installer to easily set the maximum blower speed to one of two most commonly specied CFM
levels; 390 or 290 CFM. The usage of ACT may not be necessary for your installation. Please check your local
codes for CFM restrictions.
By default the maximum blower CFM is set to 650.
To enable ACT
1. Before hood installation, gain access to PC board by following the steps shown in FIG. D.
2. Change plastic jumper positioning as shown in FIG. E to set the desired maximum blower CFM.
3. Re-install PC board & continue with hood installation.
4. Remove the appropriate foil CFM sticker included with the hood literature and place inside the hood body below
the wiring diagram or in another clearly visible location.
NOTE: After re-positioning the jumper and powering on the hood, the CFM cannot be changed again.
To verify if your installer enabled ACT
With hood o󰀨, press and hold the power button for three seconds. If 5 LEDs illuminate = defualt max. CFM, if 4
LEDs illuminate = max. 390 CFM, and if 3 LEDs illuminate = max. 290 CFM.
When ACT is enabled, the number of blower speeds will be reduced. 390 CFM = max. 4 speeds and 290 CFM =
max. 3 speeds.
There should also be a foil label located inside the hood body near the wiring diagram that indicates the blower
CFM.

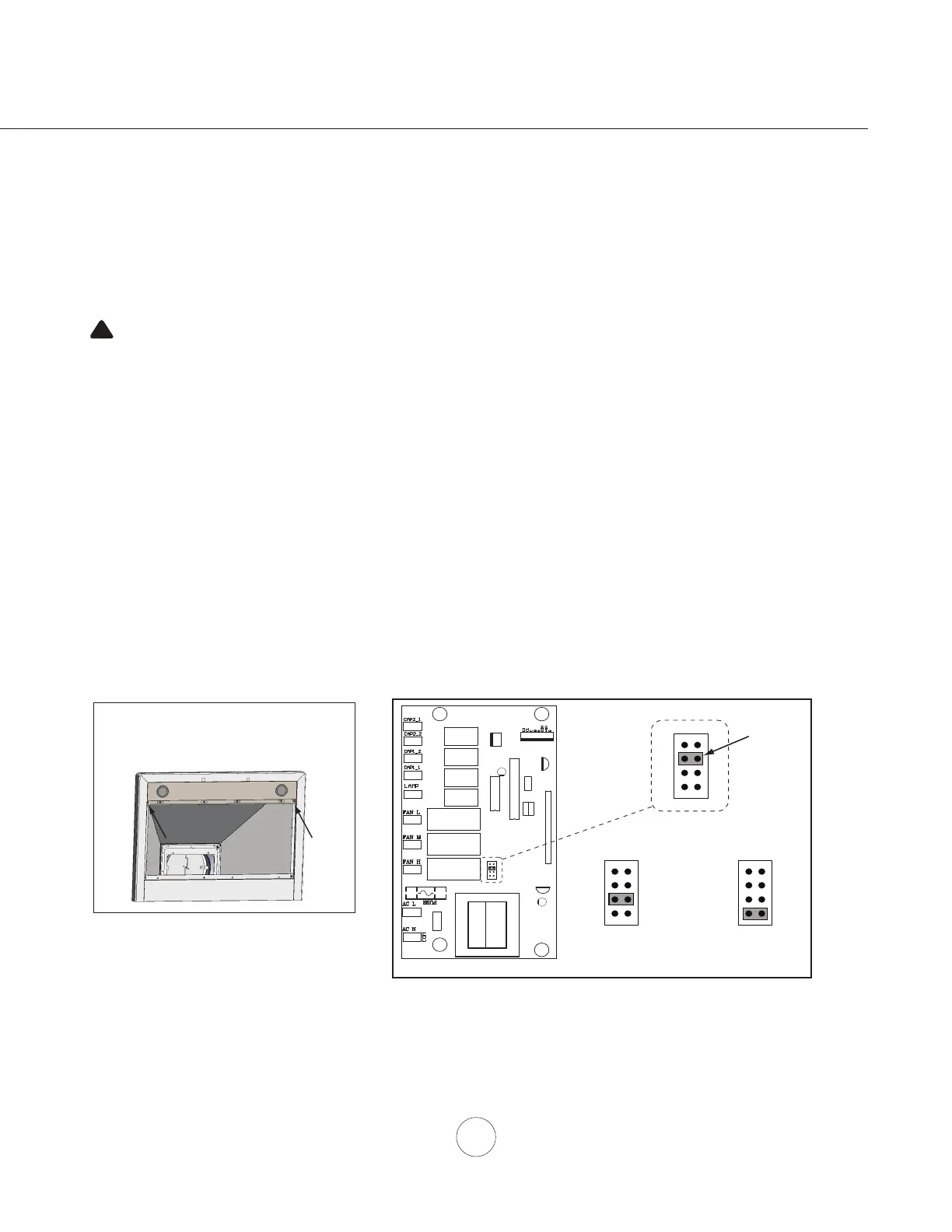

ACT Conversion
CAUTION:
Hood must be disconnected from main power prior to performing the
conversion instructions listed below. Failure to do so could result in
personal injury or damage to the product.
!
PC Board
1
3
5
7
2
4
6
8
Jum per 5-6 or 7-8
DEFAULT POSITION
Default Max. Blower CFM
Jum per 3-4
Max. Blower CFM
390
Jum per 1 -2
Jumper Pins
Plastic
Jumper
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
1
3
5
7
2
4
6
8
Max. Blower CFM
290
FIG. D
FIG. E
D I S C A R D T H I S P A G E A F T E R C F M C O N V E R S I O N
Models: ZAZ, ZLU, ZRM, ZRO, ZRV
- Locate PC board box on top of blower housing.
- Remove 2 to 4 screws attaching PC board cover.
Accessing PC Board Instructions
Model: ZSI
- Remove aluminum mesh filters.
- Remove 2 screws attaching light panel.
- PC board located behind the light panel.
Models: ZAN, ZSA
- Remove aluminum mesh filters.
- Remove 2 to 4 screws attaching PC board cover.
Model: AK92
- (AK9228AS only) Remove both spacer panels by 2
screws for each spacer panel.
- Remove baffle filters and residue tray.
- Remove 5 screws attaching light panel.
Models: AK70, AK75
- Remove baffle filters.
- Remove both side spacer panels (if applicable) by 2 screws for each spacer panel.
- Remove 4 screws attaching light panel.
- PC board located behind the light panel.
- PC board located behind the light panel.
2
