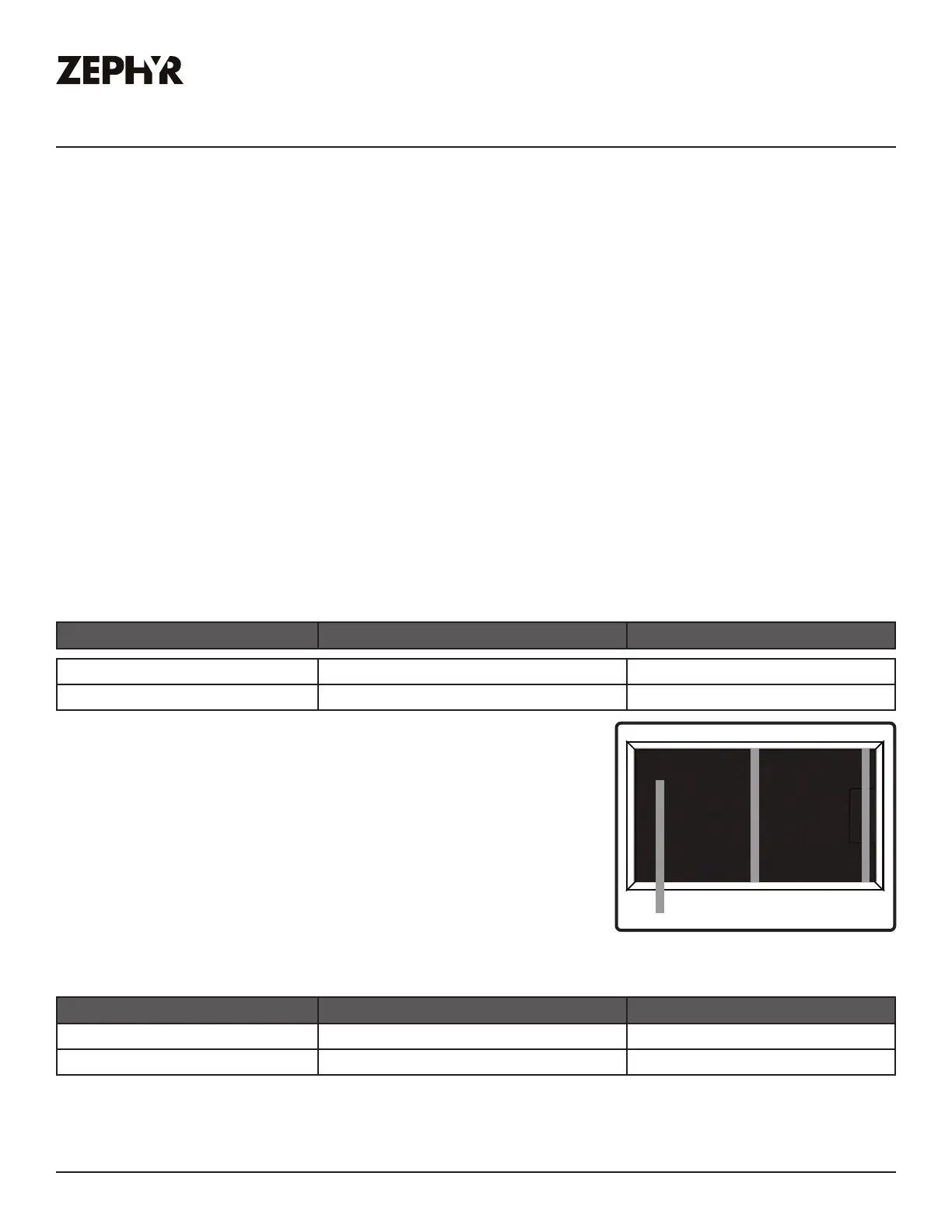

Installation Instructions
Ductless Recirculation
Ductless recirculation is intended for applications where an exhaust duct work is not possible to be
installed. When converted, the hood functions as a recirculating hood rather than an exhaust hood.
Fumes and exhaust from cooking are drawn and filtered by a set of optional charcoal filters. The air is
then purified and re-circulated back within the home.
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new
duct work, if possible. The hood is most eective and ecient as an exhaust hood. Only when the
exhaust option is not possible should you recourse to converting the hood into a recirculating hood.
When converted to be a recirculating hood, a set of charcoal filters are required on top of its standard
Metal Filter set. Order according to its part number below. The standard mesh filters are intended to
capture residue from cooking, and the optional charcoal filters help to purify fumes exhausted from
cooking for recirculation.
Recirculating Kit Installation (required if no ducting is used)
For detailed installation instructions, please refer to the manual included with the recirculating kit.
Hood Model Part Number Quantity to Order
AK9028BS ZRC-9000 1
AK9034BS ZRC-9000 1
1. Purchase recirculating kit per the part number above.
Remove filter from hood. Place charcoal filter on back
side of filter.
2. Place filter brackets over charcoal filter and secure in
place by tucking each end of bracket under the filter
frame. FIG. E. Reinstall filter.
Order replacement charcoal filters as follows:
Hood Model Part Number Quantity to Order
AK9028BS Z0F-C090 1
AK9034BS Z0F-C090 1
DO NOT WASH CHARCOAL FILTERS. Charcoal filters may need to be changed more often depending
on cooking habits.
FIG. F
