17
HYDRAULIC SYSTEM
P+11N015

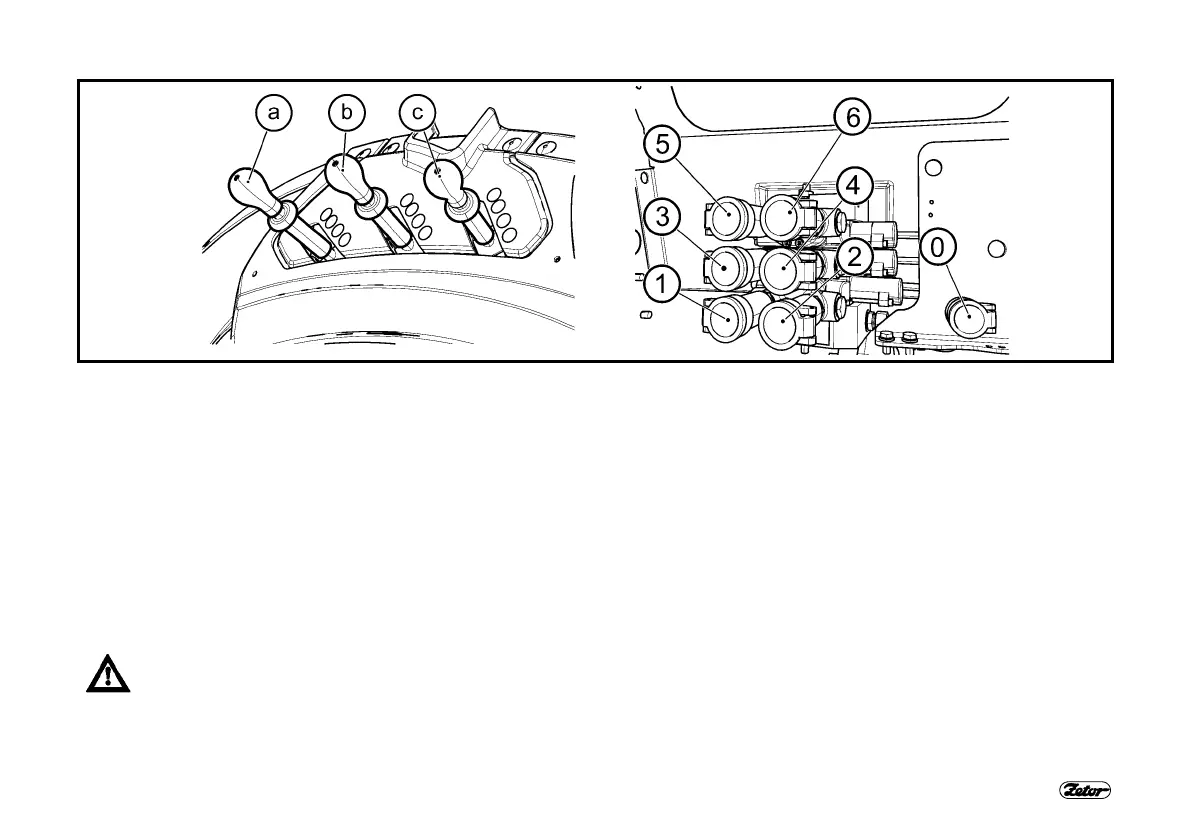

OUTER HYDRAULIC CIRCUIT CONTROLS
Outer hydraulic circuit controls are located on the right wing.
lever (a) controls the lower section of distributor – quick couplers (1) and (2)
lever (b) controls the central section of distributor – quick couplers (3) and (4)
lever (c) controls the upper section of distributor – quick couplers (5) and (6)
Quick coupler (0) is directly connected with transmission and it is supposed for recuperative oil of exterior hydraulic appliances
(e.g. from rotary hydraulic engines etc.).
According to the equipment of the tractor, the following combinations of control levers and quick couplers can be supplied:
lever (a) – quick couplers (1) and (2)
levers (a) and (b) – quick couplers (1), (2), (3) and (4)
levers (a),(b) and (c) – quick couplers (1), (2), (3), (4), (5) and (6)
Quick coupler (0) is supplied in any case.
If the tractor is equipped with front three-point hitch, use lever (b) to control it. When the front three-point hitch is used,
quick couplers cannot be connected as they are pressured together with the front three-point hitch! When you finish using
the front three-point hitch and want to use the section with quick couplers 3 and 4 with connection to the front three-point
hitch, raise the arms of the front three-point hitch to the transport position and move the front three-point hitch lever to the
„locked“ position.
