26
ELECTRIC INSTALLATION
F306

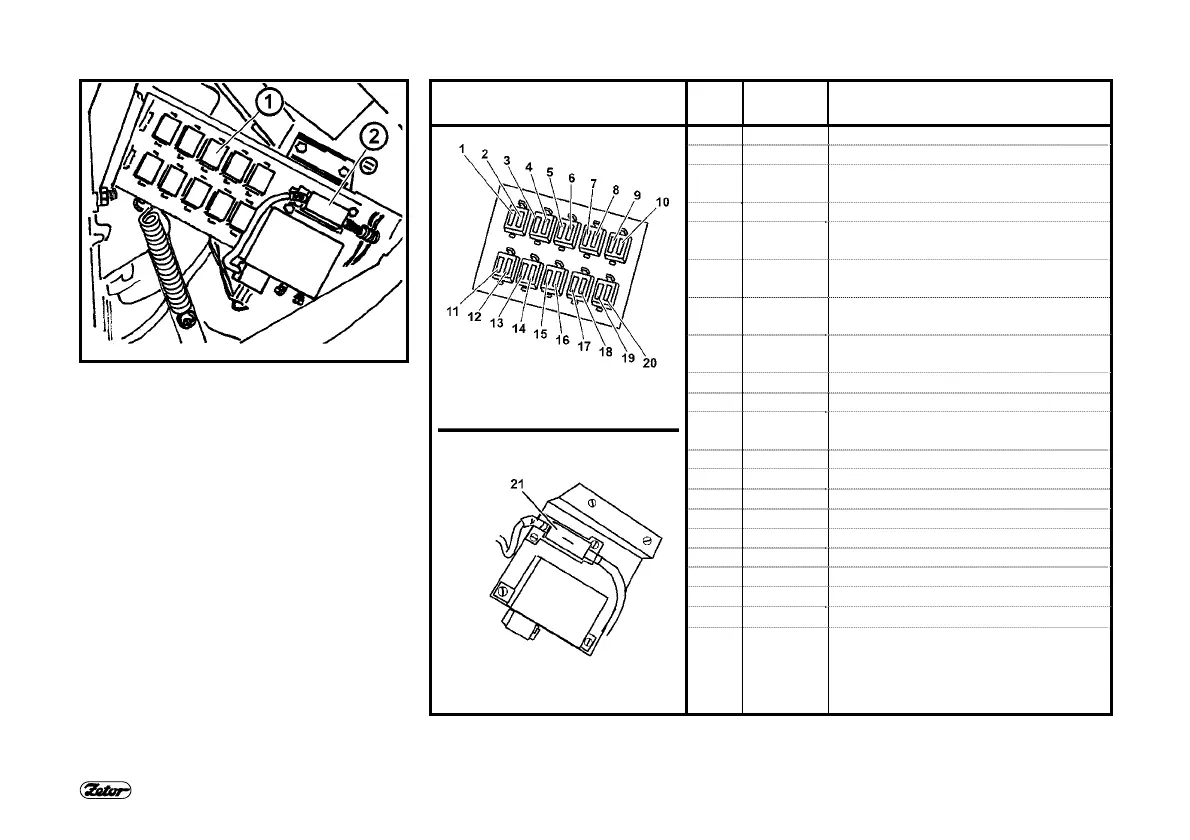

FUSE BOX
Accessible after removing the left cover
of the steering bracket.
Blade fuses (1) are used; replace with
fuses of the same value only. If a fuse
breaks repeatedly, consult the nearest
service station.
Tape glow fuse (2) with the value of 80A.
Location of fuses in fuse box Posi-
tion
Fuse
value
System to which it applies
1 15A warning lights chopper, breaking lamps
2 15A horn, warning beacon
3 15A front drive axle control, differential
lock control, dashboard power supply
4 15A high beam headlamps and indicator
5 15A side lamps, dashboard lamps, license
plate lamps
6 15A right side lamps, rear working lamp
and indicator
7 15A right low beam headlamps, fog lamps
and indicator
8 7,5A left headlamp, bonnet mask / roof
lamps, indicator
9 15A working lamps in the bonnet mask
*10 3A Zuidberg front shaft
11 15A windscreen and rear window wipers,
washers, radio “15“
12 20A heater fan, radio “30“
13 15A recirculation, lighter
∗14
7,5A air-conditioning (compressor clutch)
*15 15A mirror heating
*16 15A rear window defroster
*17 15A driver’s seat compressor
18 20A 3-pole socket
∗19
15A front working lamps on the roof
∗20
15A rear working lamps on the roof
D307
21 80A glowing
