HYDRAULIC SYSTEM
E413
AMOUNT OF OIL TAKEN FROM
OUTER HYDRAULIC DRIVES

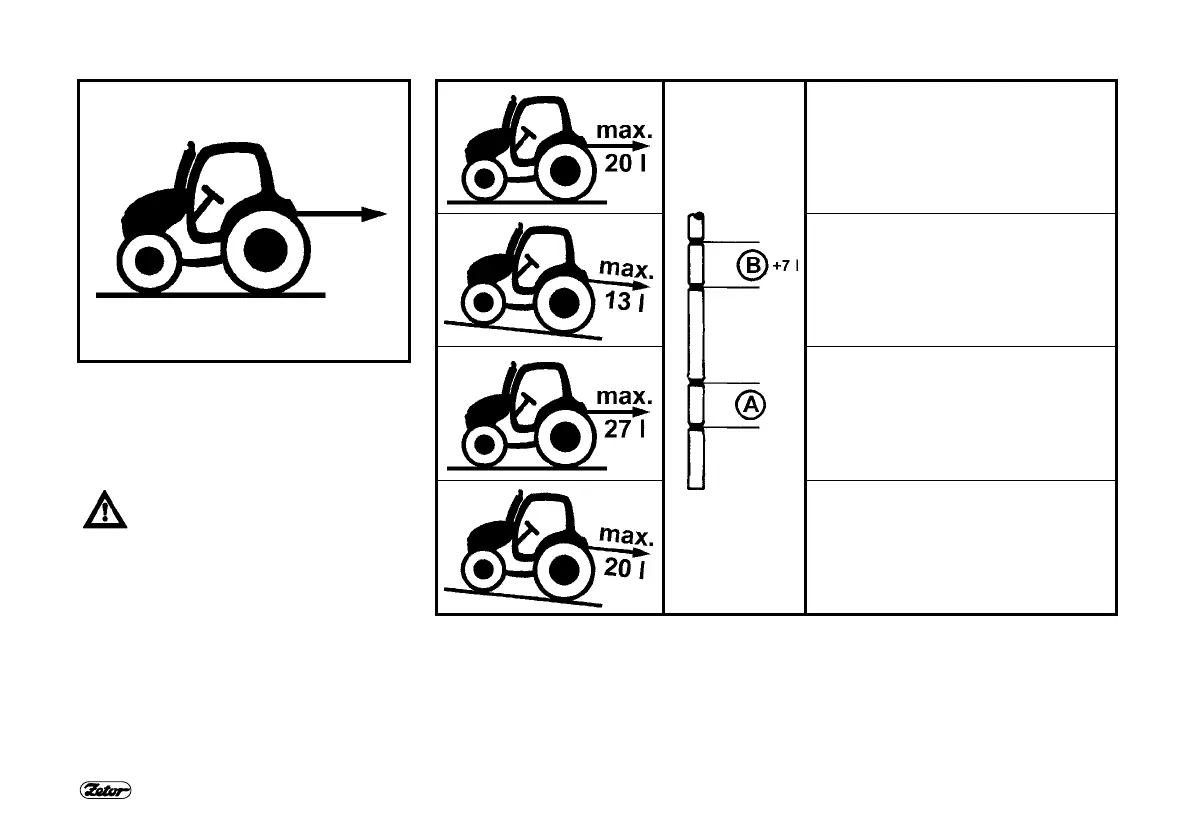

For maximum amount of oil taken see
the following table.
If the amount taken exceeds the
limit, hydraulic pump can absorb
air and can get damaged.
If the amount of oil in transmission de-
creases after disconnecting the tool due
to its permanent outflow out of the tractor
into the machine’s hydraulic circuit, refill
the oil missing.
Working area: in flat terrain
Max. amount of oil taken: 20 liters
Gearbox filling: standard filling within the
range shown by lines (A)
Working area: in a slope
Max. amount of oil taken : 13 liters
Gearbox filling : standard filling within the
range shown by lines (A)
Working area : in flat terrain
Max. amount of oil taken : 27 liters
Gearbox filling : within the range shown
by lines (B)
gearbox oil filling increased by 7 liters
(max. amount of oil in gearbox allowed)
Working area : in a slope
Max. amount of oil taken : 20 liters
Gearbox filling : within the range shown
by lines (B)
gearbox oil filling increased by 7 liters
(max. amount of oil in gearbox allowed)
