Zip HydroTap All-In-One BC 60/85A User Manual

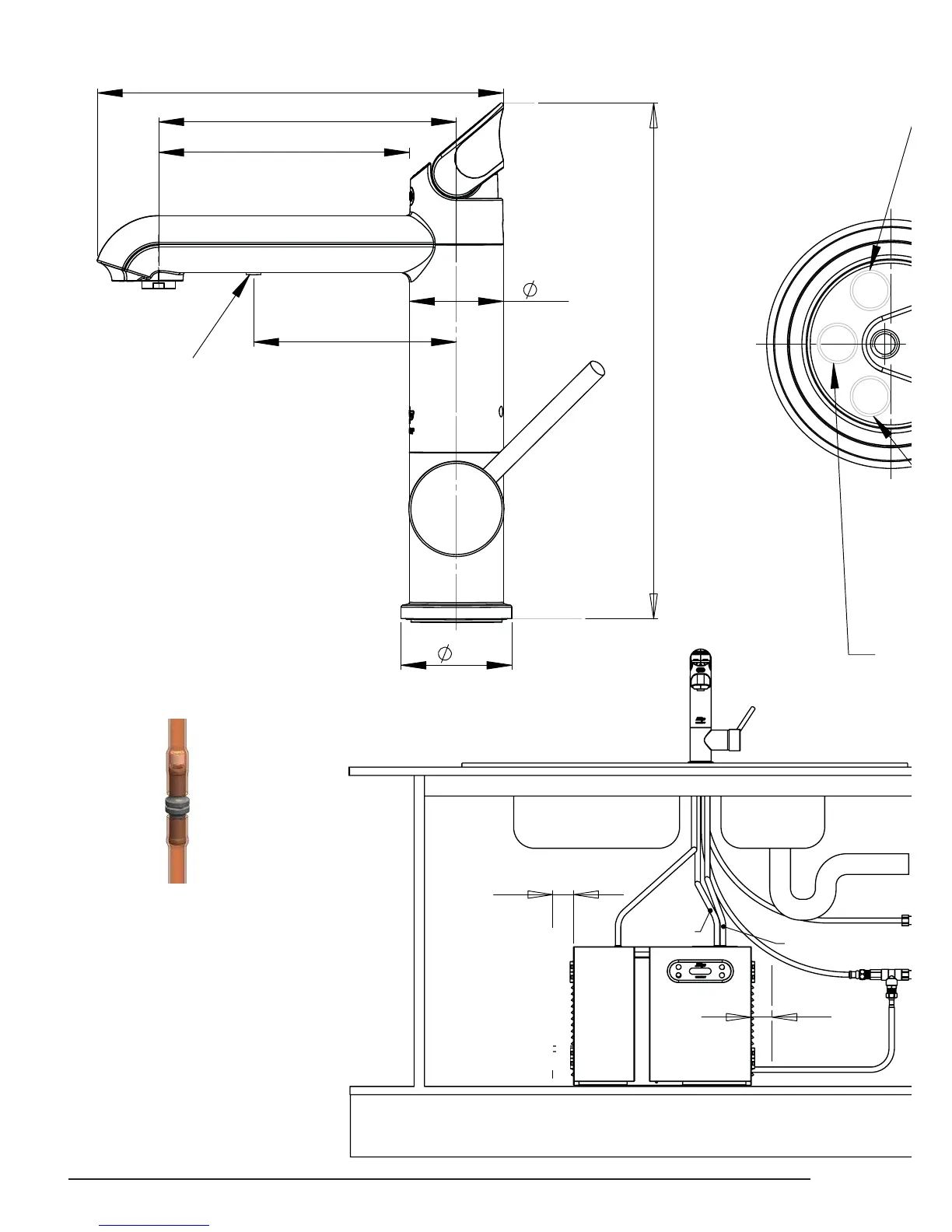

Page 12 of 24 HydroTap Installation and Operating Instructions - 89650UK - August 2011 v1.02
50
50
BOILING
WATER
CHILLED
WATER
VENT
BH1
BH2
UK 240V GPO
51
60
136
220
110
161.5
280
VENT OUTLET
POSITION
SILI
C
FR
O
IN
H
TO
T
NOTE:
IF THE FLOW RATE IS
TOO FAST, CUT THE RED SILICONE
TUBE 75mm MINIMUM FROM THE
BOTTOM OF THE BASE OF THE
ALL-IN-ONE TAP. INSERT THE
TEFLON RESTRICTOR ABOUT
20mm INTO THE UPPER SEGMENT
OF THE RED SILICON TUBE WHICH
CONNECTS TO THE TAP. INSERT
THE BLACK PLASTIC OUTLET BUSH
BETWEEN THE TWO PIECES OF
RED SILICON TUBES THAT WAS CUT.

Zip HydroTap All-In-One BC 60/85A Specifications
