ZXHN H108N User’s Manual
7
The device is not powered on or the LAN
connection has not been established
The wireless port is enabled.
Data is transmitting. The flashing
frequency indicates the WLAN traffic.
The device is not powered on or the
wireless port is disabled.
A USB device, such as hard disk is
connected.
The device is not powered on or the USB
device connection has not been
established.
The wireless terminal device is connected
through WPS successfully. The indicator
turns off five minutes later.
The wireless terminal device is connecting
with H108N through WPS.
There is error when the wireless terminal
is connecting to H108N through WPS.
There is no wireless terminal device
connected to H108N through WPS or the
wireless terminal device has been
connected to H108N through WPS for
more than five minutes.
Rear panel

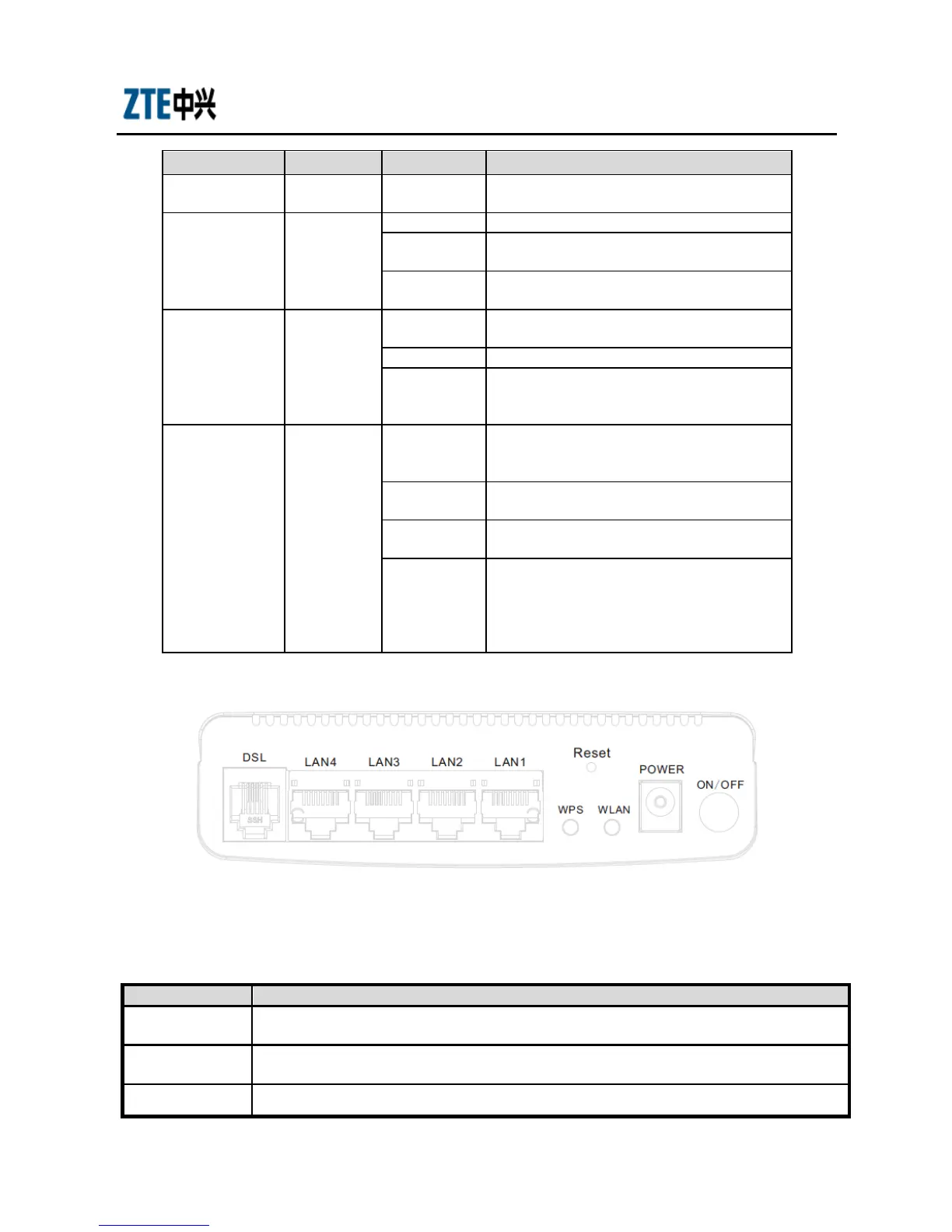

Figure 3.1-2 Rear Panel of the ZXHN H108N
Table 3.1-2 Description of Interfaces on the Rear Panel
RJ-11 connection interface: The equipment is connected to the ADSL line or splitter via
the telephone line.
RJ-45 connection interface: Connect it to the PC computer or other network devices using
the network cable.
