Zte ZXV10 H100 User Manual

2-1
2 System Connections
2.1 System Application Environment

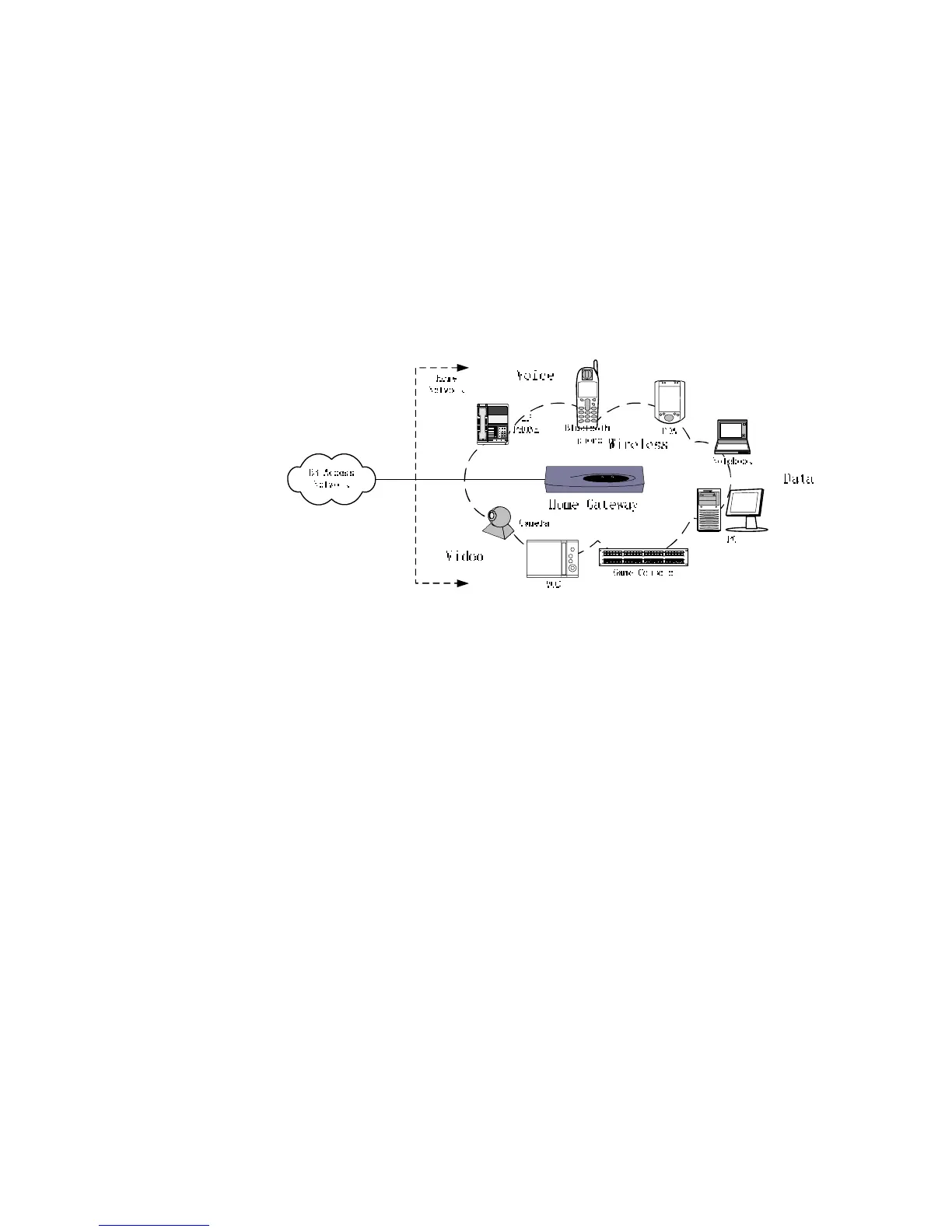

The main application environment of the ZXV10 H100 home gateway is shown below:
PWR
OK
WIC0
ACT /CH0
ACT/C H1
WIC0
ACT /C H0
ACT/C H1
ETH
ACT
COL
12 3
45 6
78 9
*8 #
2.2 Connecting the LAN Network Interface
You can connect the H100 to your computer, Ethernet hub or switch. Use one
cross-over or straight-through Ethernet cable to connect the LAN network interface of
the H100 to the network adapter of your PC or other network devices. You can also use
a WLAN wireless RF signal line to connect the H100 to your computer, but the
antenna on the rear panel of the H100 should be put in an ideal direction.
• Connecting your local network through Ethernet cables
Four LAN network interfaces of the H100 can auto-negotiate the connection
speed of the 10 Mbps/100 Mbps Ethernet and the half-duplex/full-duplex
transmission mode. Use a cross-over or straight-through Ethernet cable co
connect any LAN network interface of the H100 to your PC. You cascade the
LAN network interfaces of the H100, connect them to the Ethernet hub or the
Ethernet switch and then connect your PC or other network devices to the hub or
the Ethernet switch.
• Connecting your local network through WLAN
You need to install a wireless network card on your PC in the local network for

Zte ZXV10 H100 Specifications

General

Power Supply	12V DC, 1A
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Wireless	802.11b/g/n
USB	1 x USB 2.0
Supported Protocols	DHCP, NAT, PPPoE
