12
FIGURE 3

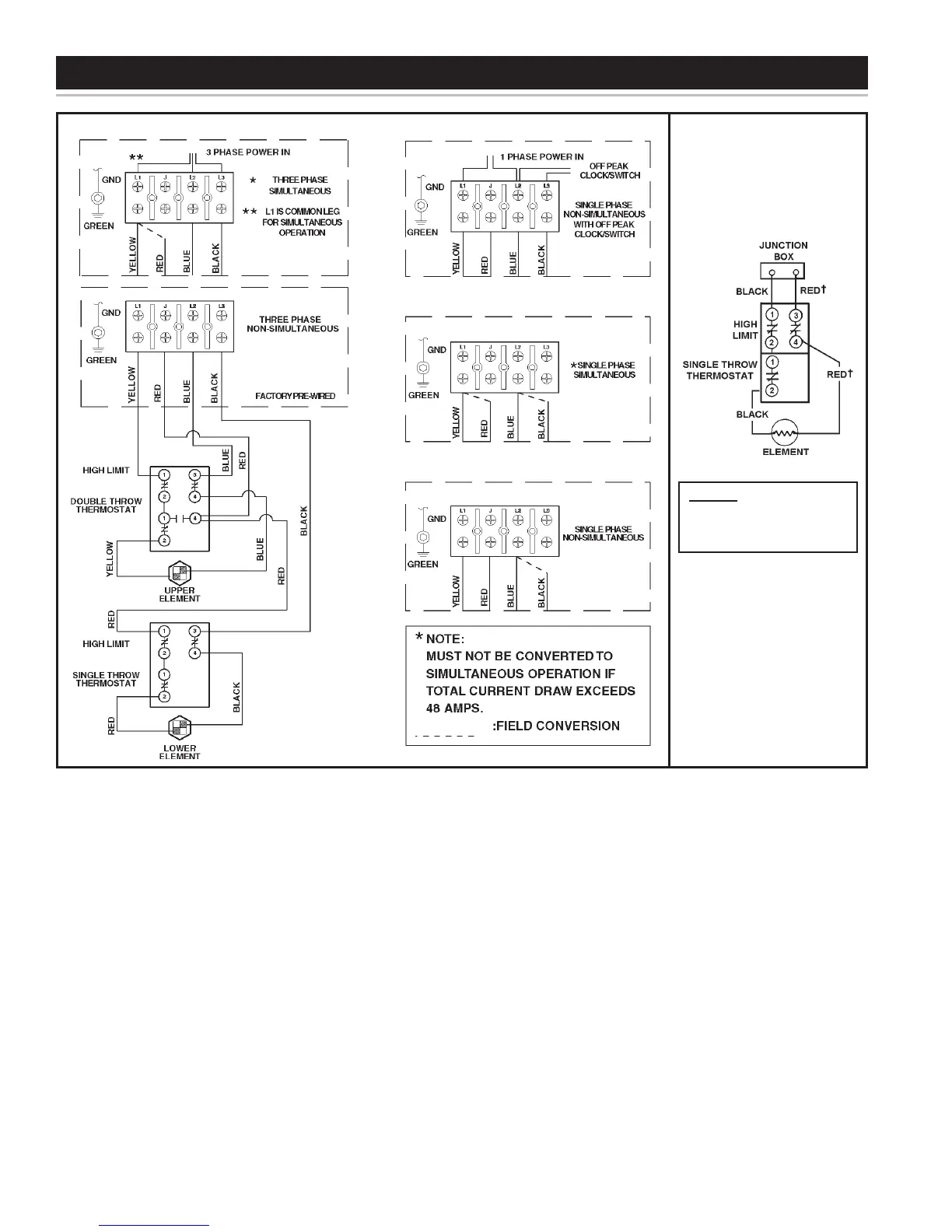

WIRING DIAGRAMS
C-2 CIRCUIT
FOR SINGLE
ELEMENT HEATERS
EQUIPPED WITH HIGH
LIMIT CONTROL
A-8 CIRCUIT FOR DUAL ELEMENT HEATER
FACTORY WIRED
---------- FIELD WIRING
† WHITE FOR 120V & 277V
