A.O. Smith DEL-50 - Figure

23
TABLE 6 - COPPER SHEATH ELEMENT AND WATTAGE CHART
K.W.
ELEMENT
WATTAGE
120V 208V 240V 277V 480V
PART NO. PART NO. PART NO. PART NO. PART NO.
1.0 1000W - - - 9002863115 90001431005 - - - - - -
1.5 1500W 9002963005 9000145005 9002864005 9001225115 - - -
2.0 2000W 9003947005 9002858005 9000145005 9004709115 - - -
2.5 2500W 9002859005 9004712105 9002860005 9002890005 9002861005
3.0 3000W 9002862005 9002868005 9003959005 9003958005 9003961005
3.5 3500W - - - 9003950005 9004712105 - - - - - -
MAX 3.5KW INPUT FOR 6 GALLON UNITS, ELEMENTS BELOW DOTTED LINE CANNOT BE USED ON 6 GALLON UNITS
4.0 4000W - - - 9002867005 9002868005 9001229005 9002869005
4.5 4500W - - - 9003952005 9003950100 9003960005 9001225005
5.0 5000W - - - 9001224005 9003957005 9001231005 9001236005
5.5 5500W - - - 9002871005 9002867005 - - - 9002872005
6.0 6000W - - - 9003953005 9003952005 9002874005 9002875005
TABLE 7 - INCOLOY SHEATH ELEMENT AND WATTAGE CHART (FOR SMR P72)
K.W.
ELEMENT
WATTAGE
120 V 208 V 240 V 277 V 480 V
PART NO. PART NO. PART NO. PART NO. PART NO.
1.5 1500 W 9004279005 9004283005 9004290005 9004736105 Not Available
2.0 2000 W 9004280005 9004284005 9004283005 9004290005 9004298005
2.5 2500 W 9004281005 9004285005 9004291005 9004295005 9004299005
INCOLOY ELEMENTS BELOW THIS LINE CANNOT BE USED ON 6 GALLON UNITS BECAUSE OF ELEMENT LENGTH
3.0 3000 W 9004282005 9004751115 9000664005 9004296005 9004300005
3.5 3500 W Not Available 9003210005 9004292005 Not Available Not Available
4.0 4000 W Not Available 9004294005 9004751115 9000664005 Not Available
4.5 4500 W Not Available 9004287005 9003210005 9004297005 9004301005
5.0 5000 W Not Available 9004753105 9004293005 Not Available Not Available
5.5 5500 W Not Available 9004288005 9004294005 Not Available Not Available
6.0 6000 W Not Available 9004289005 9004287005 Not Available Not Available

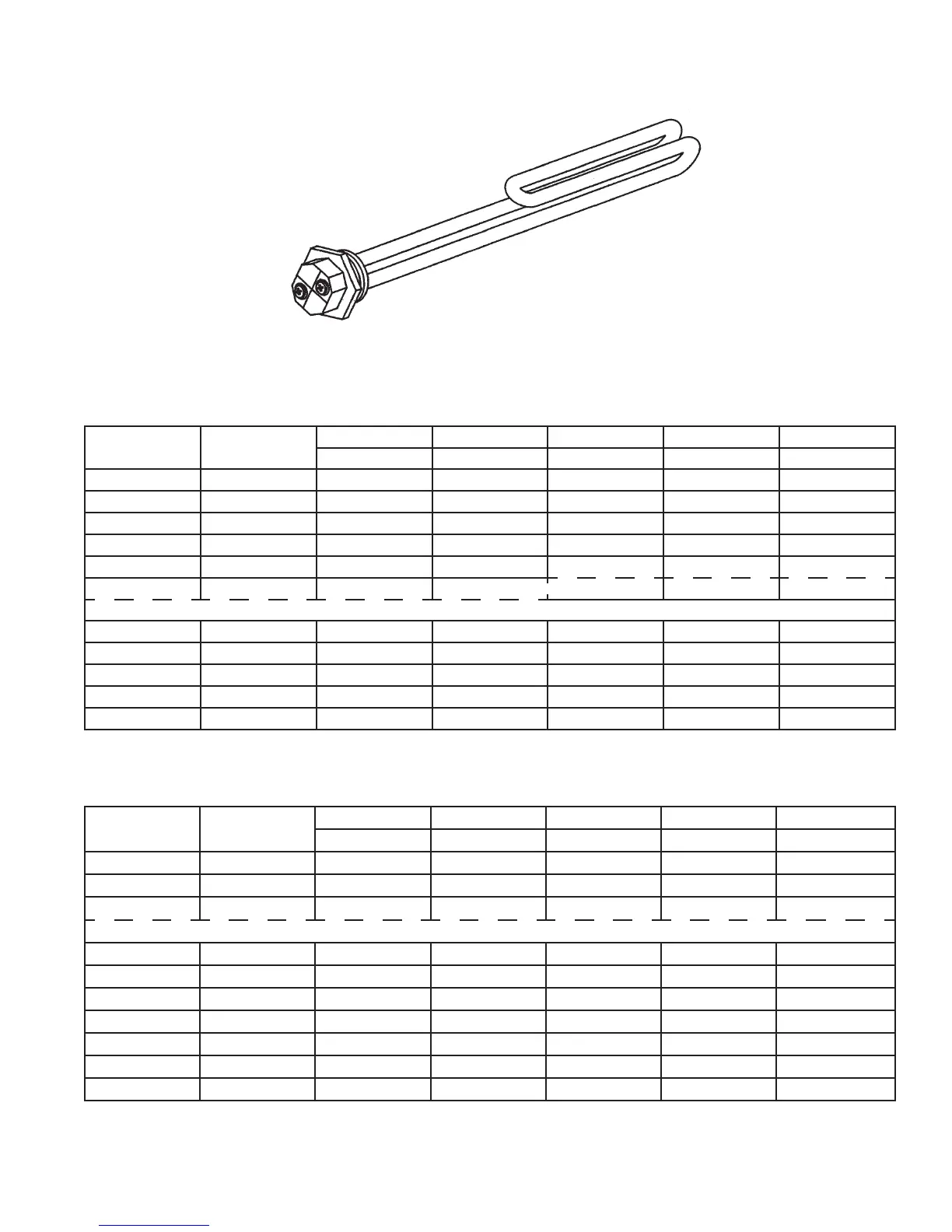

FIGURE 13
