7
FEATURES AND COMPONENTS
ELECTRONIC CONTROL MODELS

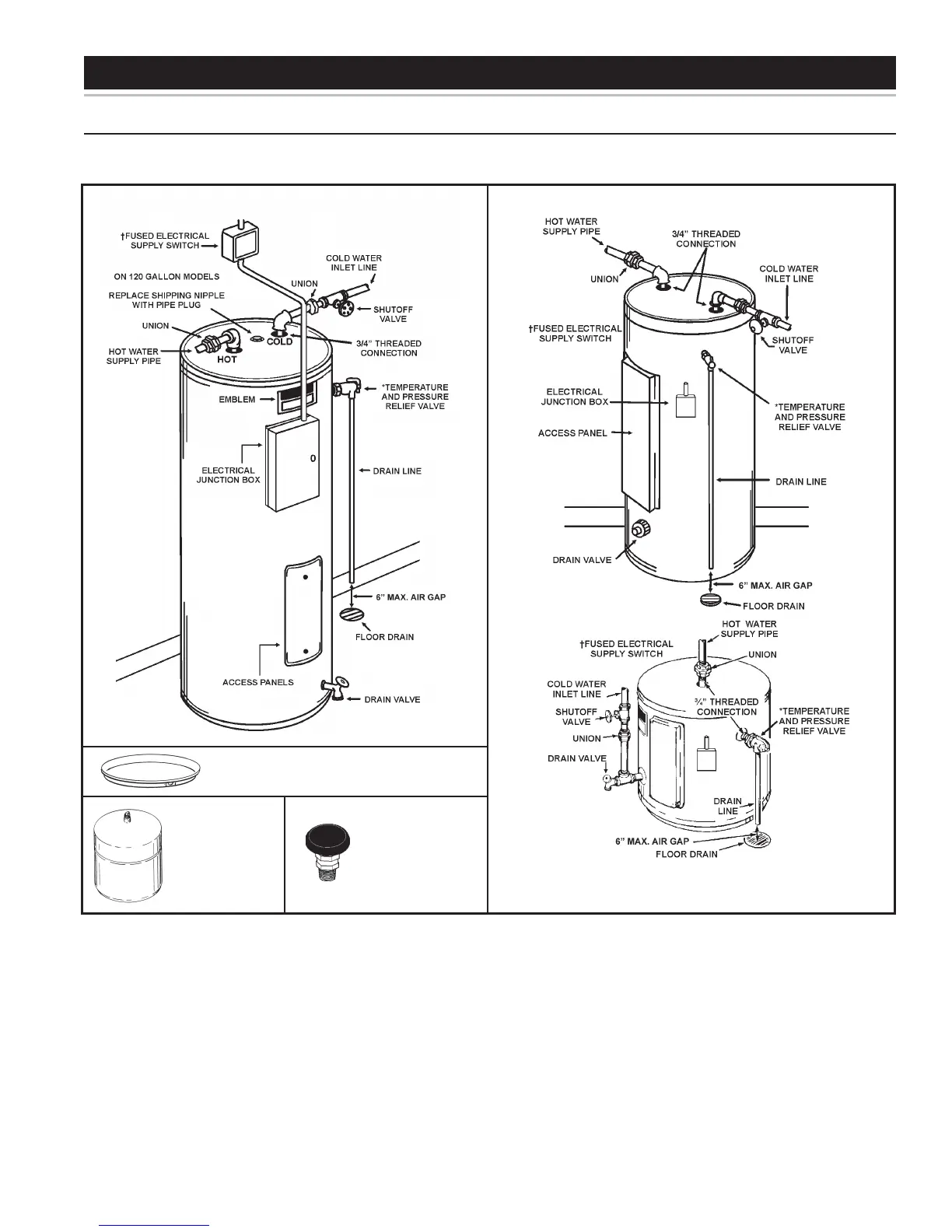

FIGURE 2
This page shows typical water heater installations by model designations.
† OVER CURRENT PROTECTION MUST BE SUPPLIED IN WATER HEATER CIRCUIT.
CONSULT LOCAL CODE OR NEC-1984 FOR PROPER INSTALLATION.
* INSTALL IN ACCORDANCE WITH ALL LOCAL CODES.
INSTALL VACUUM RELIEF
IN COLD WATER INLET
LINE AS REQUIRED BY
LOCAL CODES.
INSTALL SUITABLE DRAIN PANS UNDER WATER HEATERS
TO PREVENT DAMAGE DUE TO LEAKAGE. REFER TO WATER
HEATER LOCATION ON PAGE 8.
INSTALL THERMAL
EXPANSION TANK
IF CHECK VALVE OR
PRESSURE REDUCING
VALVE IS USED IN
SUPPLY LINE.
DEN/DEL DUAL ELEMENT HEATER
DEN/DEL SINGLE ELEMENT HEATER
