Starter for auxiliary motor fan (M)
37
Starter for auxiliary motor fan (M)
General
The options providing a starter for an auxiliary motor fan contain:
• fuses
• manual motor starter with adjustable trip limit
•contactor
• terminal block for output (X6). The maximum
wire cross-section accepted by the
terminal block is 6 mm
2
.
The fan voltage is the same as the drive nominal voltage.
Description
The drive controls the auxiliary motor fan on when the drive is running the motor and
off when not.
ACS800-07 frames R5 to R8: The customer can control the starter on and off also
externally by wiring the input to terminal block X6.

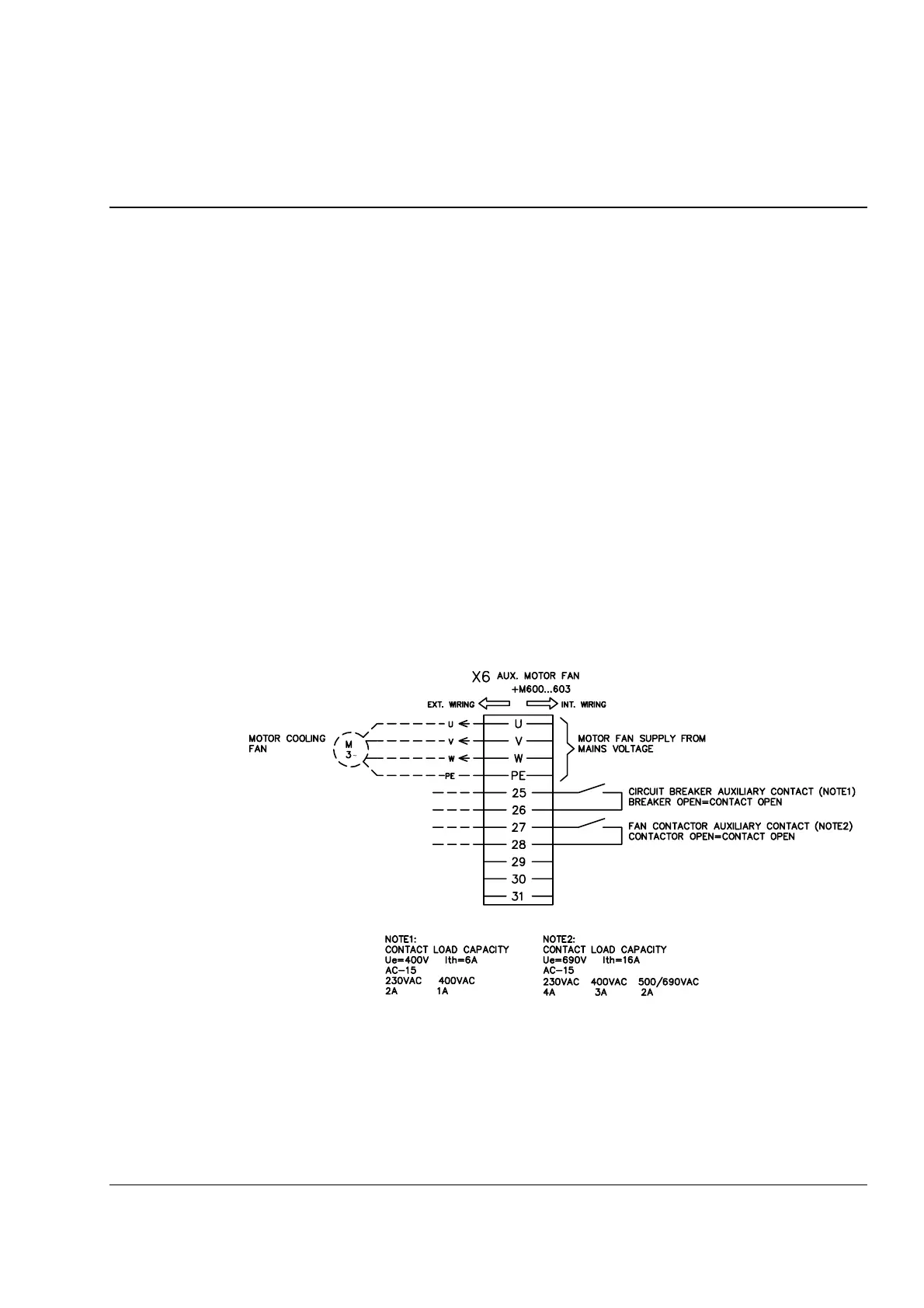

Example connection diagram
