AWT420 | UNIVERSAL 4-WIRE, DUAL-INPUT TRANSMITTER | INF/ANAINST/012-EN REV. A
13
Removing/refitting a panel-mounted AWT420 transmitter – panel seal requirements
NOTICE
RENEW THE PANEL SEAL AND PANEL FIXINGS if removing
DO NOT RE-USE
EXISTING PARTSPanel-mount kit below for
replacement part number.
Panel-mount kit
Part number
Panel-mount kit,
including fixings,
flanges, clamps
and seal
Referring to Figure 9:
1 Cut the correct sized hole in panel A.
2 Insert the transmitter into the panel cut-out B.
3 Screw one panel clamp anchor screw C into the left-hand
bracket D
protrudes from the other side of the bracket and position
one clamp E over the end of the thread.
NOTICE
rating.
4 Holding assembly F together, position bracket D into the
left-hand recess on the rear of the transmitter and secure
with bracket securing screw G. Ensure that the plastic
washer remains in the position fitted.
5 Repeat steps 3 and 4 for the right-hand panel clamp
assembly.
6

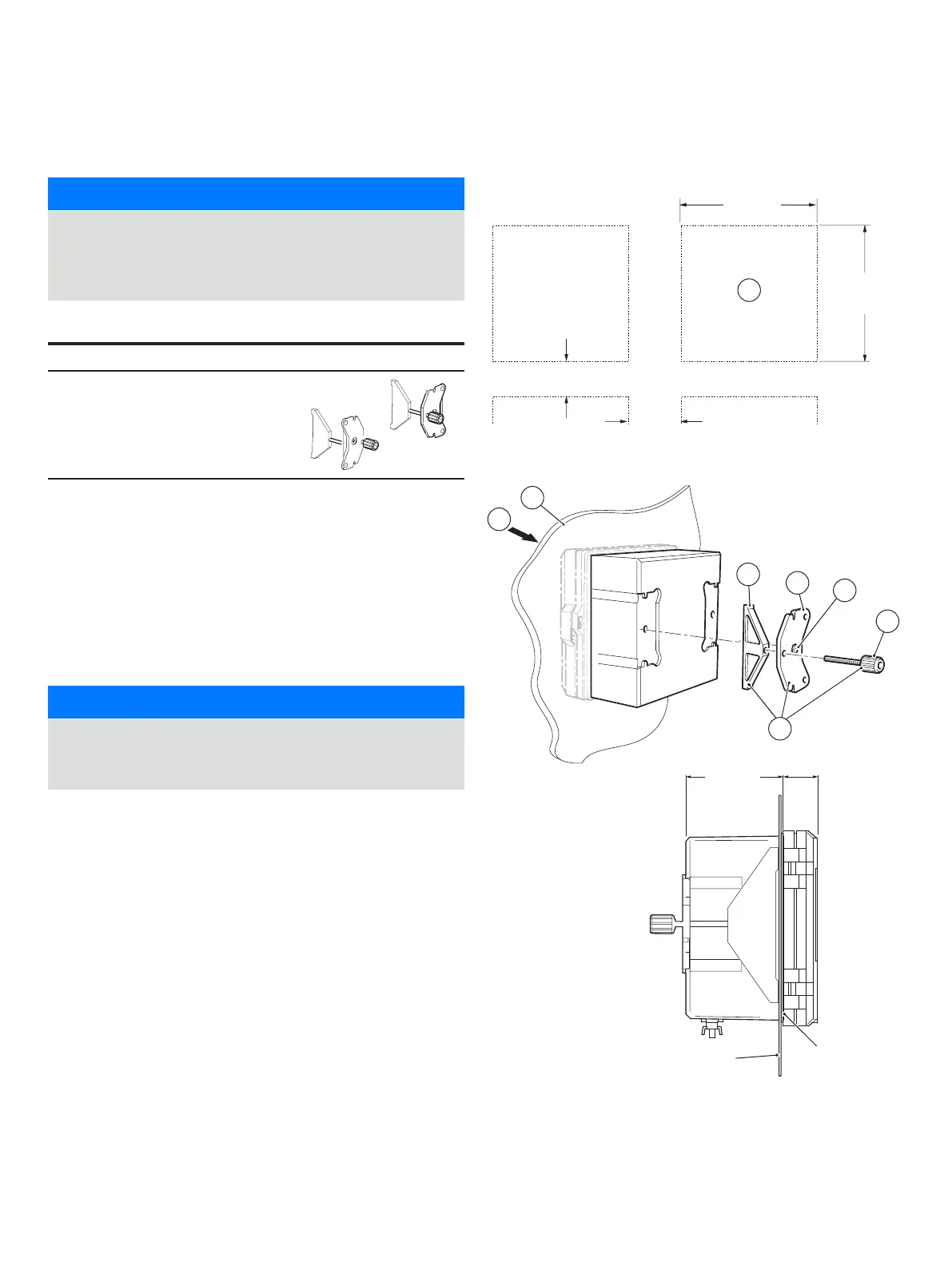

Figure 9 Panel-mounting the transmitter
A
B
C
D
E
F
A
G
Gasket
Panel cut-out dimensions (glands not fitted)
73 (2.87)
+0.04
+0.04
30
